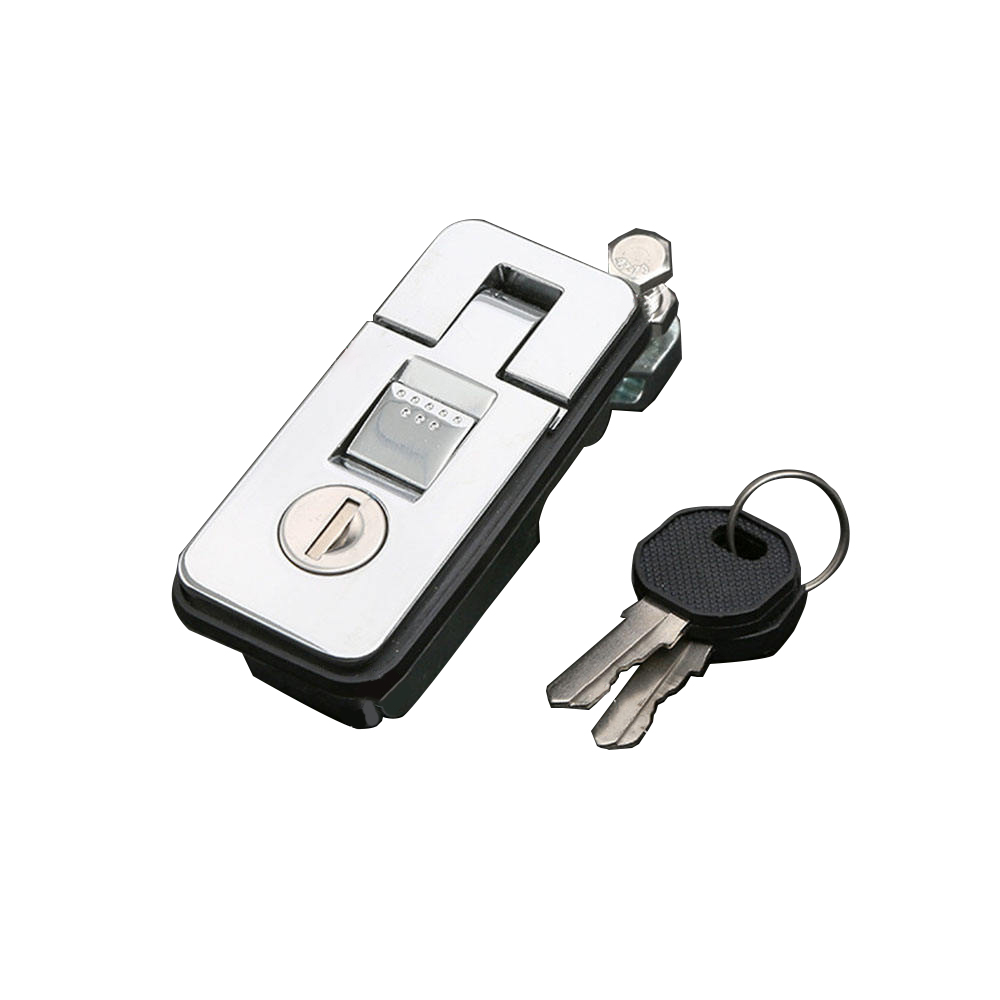

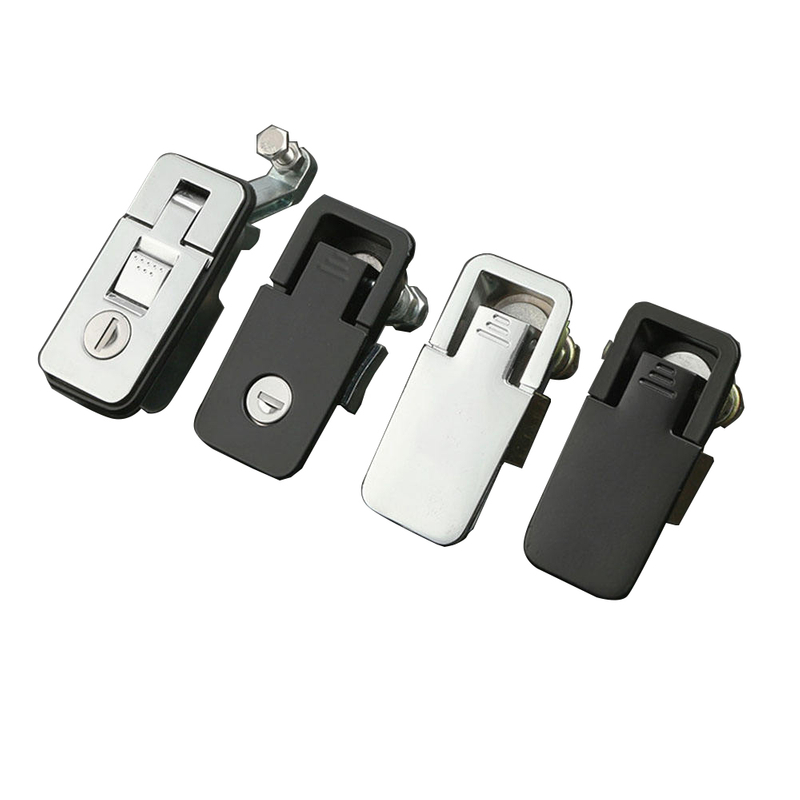

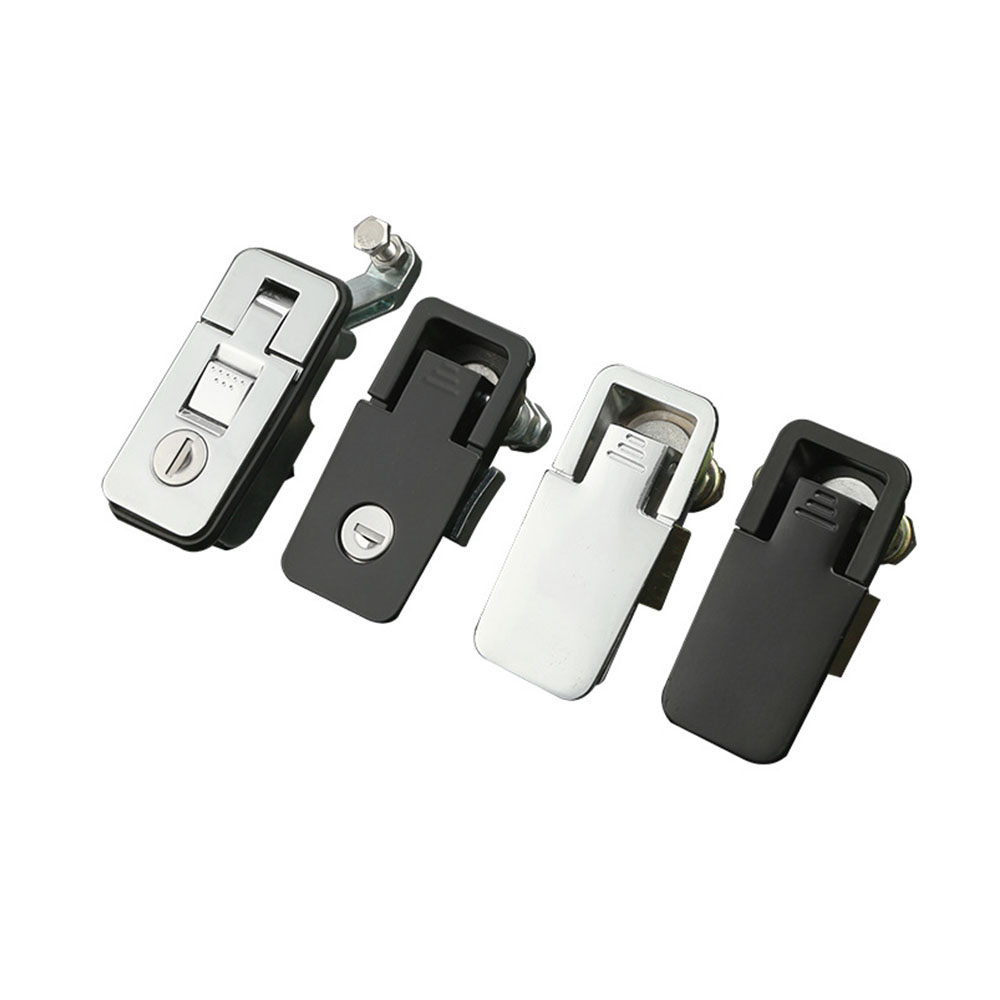

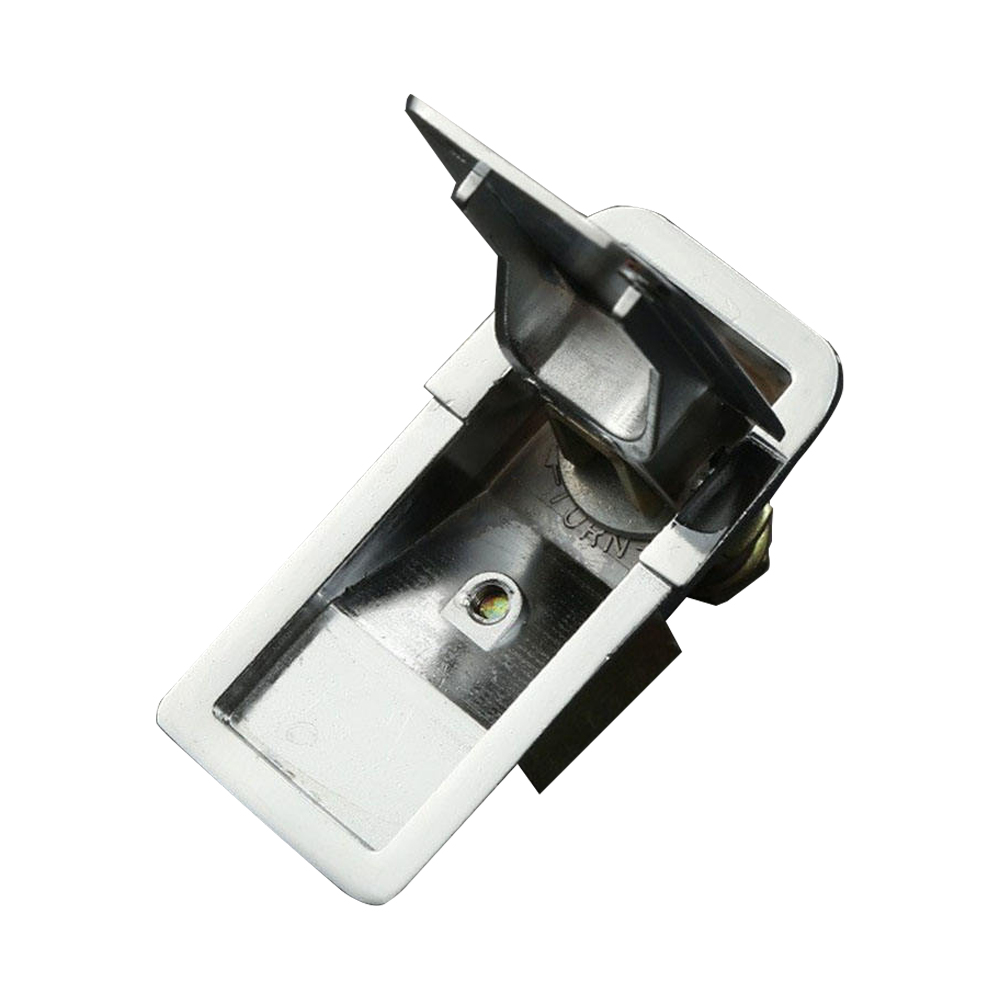

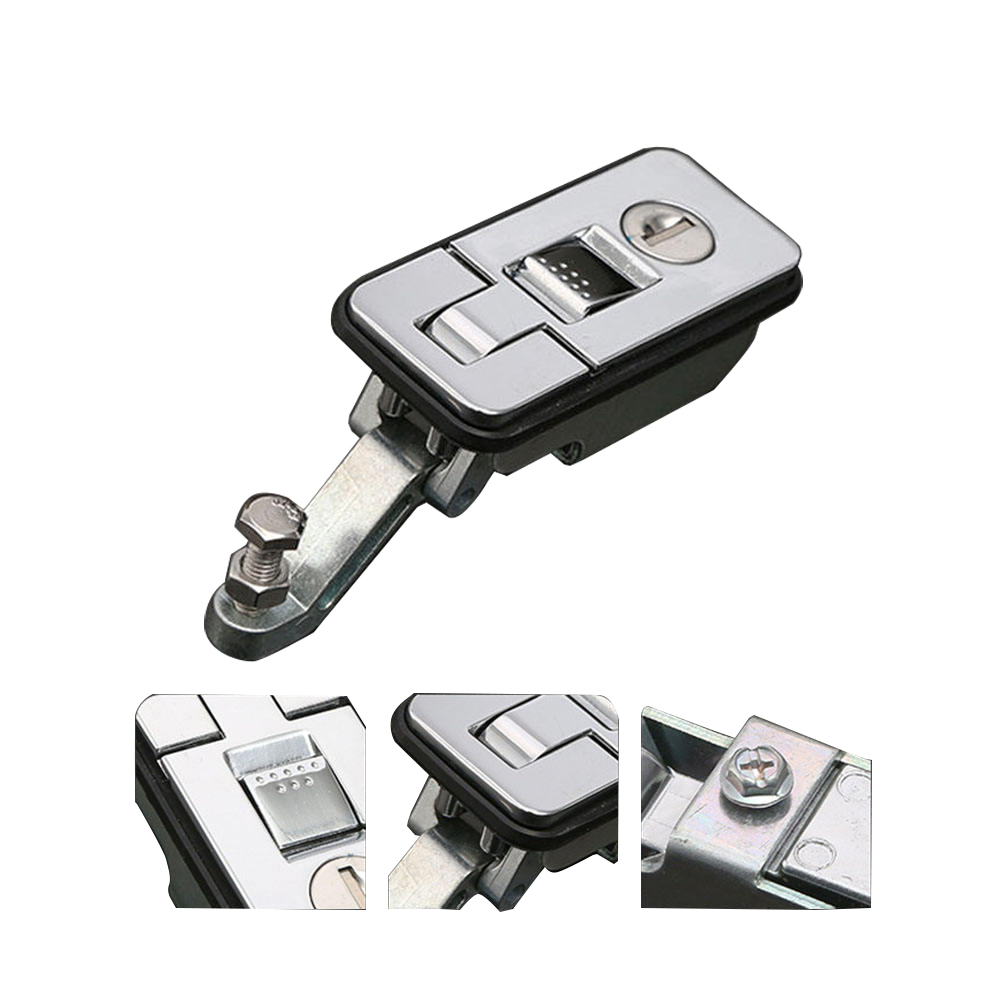

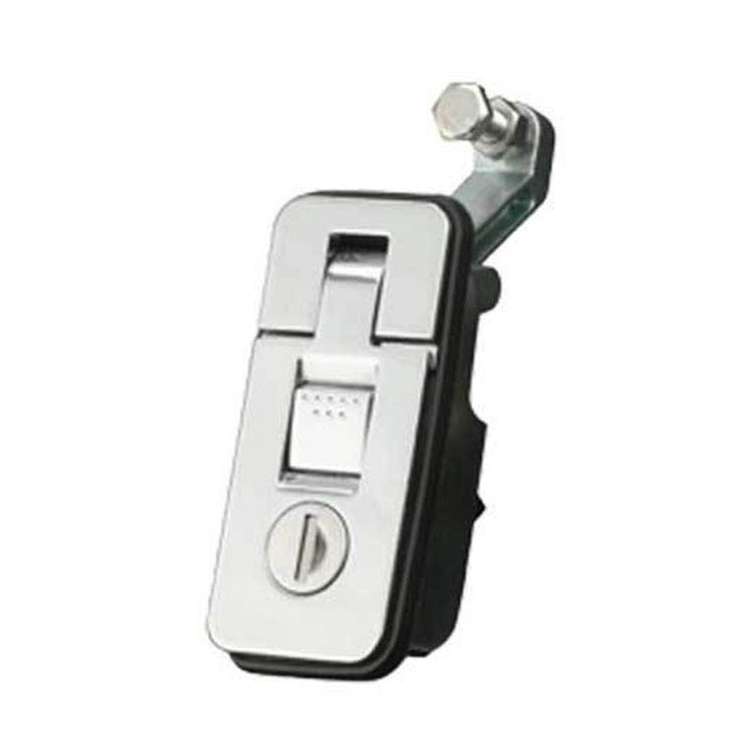

MS718 Plane Door Lock

‌1. Core Design & Material Composition‌

‌Premium Zinc Alloy Components‌: The ‌MS718 Plane Door Lock‌ features a zinc alloy base, handle, lock core, and button, providing exceptional resistance to corrosion and mechanical wear.

‌Carbon Steel Screws‌: Reinforced with carbon steel screws (white zinc-plated), ensuring secure fastening and resistance to rust.

‌Surface Finish‌:

‌Spray Plastic (Black Light)‌: Applied to the base, handle, and button for a sleek appearance and enhanced scratch resistance.

‌White Zinc-Plated Screws‌: Added protection against environmental degradation.

‌2. Key Technical Specifications‌

‌Adjustable Installation‌:

Adjusting screws accommodate varying spacing ranges, enabling flexible installation on doors or panels with thicknesses up to ‌24mm‌.

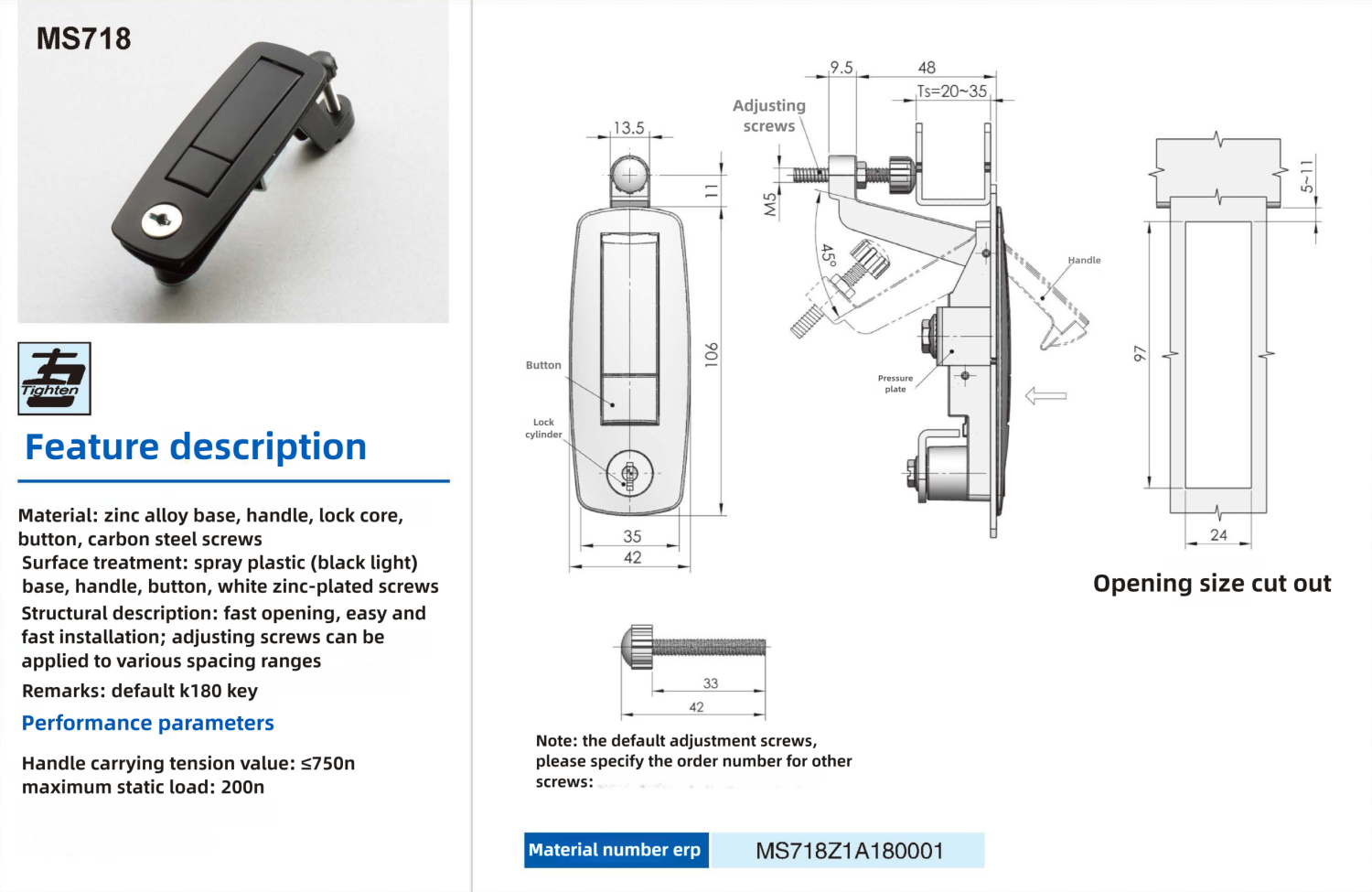

‌Opening Size Requirements‌:

Width: ‌57mm‌

Height: ‌97mm‌

Depth: ‌24mm‌

‌Mechanical Performance‌:

‌Handle Carrying Tension‌: ≤750N, ensuring reliable operation under frequent use.

‌Maximum Static Load‌: 200N, suitable for high-stress applications.

‌Default Keys‌: Includes ‌K180 keys‌ for immediate usability and security.

‌3. Versatile Applications‌

The ‌MS718 Plane Door Lock‌ is ideal for:

‌Industrial Cabinets‌: Secures toolboxes, electrical panels, and machinery enclosures.

‌Commercial Doors‌: Provides robust access control for offices, warehouses, and retail spaces.

‌Residential Use‌: Enhances security for furniture, sliding doors, and storage units.

‌4. Installation & Maintenance Advantages‌

‌Quick Installation‌: Pre-drilled holes and ergonomic adjusting screws minimize setup time.

‌Low Maintenance‌: Corrosion-resistant materials reduce the need for frequent upkeep.

‌Compatibility‌: Works seamlessly with standard door/cabinet cutouts, ensuring broad applicability.

‌5. Why Choose the MS718 Plane Door Lock?‌

‌Durability‌: Zinc alloy and carbon steel construction withstand harsh environments.

‌User-Friendly Design‌: Adjustable screws and intuitive installation cater to both professionals and DIY users.

‌Cost-Effective‌: Long service life and minimal maintenance lower total ownership costs.

‌MS718 Plane Door Lock‌

Material Codes:

Base/Handle/Core/Button: Zinc Alloy

Screws: Carbon Steel (White Zinc-Plated)

‌MS718 Plane Door Lock‌

Performance Metrics:

Handle Tension: ≤750N

Static Load Capacity: 200N

Key Type: K180 Default Keys

‌Keywords‌: MS718 Plane Door Lock, adjustable cam lock, industrial cabinet security

For CAD drawings, bulk orders, or custom configurations, contact our team to tailor the ‌MS718 Plane Door Lock‌ to your specific requirements.
