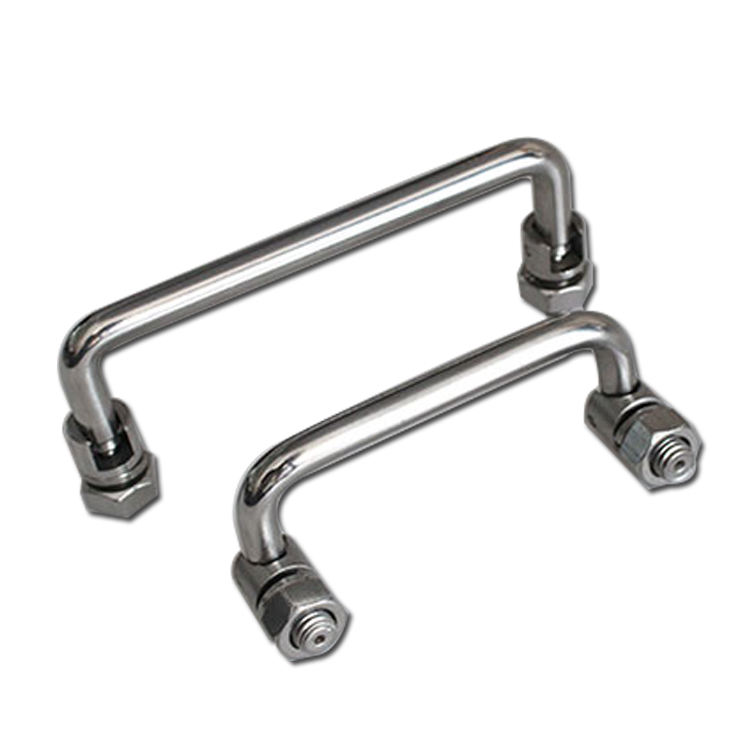

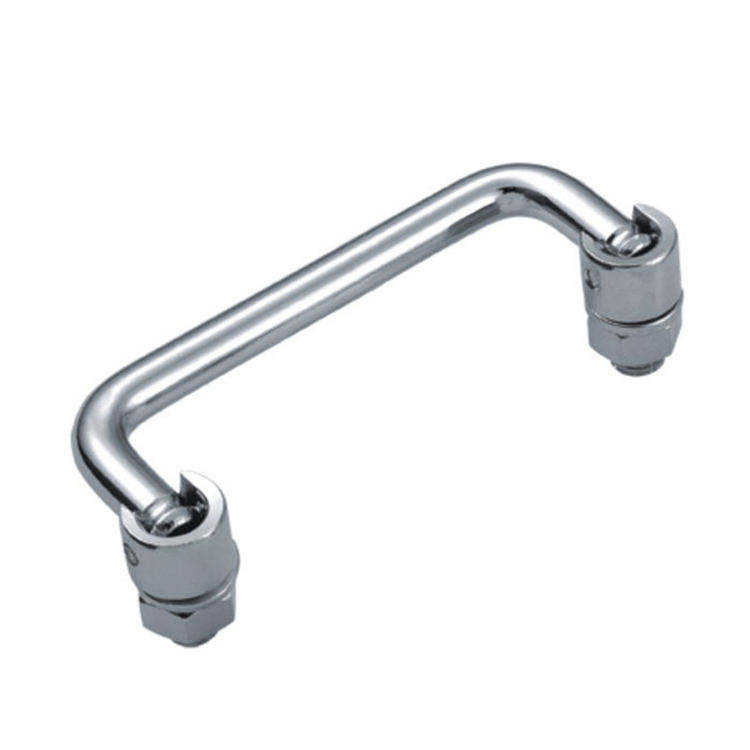

Stainless Steel Pull Handle – LS506
Precision Engineered for Durability & Performance
Product Overview
The LS506 Stainless Steel Pull Handle combines robust construction with ergonomic design, ideal for heavy-duty industrial and commercial applications. Featuring corrosion-resistant stainless steel or glossy chrome-plated carbon steel variants, this handle ensures longevity under demanding conditions. Precision-machined to exact tolerances, it offers seamless installation and reliable performance with a maximum static load of 1200N (L=90mm).
Key Features & Benefits
✅ Superior Material
Stainless Steel Option: High-grade 304/316 stainless steel for exceptional rust and corrosion resistance.

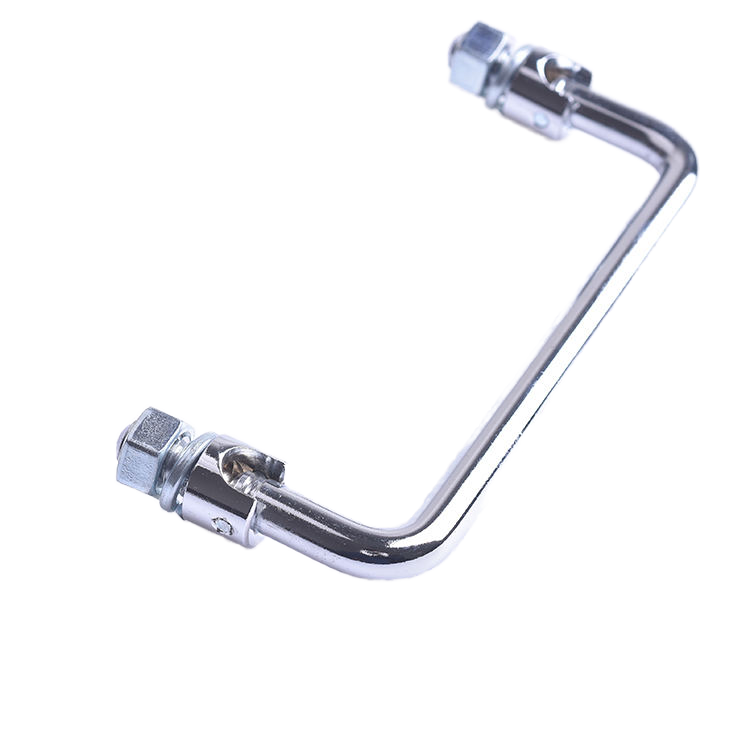

Carbon Steel Option: Chrome-plated surface enhances durability and aesthetic appeal.
✅ Precision Engineering
CNC-machined for dimensional accuracy (±0.5mm tolerance).

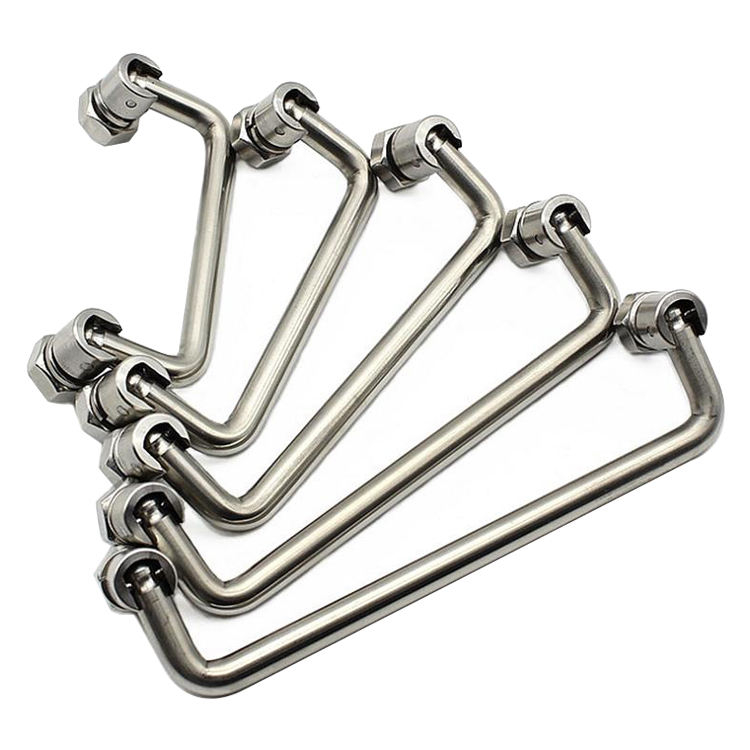

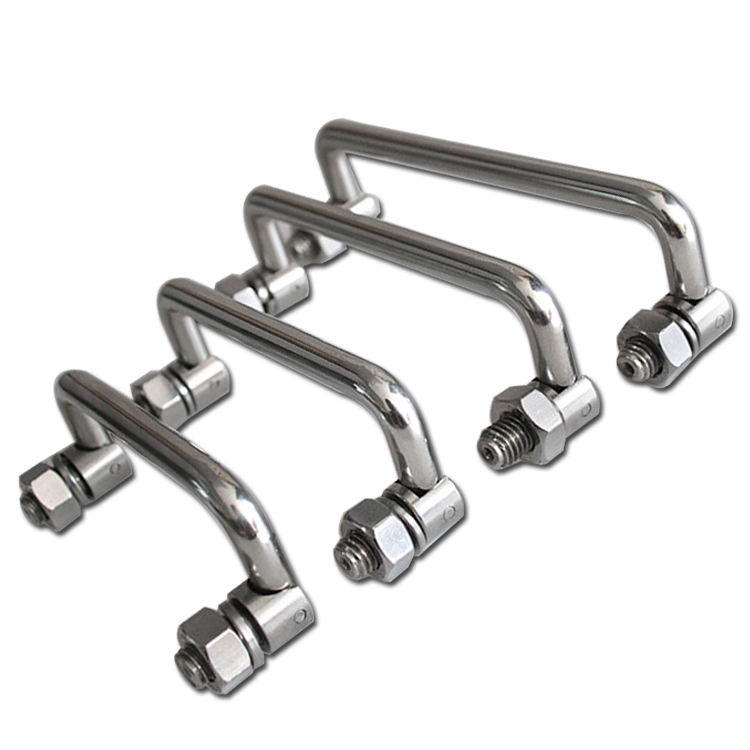

Customizable lengths (L=55–160mm) to fit diverse applications.
✅ Heavy-Duty Performance
Supports up to 1200N static load (L=90mm variant).

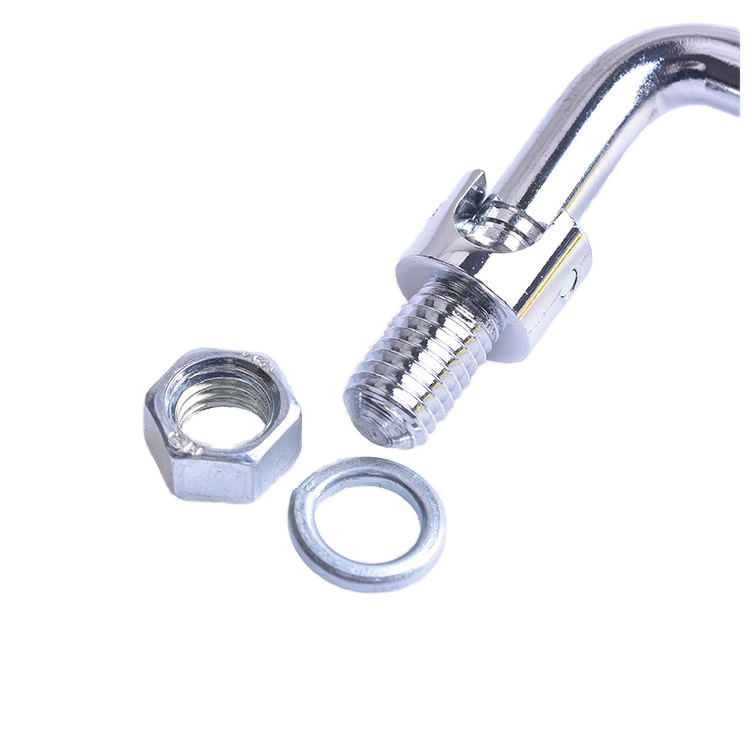

Reinforced screw holes (M6/M8.8) for secure mounting.
✅ Easy Installation
Precisely designed cutout dimensions (E=5–16mm) for hassle-free integration.
Modular design adapts to machinery, cabinets, or equipment panels.
✅ Wide Compatibility
Multiple product codes (e.g., LS506-F90, LS506S4A100001) for flexible sourcing.
Technical Specifications
Parameter | Value (Stainless Steel) | Value (Carbon Steel) |
Material | 304/316 Stainless Steel | Chrome-Plated Carbon Steel |
Load Capacity | 1200N (L=90mm) | 1200N (L=90mm) |
Length (L) | 55–160mm (±0.5mm) | 55–160mm (±0.5mm) |
Cutout (E) | 5–16mm | 5–16mm |
Screw Holes | M6 / M8.8 | M6 / M8.8 |
Finish | Polished metallic | Glossy chrome |

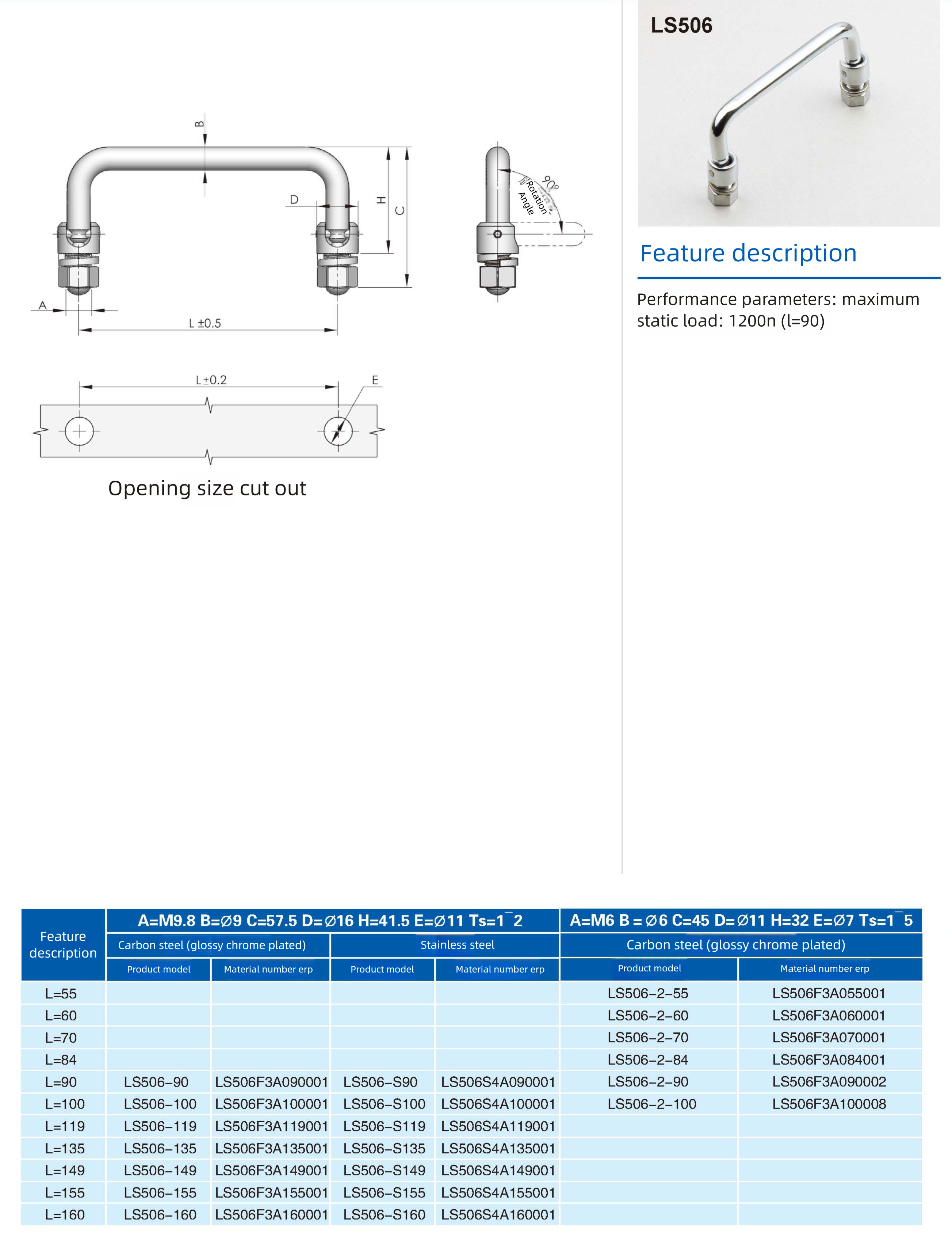

(Detailed dimensional diagrams included in product images.)
Applications
Industrial Machinery: Control panels, CNC equipment, and heavy-duty enclosures.
Commercial Cabinetry: Drawers, server racks, and laboratory fixtures.
Transportation & Marine: Corrosion-resistant solution for harsh environments.
Medical & Food Processing: Hygienic stainless steel for cleanroom compliance.
Production Process
Material Selection: High-quality stainless steel/carbon steel sourced for optimal strength.
CNC Machining: Computer-controlled precision cutting and drilling for consistent tolerances.
Surface Treatment: Polishing (stainless steel) or chrome plating (carbon steel) for enhanced finish.
Quality Control: Rigorous checks for load capacity, dimensional accuracy, and surface defects.
Why Choose LS506?
✔ Corrosion-Resistant: Ideal for humid or chemical-exposed environments.
✔ Ergonomic Grip: Smooth edges and balanced weight for user comfort.
✔ Modular Flexibility: Multiple sizes and materials to match project needs.
✔ Certified Reliability: Manufactured under ISO standards for guaranteed performance.
Order Now
Select your preferred variant (e.g., LS506-F90 for stainless steel, LS506F3A100001 for carbon steel) and customize length to suit your requirements.
For bulk orders or OEM specifications, contact our sales team.
