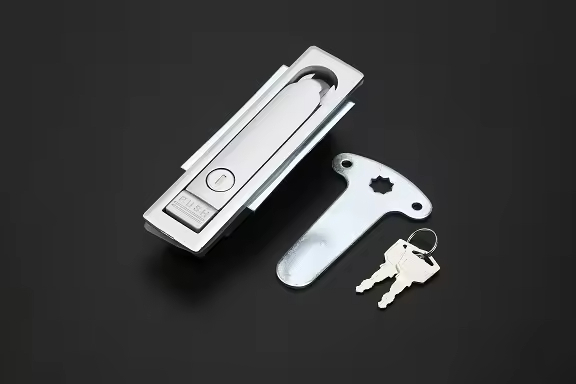

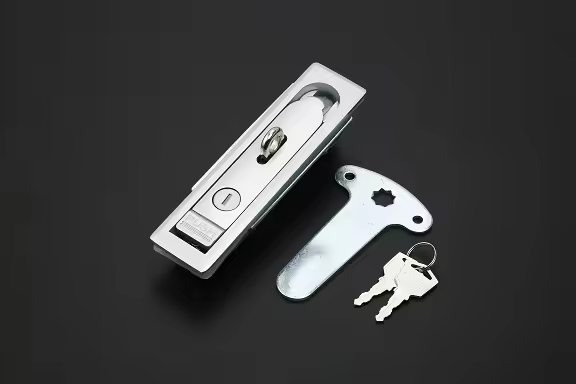

MS712 Industrial Plane Lock

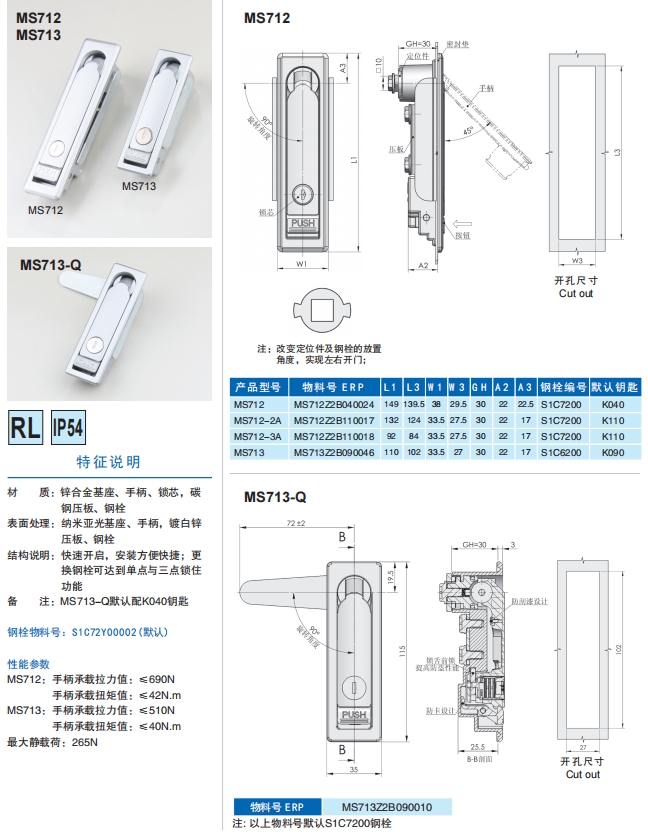

MS712 / MS713 Industrial Plane Lock – High-Strength Flush Handle Lock with IP54 Protection

Product Overview

The MS712 and MS713 series Industrial Plane Locks are designed for industrial cabinets, electrical enclosures, and machinery doors, providing reliable security, durability, and ease of use. Made from zinc alloy die-casting with a polished chrome-plated surface, these locks combine a sleek appearance with strong anti-corrosion performance. With an IP54 protection rating, the locks are resistant to dust and splashing water, making them suitable for demanding industrial environments.

The series also includes the MS713-Q variant, equipped with a foldable handle for more convenient operation.

Material & Surface Treatment

* Lock body and handle: Zinc alloy die-cast, polished chrome finish

* Lock core: Zinc alloy, chrome-plated for durability

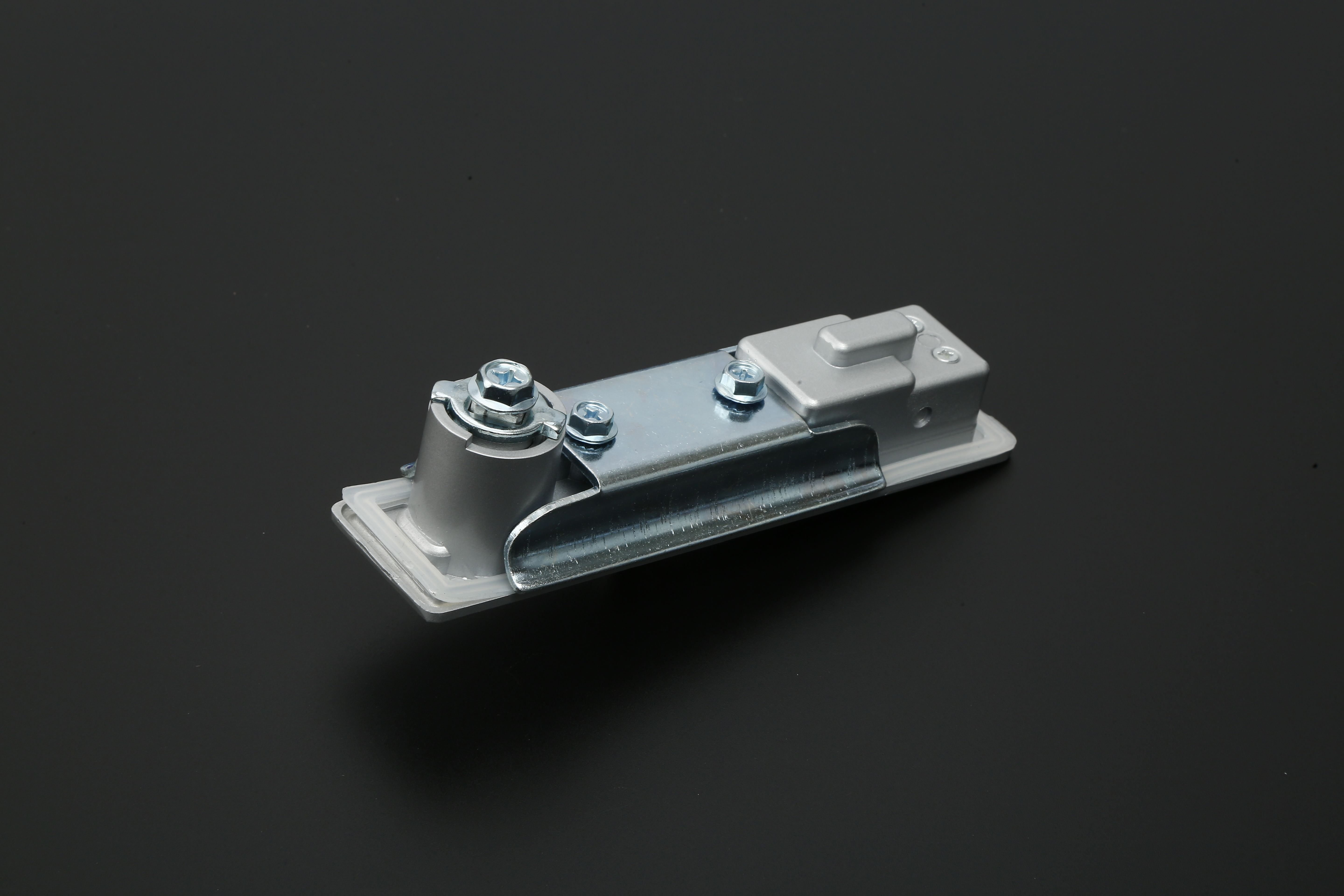

* Cam (lock tongue): Carbon steel, zinc-plated for rust resistance

* Other parts: Hardened steel shaft, stainless steel fasteners

Key Features & Advantages

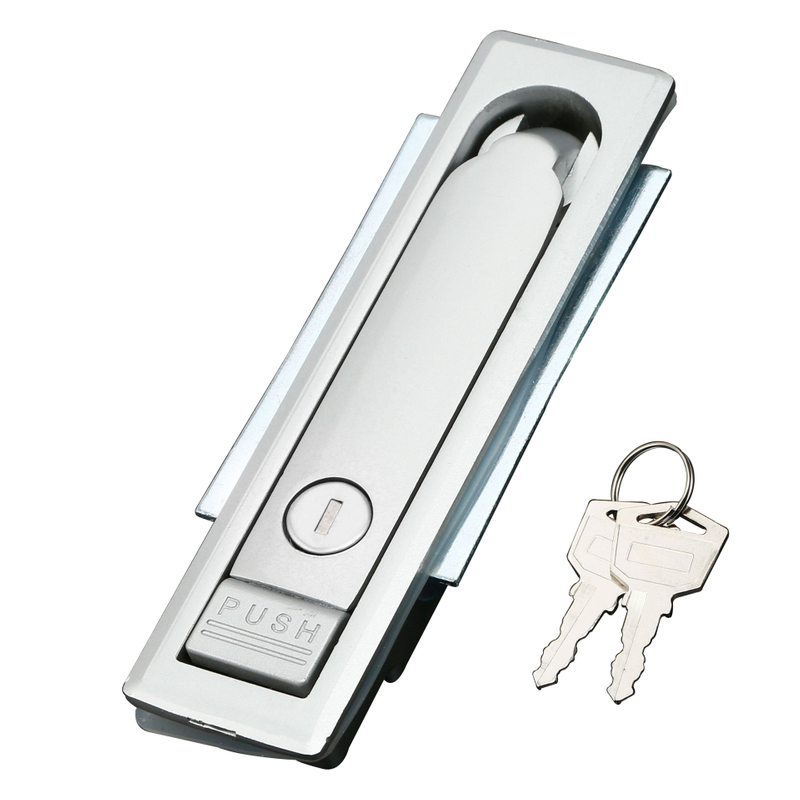

* Flush-mounted design for safety and modern industrial aesthetics

* Push-to-open operation for convenient and efficient access

* Left or right opening installation options by adjusting cam and internal parts

* Strong load capacity ensures reliable locking for heavy-duty enclosures

* Water and dust resistant (IP54), suitable for semi-outdoor and industrial environments

* Optional foldable handle (MS713-Q) for ergonomic operation and compact storage

Performance Parameters

MS712:

* Handle ultimate tensile strength: ≤690N

* Handle allowable torque: ≤42N·m

* Maximum static load: 510N

MS713:

* Handle ultimate tensile strength: ≤420N

* Handle allowable torque: ≤40N·m

* Maximum static load: 265N

Applications

The MS712 and MS713 Industrial Plane Locks are widely used in:

* Electrical distribution cabinets

* Industrial control panels

* Machinery and automation equipment doors

* Communication and network equipment enclosures

* Transport and storage equipment

Product Advantages

* High-strength zinc alloy structure with chrome finish for durability and corrosion resistance

* Push-to-open mechanism for quick and efficient access

* IP54 protection ensures dust and splash resistance in industrial environments

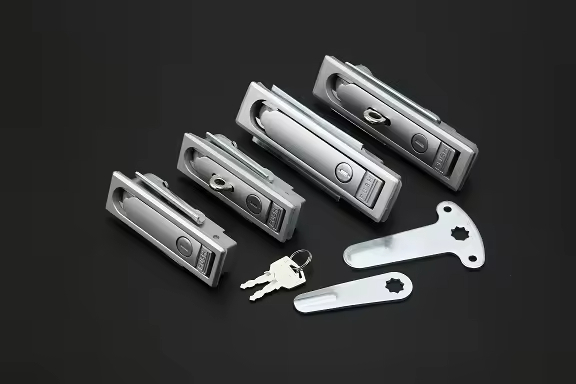

* Available with multiple cam types for flexible installation

* Foldable handle option (MS713-Q) for user convenience and space-saving design
