MS868 Industrial Door Handles Lock

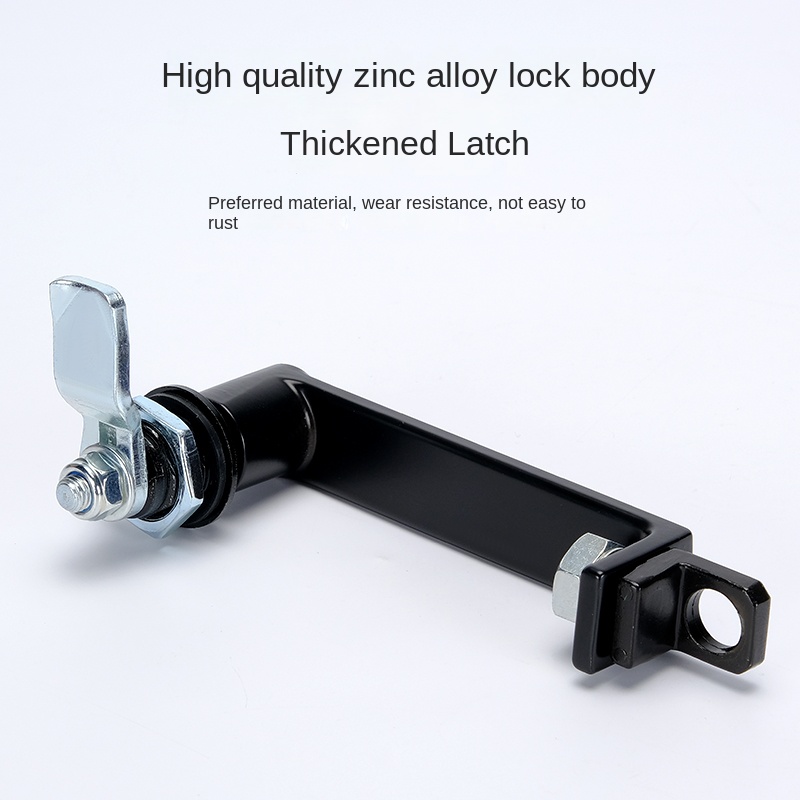

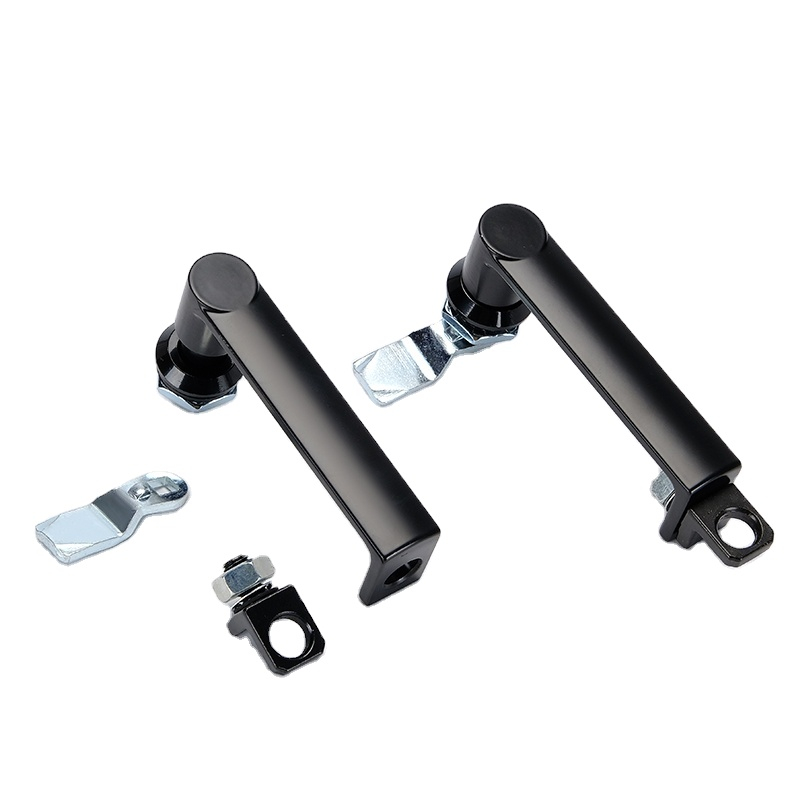

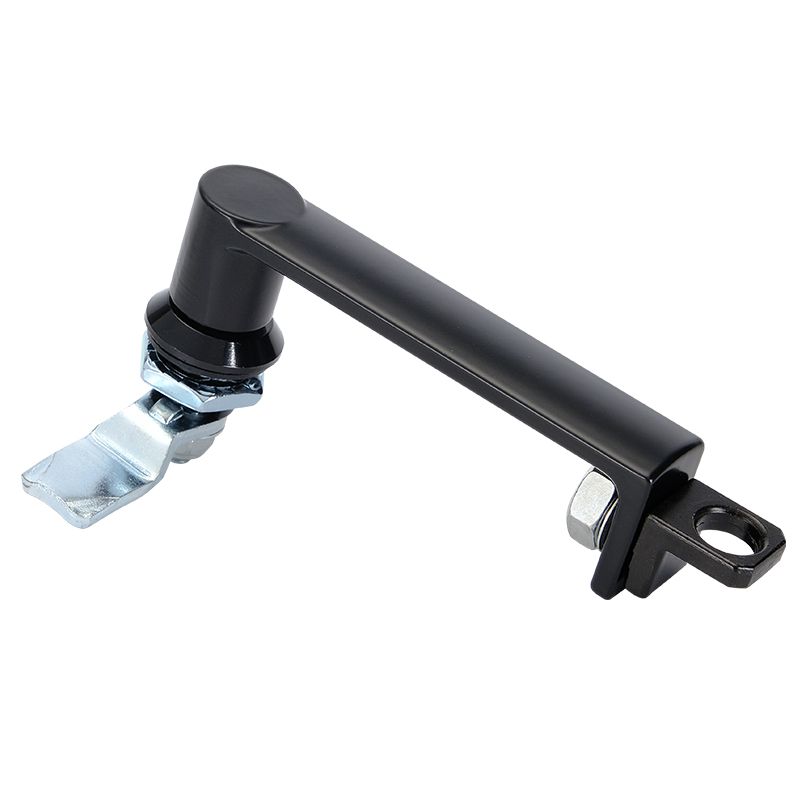

The MS868 handle lock is a mechanical panel lock designed for secure access control in industrial and commercial environments. Here’s a detailed overview of its specifications, dimensions, and applications:

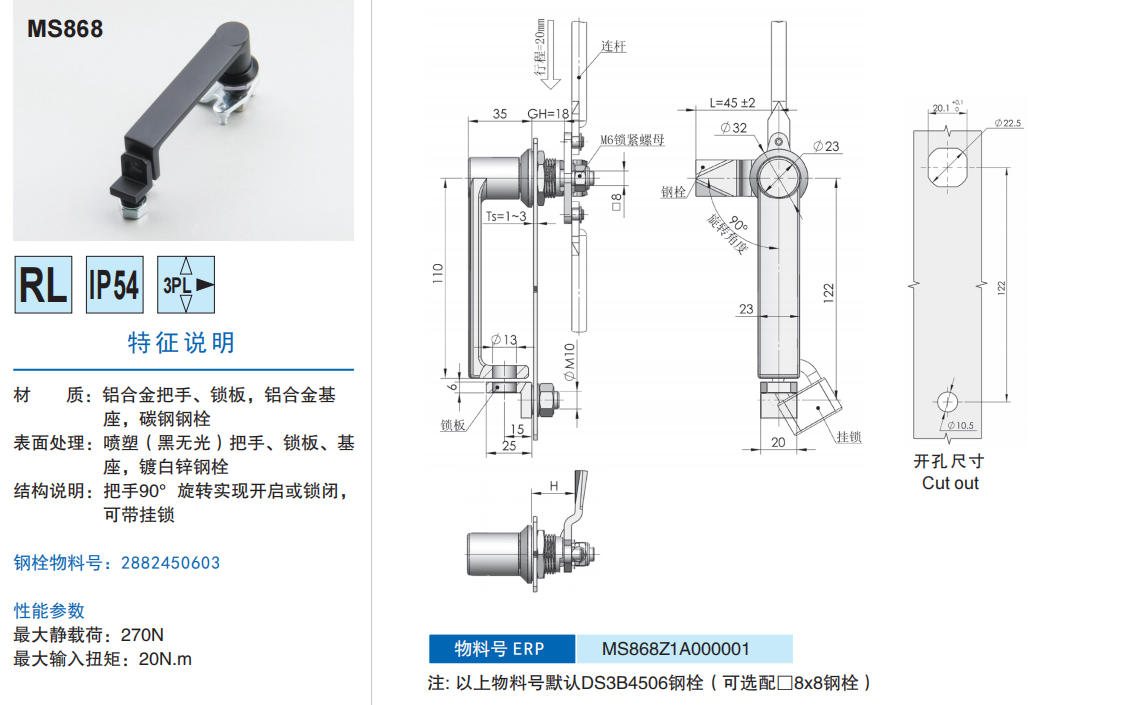

Key Specifications

• ‌Model‌: MS868

• ‌Material‌: Aluminum alloy handle and lock plate, aluminum alloy base, carbon steel bolt

• ‌Surface Treatment‌: Black anodized handle and lock plate, base; Chrome-plated steel bolt

• ‌Structure‌: 90° handle rotation for lock engagement/disengagement, with keyhole functionality

• ‌Performance Parameters‌: Maximum static load 270N, maximum input torque 20N·m

• ‌Bolt Specification‌: Steel bolt (part number: 2882450603)

• ‌ERP Material Number‌: MS868Z1A000001

• ‌Note‌: Default bolt is DS3B4506; optional 8×8 bolt available

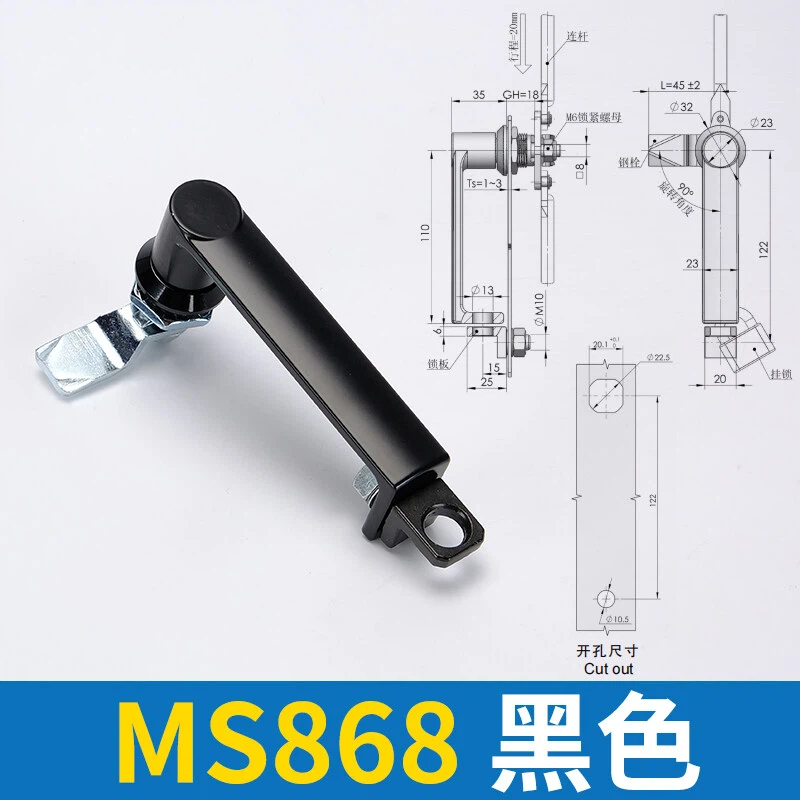

Critical Dimensions

• ‌Overall Dimensions‌: Handle length ~110mm, lock body height ~23mm, base width ~32mm

• ‌Cutout Requirements‌: Panel cutout diameter Φ13mm, lock body installation hole diameter Φ20mm

• ‌Installation Hole Pitch‌: Horizontal 35mm, vertical 25mm (per installation diagram)

• ‌Bolt Projection‌: 8mm (default), optional 10mm

Applications & Compatible Equipment

• ‌Core Application Areas‌: Industrial control cabinets (distribution boxes, server cabinets, automation control cabinets), engineering machinery (cab doors, maintenance doors of excavators, cranes), commercial vehicles (cargo doors, toolboxes of box trucks, special-purpose vehicles)

• ‌Compatible Door Types‌: 3-30mm thick metal sheets (cold-rolled steel, aluminum alloy), requiring standard keyhole machining, supporting left/right door opening directions

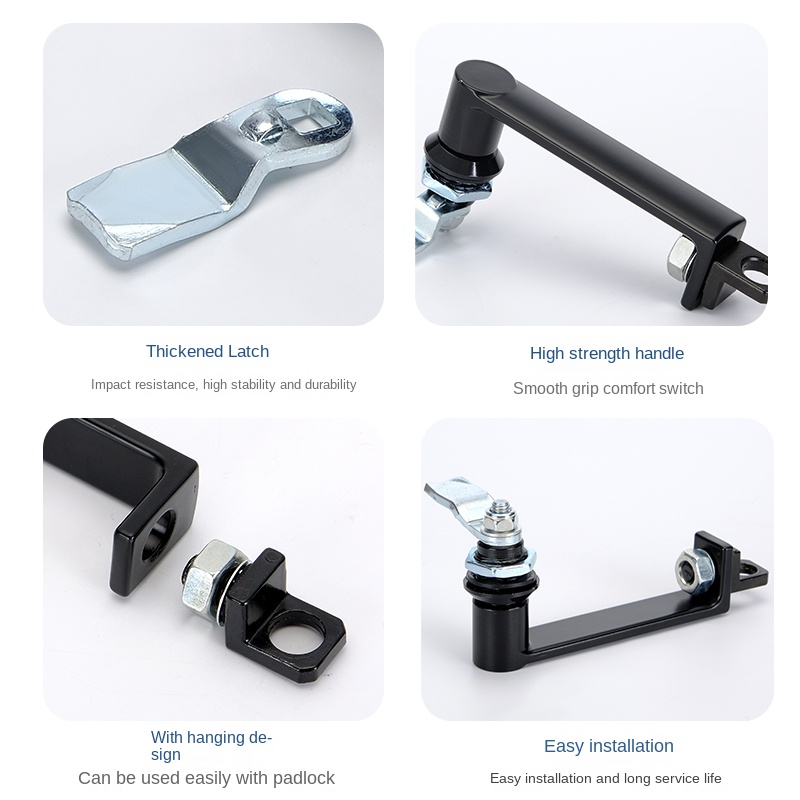

Product Structure & Functional Features

• ‌Mechanical Transmission‌: 90° handle rotation actuates lock bolt, with anti-creep function

• ‌Accessories‌: Standard base plate (fixes lock body to door), optional bolt types (e.g., 8×8 bolt)

• ‌Installation Flexibility‌: Bolt type and handle direction can be adjusted as needed

Selection & Usage Tips

• ‌Model Matching‌: Select based on bolt type (e.g., default DS3B4506 or optional 8×8 bolt) to ensure compatibility with door keyholes

• ‌Environmental Suitability‌: Suitable for dry, moderate corrosion environments; humid or outdoor use recommends stainless steel upgrade

• ‌Installation Notes‌: Ensure lock body perpendicular to door to avoid bolt jamming; securely fix base plate to prevent loose lock performance

The MS868 handle lock combines mechanical reliability, multi-bolt adaptability, and high-strength materials, making it a common choice for industrial equipment lockout applications, especially in scenarios requiring high security and durability.
