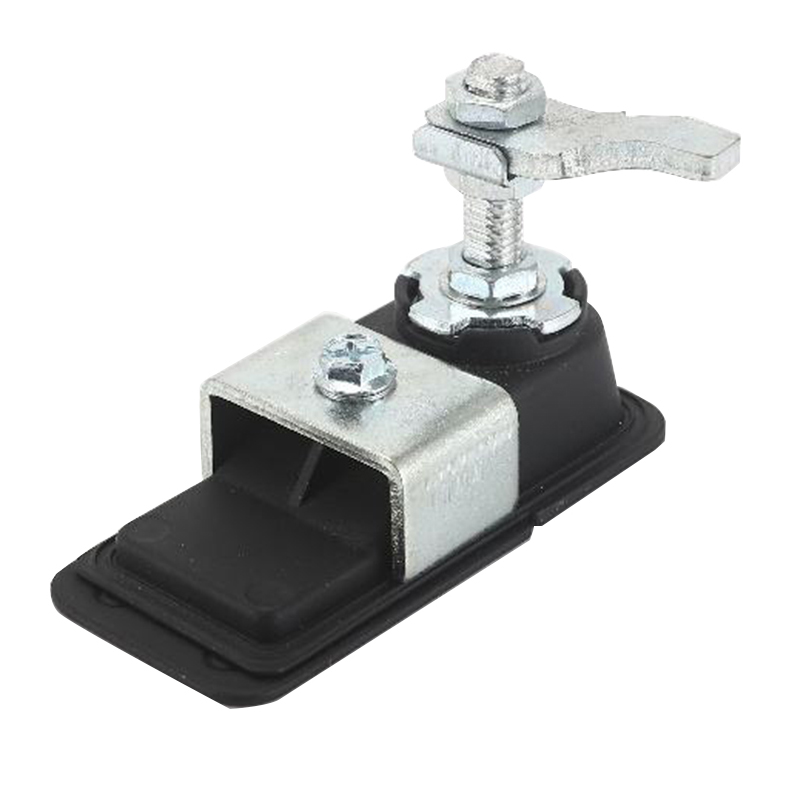

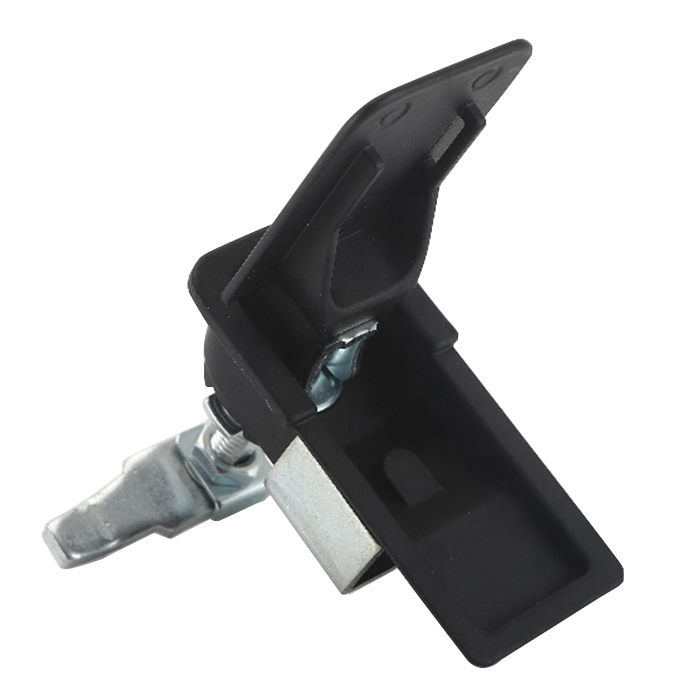

MS726-1 Zinc Die Casting Plane Lock

‌1. Material Composition & Durability‌

· ‌Zinc Alloy Construction‌: The ‌MS726-1 Zinc Die Casting Plane Lock‌ utilizes a zinc alloy base and handle, ensuring lightweight yet robust resistance to corrosion and mechanical stress.

· ‌Carbon Steel Components‌: Reinforced with a carbon steel pressure plate and a steel bolt (default material: s1k45n13) for superior strength.

· ‌Surface Protection‌:

· Steel bolt treated with ‌white zinc plating‌ to enhance corrosion resistance and extend service life.

‌2. Structural Design & Adjustability‌

· ‌Quick Opening Mechanism‌: Engineered for rapid operation, reducing time and effort during frequent use.

· ‌Telescopic Functionality‌: The lock features adjustable nuts for precise control over stop ranges, accommodating varying installation requirements.

· ‌Easy Installation‌: Pre-configured design allows for fast assembly without specialized tools.

3. Performance Specifications‌

· ‌Load Capacity‌:

· ‌Handle Carrying Tension‌: ≥420N, ensuring reliable performance under high-stress conditions.

· ‌Maximum Static Load‌: 400N, ideal for securing heavy-duty equipment or enclosures.

· ‌Opening Size Compatibility‌:

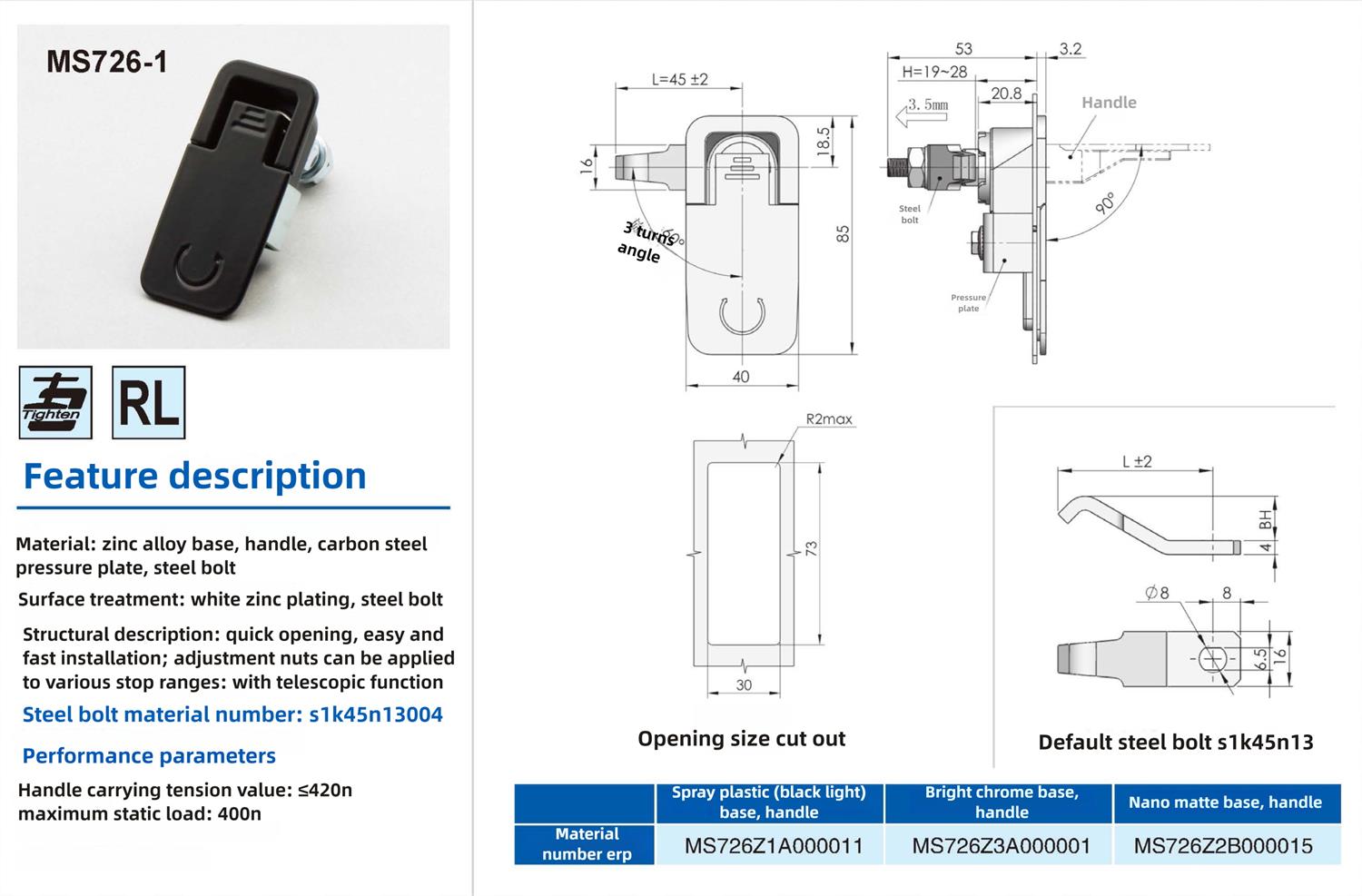

· Cut-out dimensions: ‌L=45±2mm, H=19–28mm‌, providing a universal fit for standard applications.

‌4. Key Applications‌

The ‌MS726-1 Zinc Die Casting Plane Lock‌ is perfect for:

· ‌Industrial Machinery‌: Secures access panels, toolboxes, and equipment enclosures.

· ‌Commercial Infrastructure‌: Used in warehouses, utility cabinets, and transportation systems.

· ‌Outdoor Environments‌: Corrosion-resistant materials make it suitable for marine, agricultural, or construction settings.

5. Competitive Advantages‌

· ‌Flexible Adjustments‌: Telescopic nuts and customizable stop ranges ensure adaptability to diverse installation scenarios.

· ‌Longevity‌: Zinc alloy and white zinc-plated components resist wear, rust, and environmental degradation.

· ‌Cost Efficiency‌: Low maintenance requirements and extended lifespan reduce total ownership costs.

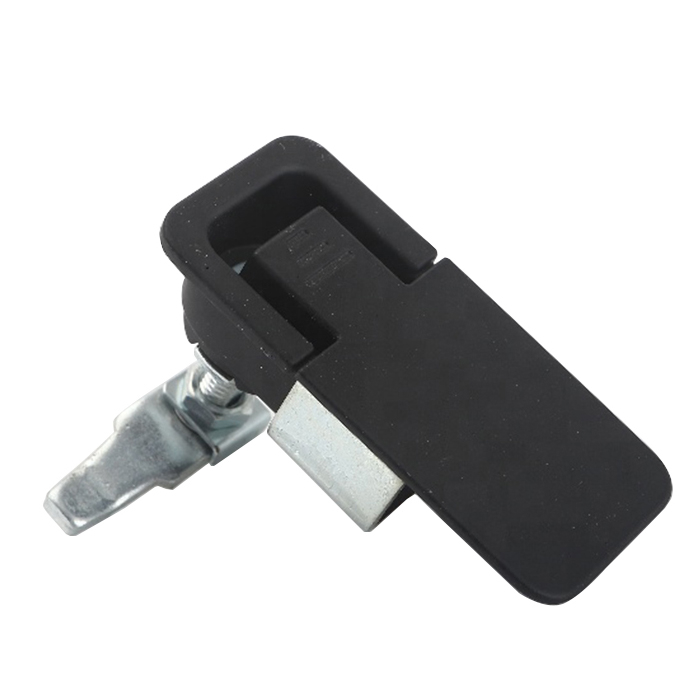

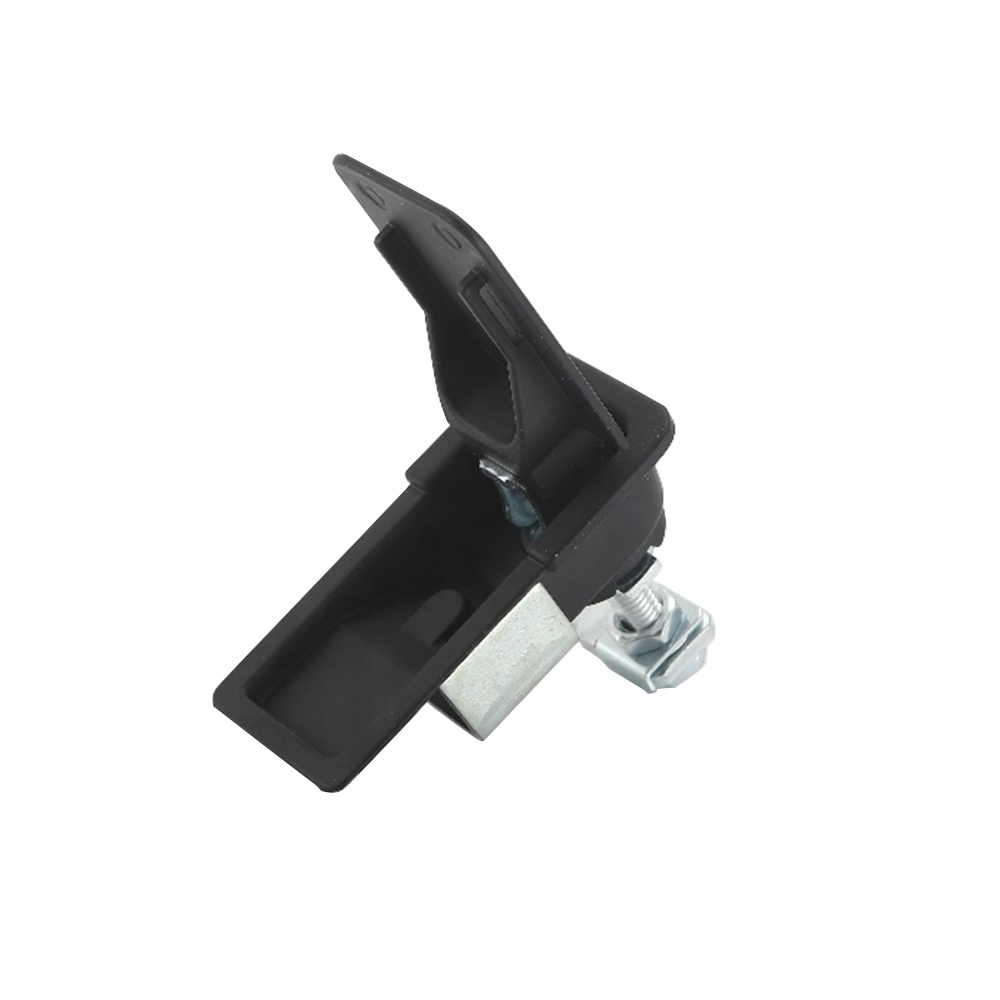

‌MS726-1 Zinc Die Casting Plane Lock‌
Material Codes:

· Base/Handle: Zinc Alloy

· Pressure Plate/Bolt: Carbon Steel (White Zinc-Plated)

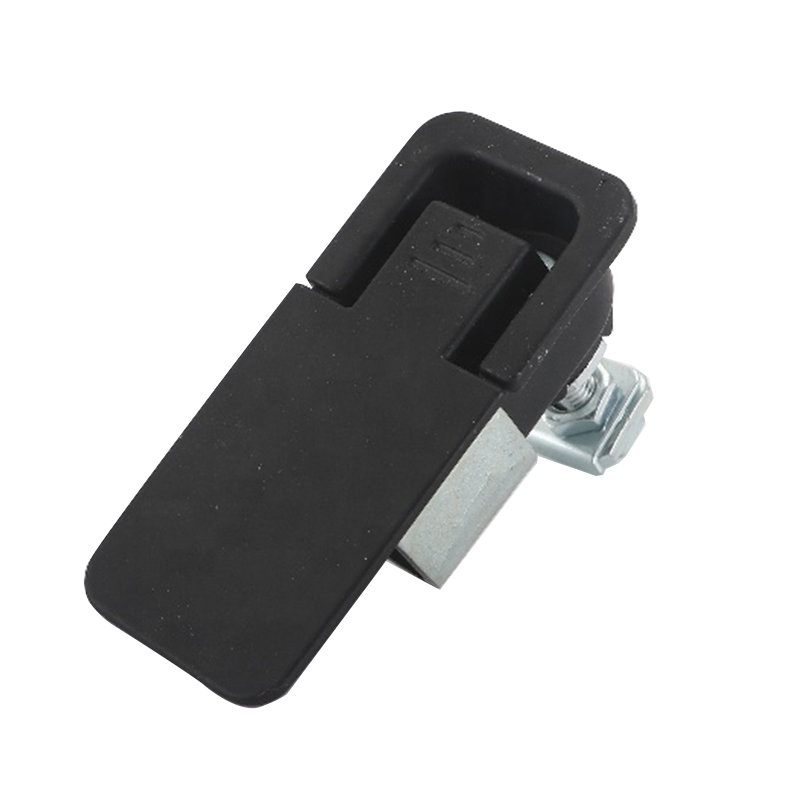

‌MS726-1 Zinc Die Casting Plane Lock‌
Performance Highlights:

· Handle Tension: ≥420N

· Static Load Capacity: 400N

· Bolt Material: s1k45n13

‌Keywords‌: MS726-1 Zinc Die Casting Plane Lock, heavy-duty adjustable lock

For custom configurations, bulk orders, or technical support, contact our team to leverage the full potential of the ‌MS726-1 Zinc Die Casting Plane Lock‌.
