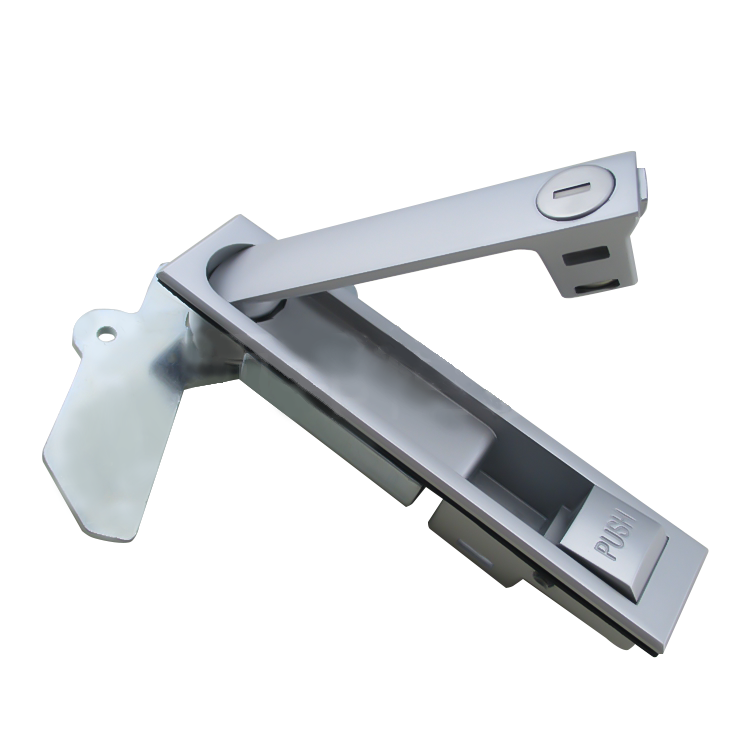

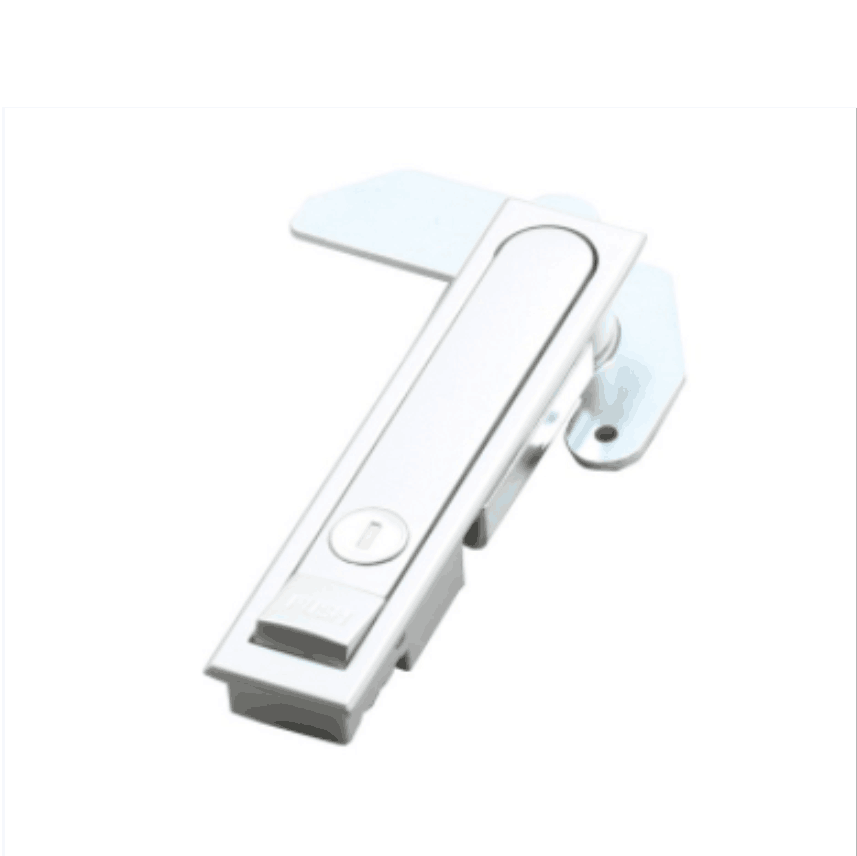

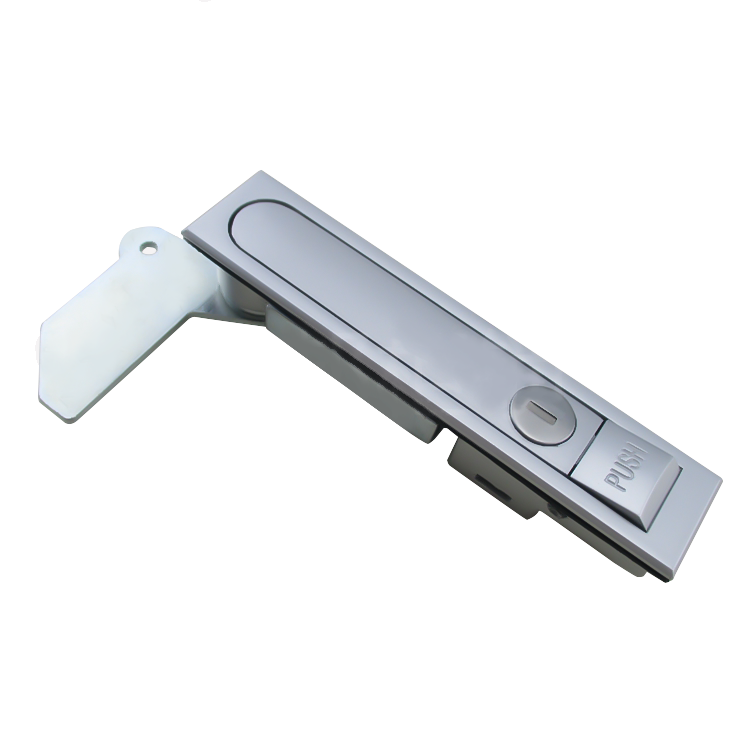

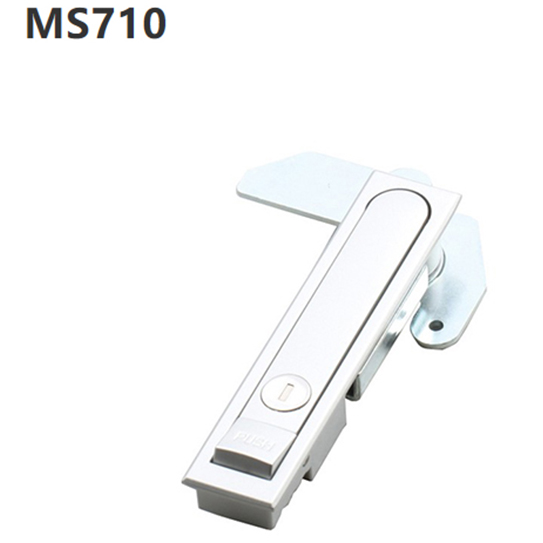

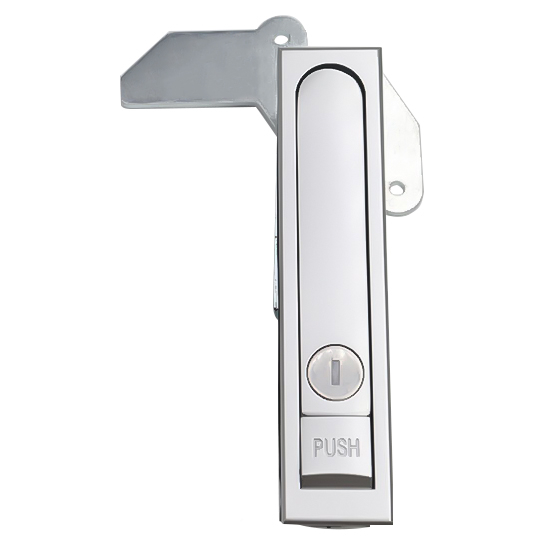

MS710 Nickel Plated Plane Lock

Core Features & Technical Specifications

Durable Construction:

Fabricated with a zinc alloy base and handle finished in a nano-matte nickel plating, offering superior corrosion resistance and scratch resistance for long-term reliability in humid or high-traffic environments .

Equipped with a dual-material pressure plate system: a carbon steel core for structural rigidity and a white zinc-plated plate to prevent wear from repeated tension adjustments.

Adjustable Locking Mechanism:

Features a 90°rotational cam for smooth, quarter-turn operation, enabling quick access without compromising security.

Supports dual-locking modes:

Single-point locking for lightweight cabinets.

Three-point locking (via optional steel belts) for heavy-duty applications, ensuring uniform pressure distribution across the cabinet door .

Enhanced Security Parameters:

Withstands up to 380N static load, tested for 10,000+ cycles of repeated use.

Includes adjustable torque settings(11 N·m recommended) to prevent overtightening or under-tightening during installation.

Universal Compatibility:

Designed for cabinets with 18–62mm height adjustability and a standardized 27mm cut-out dimension, ensuring seamless integration with Lexmark printer cabinets and similar systems .

Compatible with s3c62y00004 steel bolts and extendable belts (e.g., s3c6200d) for non-standard configurations.

Installation & Maintenance

Step-by-Step Guidance:

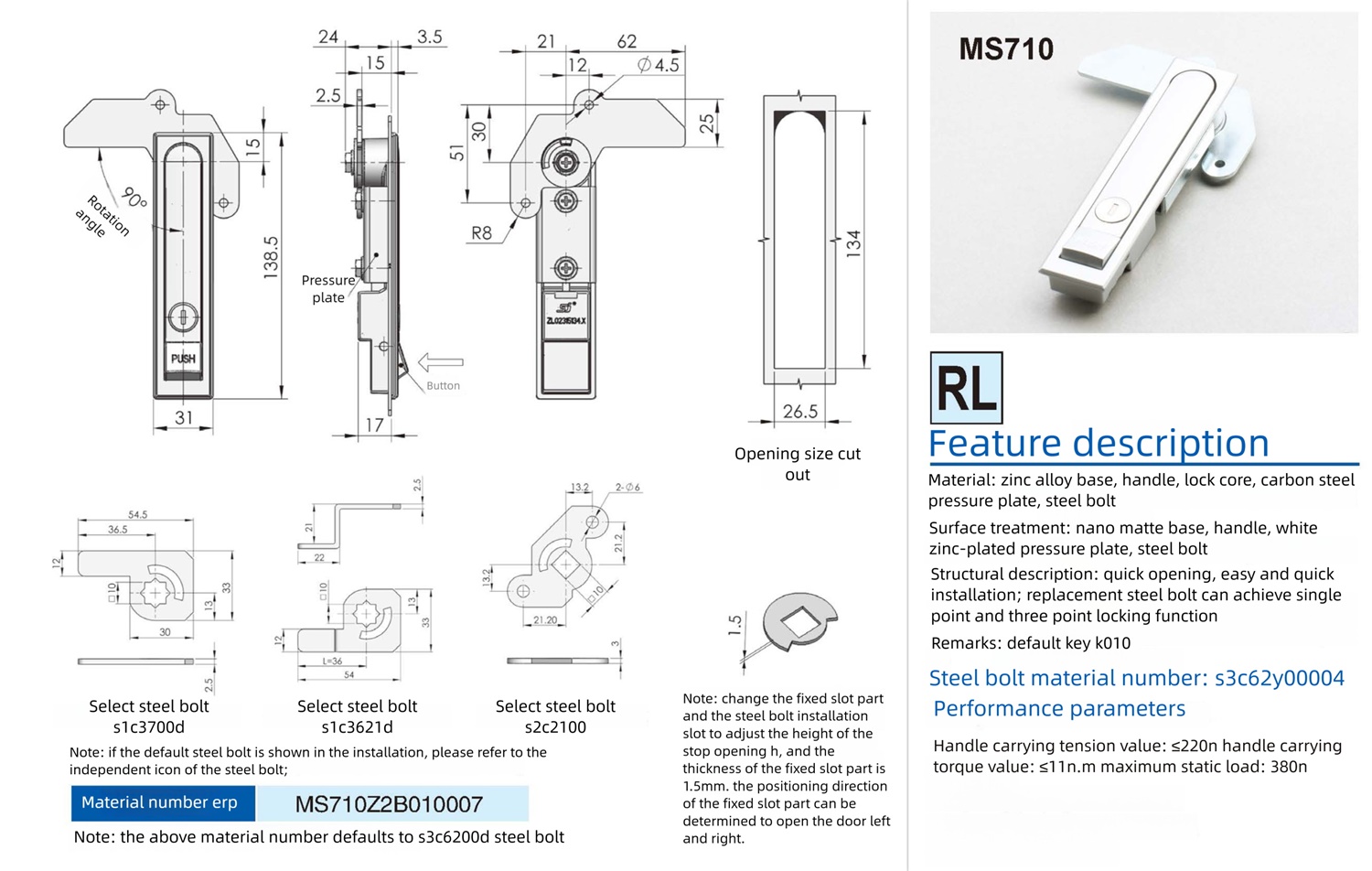

Labeled technical drawings (e.g., "RL," "R8") and diagrams simplify alignment during setup.

Critical measurements (e.g., 138.5mm length, 31mm width) are highlighted to avoid installation errors.

Low-Maintenance Design:

The nickel-plated surface resists tarnishing, reducing the need for frequent polishing.

Replaceable components (e.g., pressure plates, bolts) minimize downtime for repairs or upgrades.

Applications

The MS710 Nickel Plated Plane Lock is ideal for:

Commercial cabinets: Retail storage, medical supply units, and laboratory equipment.

Industrial enclosures: Machinery control panels and server racks requiring tamper-proof security.

Residential use: Home safes, toolboxes, and furniture with integrated locking needs.

By merging military-grade durability with user-centric design, this lock system redefines secure cabinetry solutions.  Its adaptability to Lexmark printer cabinets and other brands underscores its versatility, making it a future-proof investment for professionals and households alike.
