MS861 Electric Distribution Box Plane Bounce Lock

MS861 Electric Distribution Box Plane Bounce Lock – Product Overview

The MS861 Electric Distribution Box Plane Bounce Lock is a compact, high-precision mechanical locking solution designed specifically for electrical distribution cabinets, control panels, and industrial enclosures. Engineered with durability and ease of use in mind, it provides secure closure while allowing quick access through a smooth push-to-release bounce mechanism.

Constructed from high-strength metal components with a refined surface finish, the MS861 ensures long-term resistance against wear, corrosion, and frequent mechanical operation. Its robust internal spring structure enables reliable “bounce” or push-latch functionality, allowing the door or panel to be locked and released effortlessly without the need for traditional rotating handles or complex key operations in basic access modes.

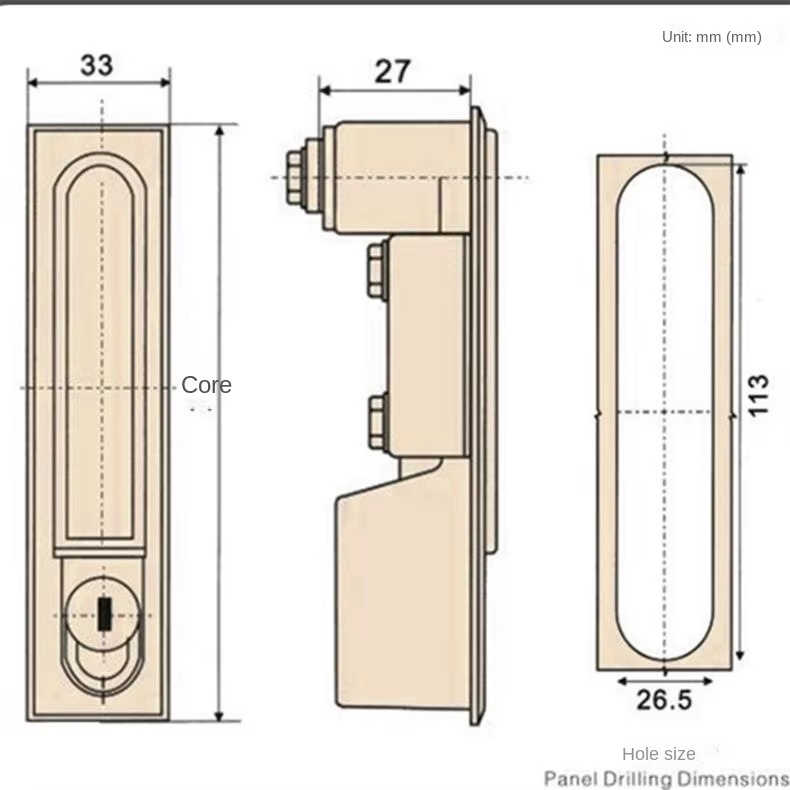

From a dimensional standpoint, the lock is designed for standardized installation compatibility. The front panel features a slim rectangular profile measuring approximately 33 mm in width, making it suitable for modern minimalist cabinet designs. The embedded lock body has a depth of around 27 mm, ensuring stable internal fitting without occupying excessive space inside the enclosure. For installation, the required panel cut-out is precisely engineered at about 113 mm in length and 26.5 mm in width, allowing for accurate and secure mounting while maintaining structural integrity of the cabinet door.

The MS861 adopts a plane-mounted design, meaning the lock sits flush with the cabinet surface. This not only improves aesthetics but also reduces protrusion, minimizing accidental impact in tight industrial environments. The internal bounce mechanism is designed for repeated cycling, offering smooth spring-back action and consistent locking force over extended use.

This model is widely applicable in electrical distribution boxes, network cabinets, automation control systems, and communication equipment enclosures. It is especially suitable for environments that require frequent access but still demand reliable security and controlled closure. The simplified push-to-open operation improves maintenance efficiency and reduces downtime during inspections or wiring adjustments.

In terms of installation, the MS861 is designed for straightforward panel mounting, requiring only a pre-cut opening and standard fastening hardware. Its precise engineering ensures a firm fit, reducing vibration and preventing loosening during operation.

Overall, the MS861 Electric Distribution Box Plane Bounce Lock combines compact design, mechanical reliability, and user-friendly operation. It is an ideal solution for modern industrial cabinet systems that prioritize both functional security and streamlined appearance.
