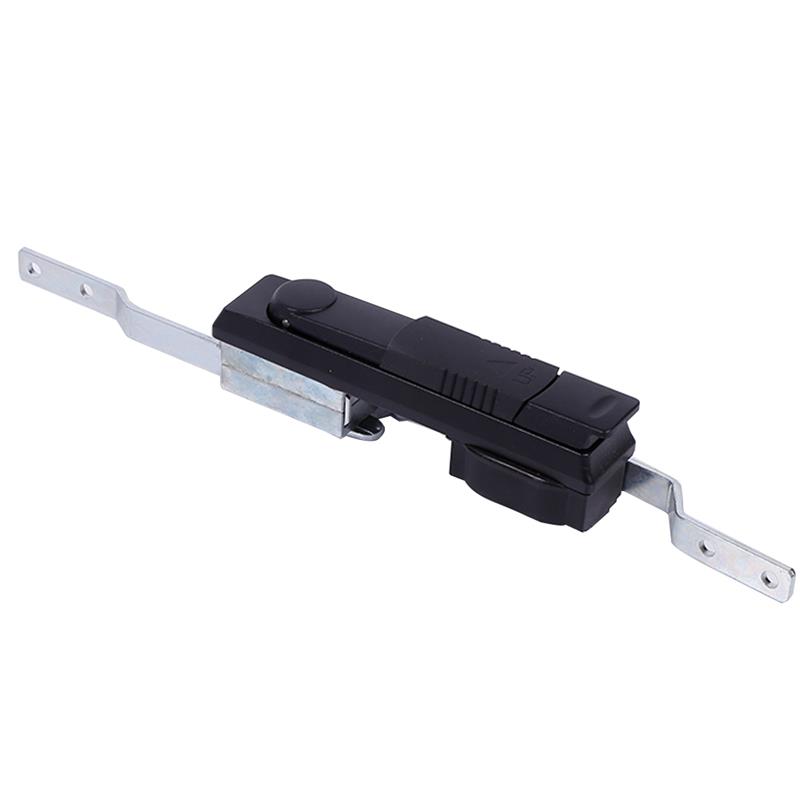

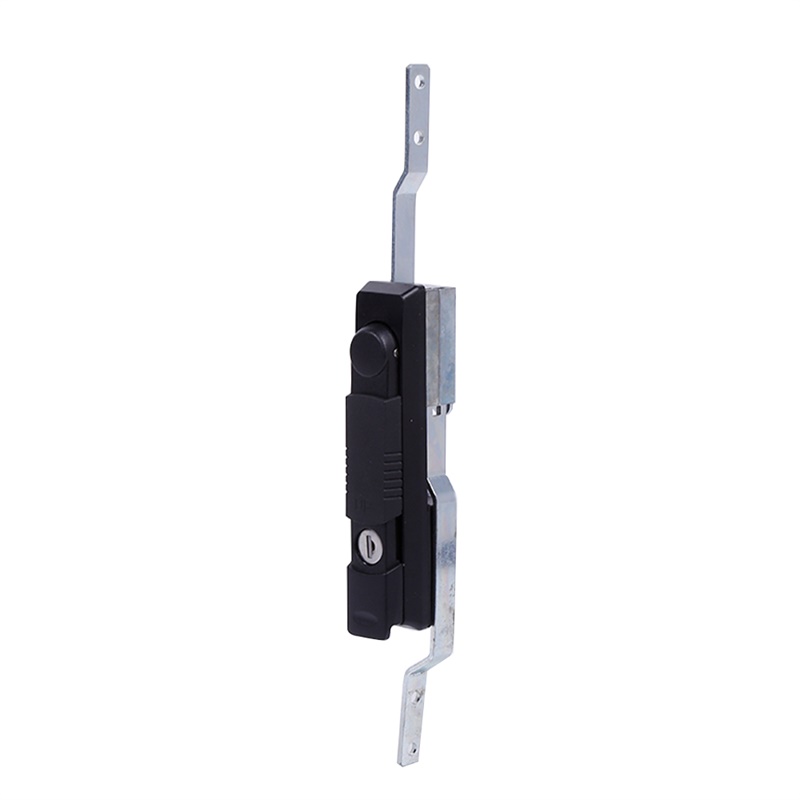

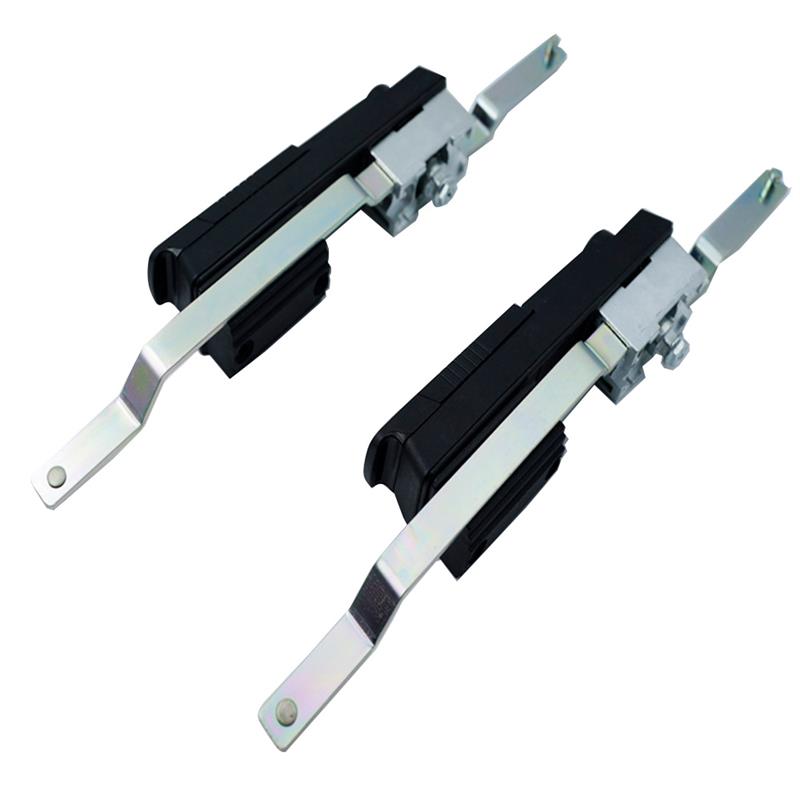

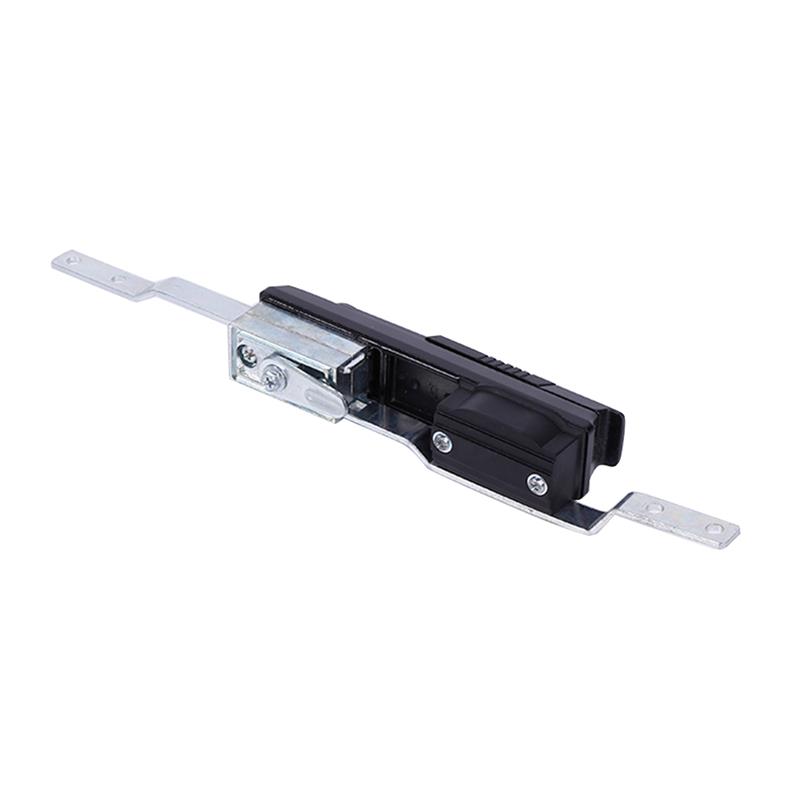

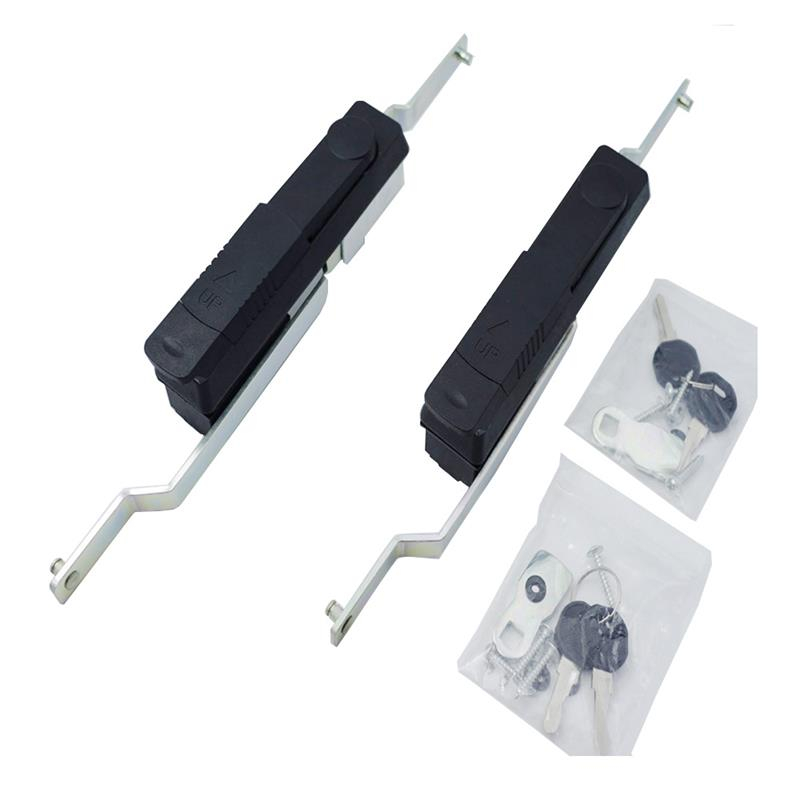

MS848 Industrial Cabinet Rod Control Lock

‌1. Superior Material Composition‌

Zinc Alloy & Carbon Steel Construction‌:
The ‌MS848 Industrial Cabinet Rod Control Lock‌ features a zinc alloy base and handle, paired with a high-strength carbon steel bolt and transmission strip. This combination ensures exceptional resistance to wear, corrosion, and mechanical stress.

Protective Surface Treatments‌:

Base and handle are coated with a spray plastic finish for enhanced scratch resistance and aesthetic appeal.

Bolt and transmission strip undergo white galvanization, further boosting environmental durability.

‌IP54 Certification‌:
Provides robust defense against dust ingress and water splashes, making it ideal for both indoor and outdoor installations.

2. Ergonomic & Secure Operation‌

Smooth Rotating Handle‌:
The ergonomically designed handle allows effortless door panel engagement, reducing operator strain during frequent use.

Integrated Security Features‌:

TC01 Lock Core‌: Paired with a K140 key, ensuring tamper-resistant access control and compatibility with master key systems.

Foam Sealing Ring‌: Minimizes vibration noise and enhances dust/water resistance.

Durable Transmission Mechanism‌: Ensures consistent performance even under high-load conditions.

3. High-Performance Specifications‌

· ‌Mechanical Strength‌:

· ‌Handle Tension‌: ‌520N‌ for reliable operation under heavy stress.

· ‌Torque Resistance‌: ‌27N.m‌ to prevent accidental disengagement.

· ‌Maximum Static Load‌: ‌270N‌ (steel bolt type), ideal for securing heavy-duty panels.

· ‌Adaptable Design‌:

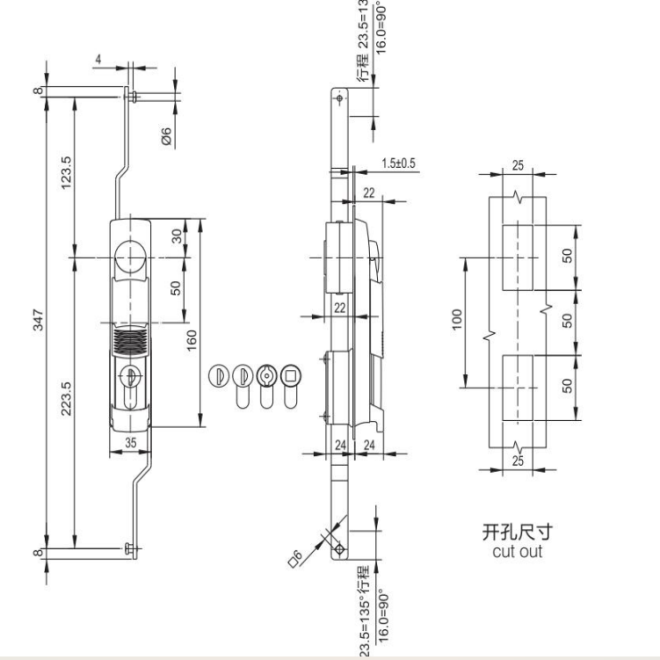

Customizable cut-outs (e.g., tooth strip type S1A35Y00001 or steel bolt type S1B45Y07002) allow seamless integration with varying cabinet thicknesses and configurations.

4. Versatile Industrial Applications‌

The ‌MS848 Industrial Cabinet Rod Control Lock‌ excels in diverse settings, including:

· ‌Electrical Cabinets‌: Safeguarding sensitive components in manufacturing plants or utility rooms.

· ‌Machinery Enclosures‌: Ensuring secure access to industrial equipment while resisting harsh operational conditions.

· ‌Outdoor Control Panels‌: Withstanding temperature fluctuations, humidity, and corrosive environments.

‌5. Key Advantages‌

· ‌Longevity‌: Zinc alloy and carbon steel components, coupled with protective coatings, guarantee decades of maintenance-free service.

· ‌User-Centric Design‌: Effortless handle rotation and foam-dampened operation enhance usability.

· ‌Compliance‌: Meets international industrial standards for safety, reliability, and environmental resilience.

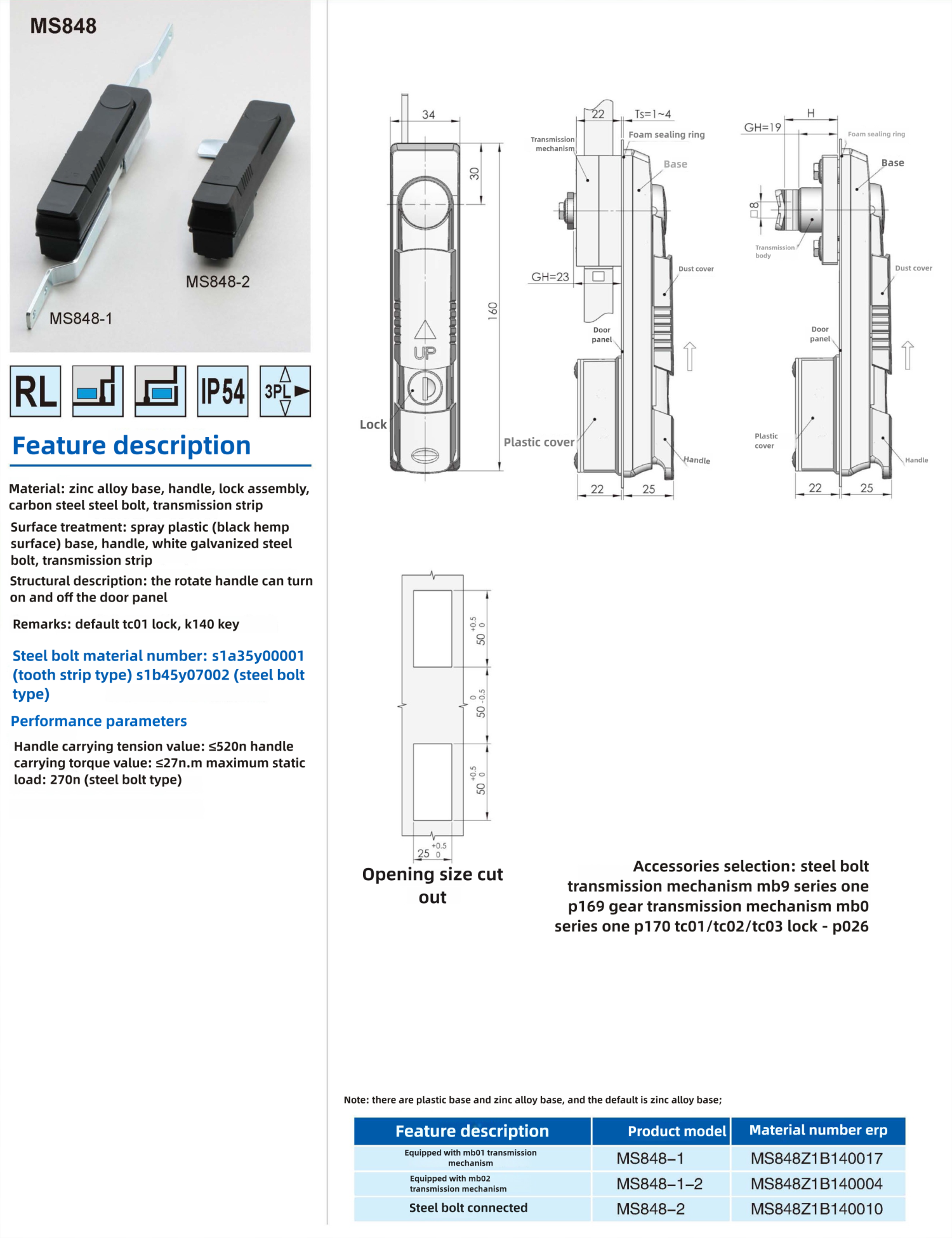

MS848 Industrial Cabinet Rod Control Lock‌

Material Breakdown:

· Base/Handle: Zinc Alloy (Spray Plastic Coated)

· Bolt/Transmission Strip: Carbon Steel (White Galvanized)

‌MS848 Industrial Cabinet Rod Control Lock‌

Performance Highlights:

· IP54-rated protection for dust/water resistance.

· Compatible with panel thicknesses up to 4mm (adjustable via customizable components).

Keywords‌: MS848 Industrial Cabinet Rod Control Lock, industrial-grade security, heavy-duty performance

For tailored solutions or technical specifications, consult our team to leverage the full potential of the ‌MS848 Industrial Cabinet Rod Control Lock‌.

Note: Complies with ISO 9001 quality standards and global industrial safety regulations.

This optimized overview positions the ‌MS848 Industrial Cabinet Rod Control Lock‌ as a top-tier choice for industries prioritizing security, durability, and operational efficiency.
