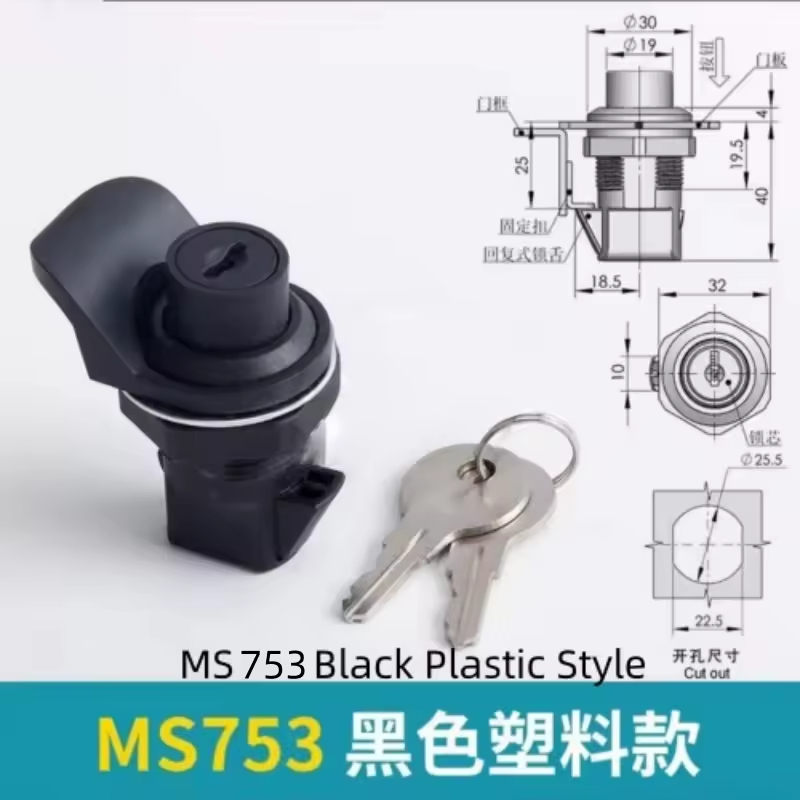

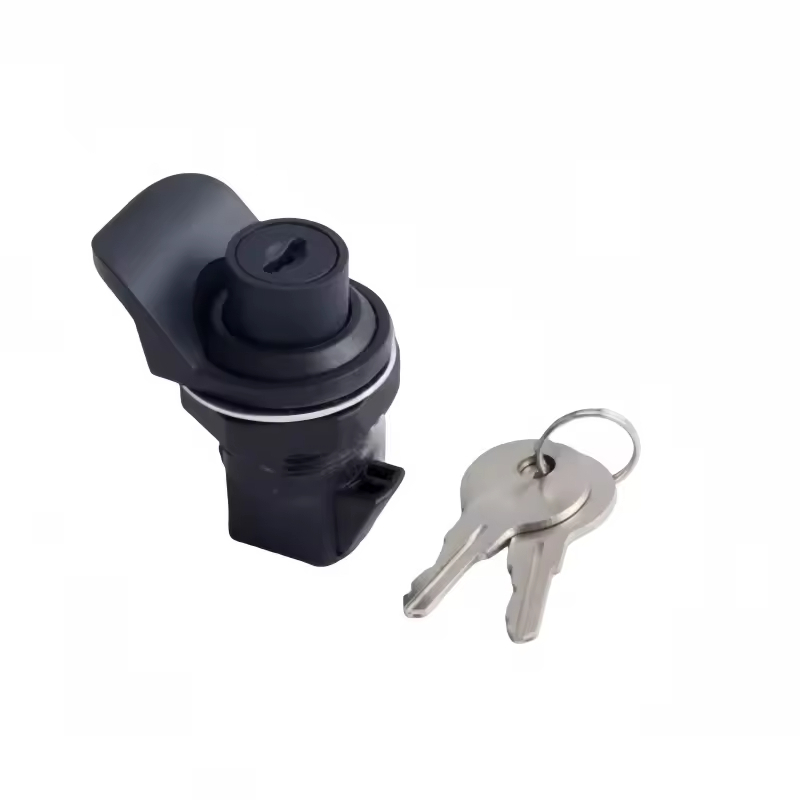

MS753 Black Plastic Equipment Cylinder Cabinet Lock

MS753 Cam Lock: Secure and Reliable Locking Solution

The MS753 cam lock is a high-quality locking mechanism designed for cabinets, enclosures, and various industrial applications where secure access control is essential. Crafted with precision, the MS753 provides both durability and versatility, making it an ideal choice for professionals and manufacturers seeking a dependable locking solution.

Material and Construction

The MS753 cam lock is made primarily from high-strength polycarbonate (PC) for the housing, complemented by a robust steel lock core and spindle. This combination ensures that the lock is both lightweight and resistant to wear, corrosion, and environmental stress. The use of a precision-engineered steel core guarantees smooth operation and high reliability over extended use, while the PC housing provides electrical insulation and chemical resistance, making it suitable for a wide range of industrial and commercial applications.

Design and Mechanism

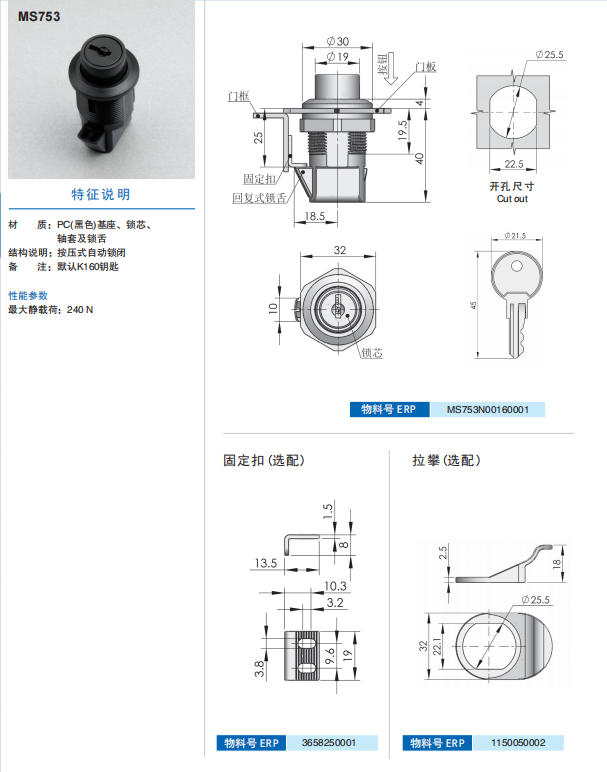

This cam lock features a push-to-lock mechanism, which simplifies the locking and unlocking process. The lock comes with a key-operated cylinder, allowing controlled access. The cam itself can be rotated to secure doors, panels, or drawers, and optional fixing plates or pull handles can be installed to adapt to specific installation requirements. The lock’s compact design, with a cylinder diameter of 19 mm and an overall length of 40 mm, allows it to fit easily into standard cutouts of 22.5 x 25.5 mm. The ergonomic key design, with a diameter of 21.5 mm, ensures ease of use while maintaining security.

Performance and Reliability

One of the standout features of the MS753 is its load-bearing capability, with a maximum static load of 240 N. This high performance ensures that the lock can withstand significant mechanical stress without compromising security. The design also incorporates a return spring mechanism that ensures the cam automatically returns to the locked position, reducing the risk of accidental unlocks and providing additional peace of mind in high-traffic or industrial environments.

Optional Accessories

To further enhance its versatility, the MS753 cam lock can be equipped with optional components such as fixing brackets and pull levers. The fixing bracket ensures a stable and secure installation, while the pull lever enables alternative unlocking methods, making the MS753 adaptable to a variety of operational scenarios.

Applications

The MS753 cam lock is widely used in industrial cabinets, vending machines, electrical enclosures, and office furniture. Its robust construction, reliable locking mechanism, and flexible installation options make it suitable for both heavy-duty industrial environments and everyday office or commercial use.

Conclusion

Overall, the MS753 cam lock combines durability, security, and practicality. Its thoughtfully engineered design ensures long-lasting performance, while optional accessories allow for customized solutions depending on the application. For anyone in need of a reliable and easy-to-use locking mechanism, the MS753 cam lock offers a perfect balance of security, strength, and convenience.
