Key Features
Material: Zinc alloy lock body, carbon steel cam
Surface Finish: Chrome-plated lock body, zinc-plated steel cam
Fast Opening & Easy Installation: The quick rotary handle mechanism allows for rapid operation, while its user-friendly design ensures a hassle-free installation process.
Adjustable Cam Position: The lock’s cam height and central distance can be adjusted using the cam screw, providing greater flexibility for different installation needs.
Performance Parameters
Handle Load Capacity: ≤350N
Maximum Static Load: 350N
Model Variants
The MS703 Plane Lock is available in two versions based on the rotation direction:
| Feature | Model Number | ERP Material Code |
Left Rotation Opening | MS703-Z | MS703Z3A000001 |
Right Rotation Opening | MS703-Y | MS703Z3A000003 |

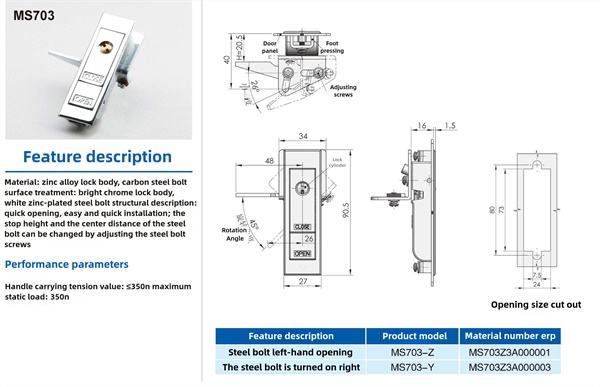

Technical Drawings & Cut-Out Dimensions
The lock’s technical specifications, including precise measurements, can be found in the provided engineering drawings. The cut-out dimensions ensure compatibility with various Plane enclosures, making it a versatile solution for electrical cabinets, industrial enclosures, and machinery doors.
Applications
The MS703 Plane Lock is ideal for a wide range of applications, including:
Electrical cabinets
Industrial machinery enclosures
Distribution boxes
Network and communication equipment
With its durable construction, ease of use, and adjustable configuration, the MS703 Plane Lock provides a secure and efficient locking solution for industrial and commercial applications.
