MS722 Cylinder Cam Lock

MS722 Cylinder Cam Lock – Compact, Secure, and Durable

Product Overview

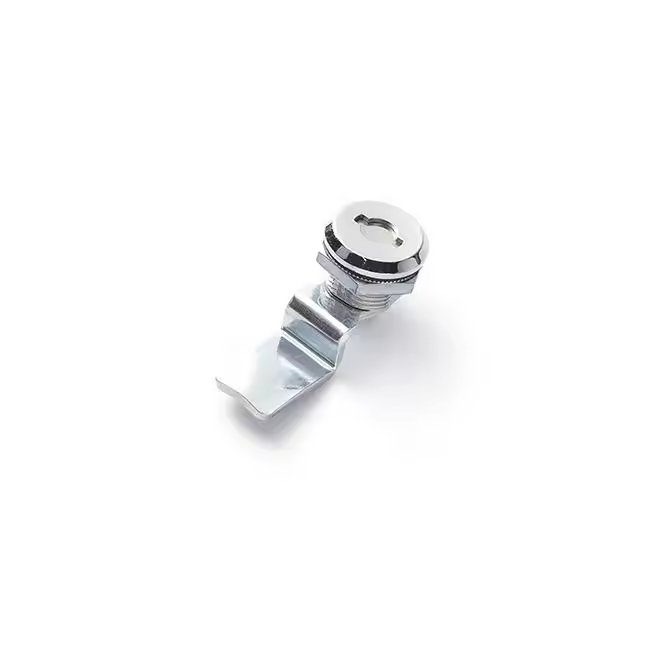

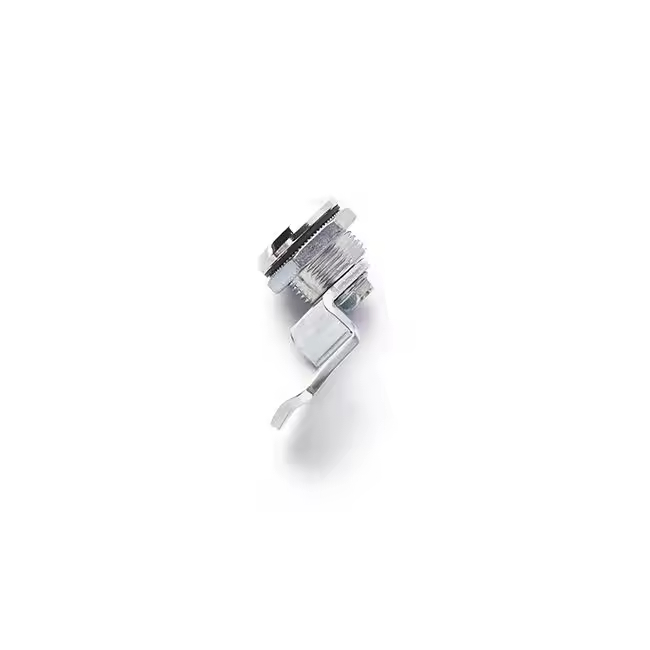

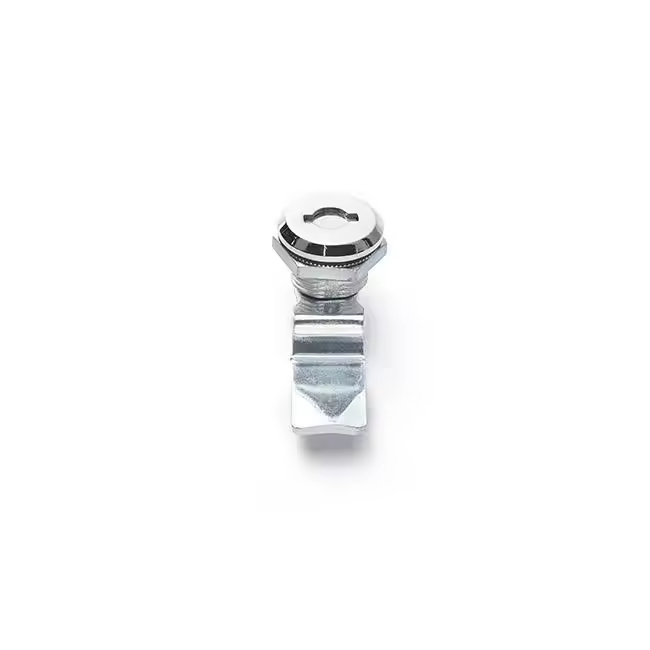

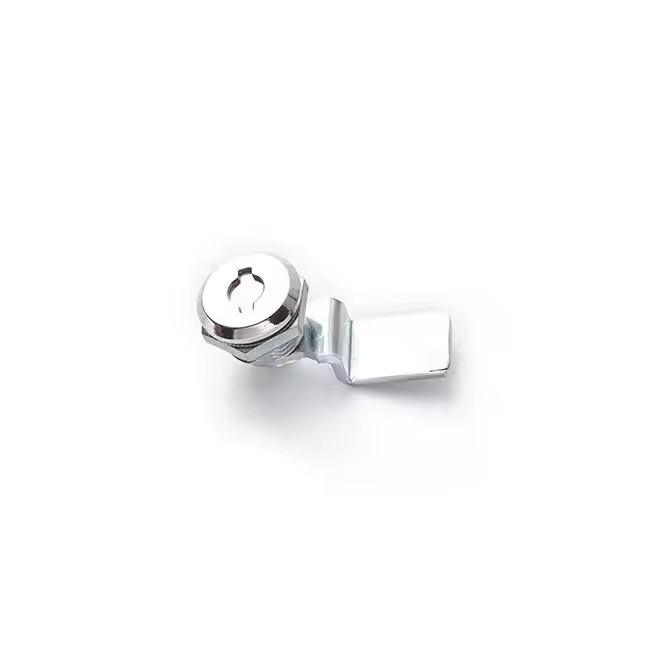

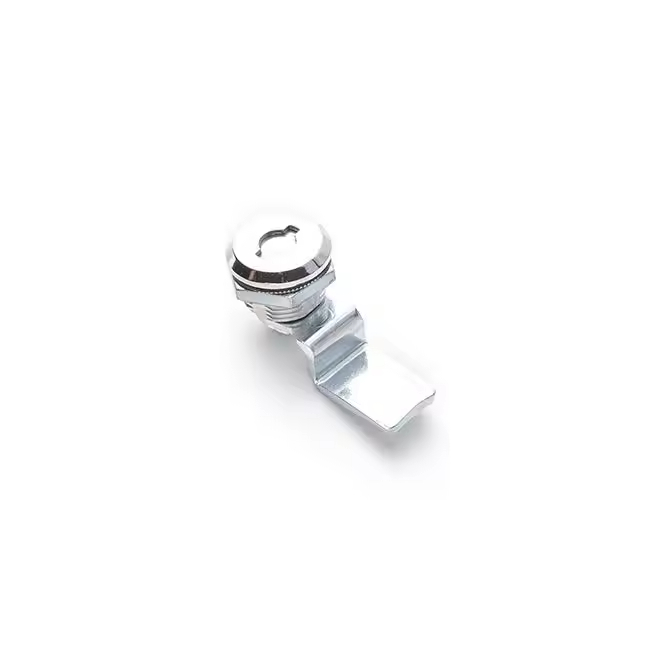

The MS722 Cylinder Cam Lock is a reliable and compact locking solution widely used in cabinets, enclosures, lockers, and industrial equipment. With a robust zinc alloy housing and carbon steel cam, it provides high strength, durability, and smooth operation. The lock is designed with an IP54 protection rating, making it resistant to dust and splashing water, ideal for both indoor and semi-outdoor applications.

Material & Surface Finish

Lock Body & Base: Zinc alloy (die-cast), polished chrome finish

Cylinder Core:Zinc alloy with bright chrome plating

Cam (Lock Tongue): Carbon steel, zinc-plated for corrosion resistance

Optional Accessories: Pull tab (HP001), waterproof cover (WP002) for added protection

Key Features & Advantages

90° Rotation Operation: Simple and efficient locking/unlocking with a quarter turn

High Strength & Durability: Zinc alloy construction ensures long service life

Corrosion Resistant: Chrome-plated finish and zinc-coated cam protect against wear and rust

Dust & Splash Protection (IP54): Suitable for environments where protection from light moisture and dust is required

Flexible Applications: Compatible with S1B4507 steel cam (standard), with optional 8×8 cam available

Universal Keying: Can be paired with K15-1 standard key

Performance Parameters

Maximum Static Load: 220N

Recommended Fastening Torque for Fixed Nut:20N·m

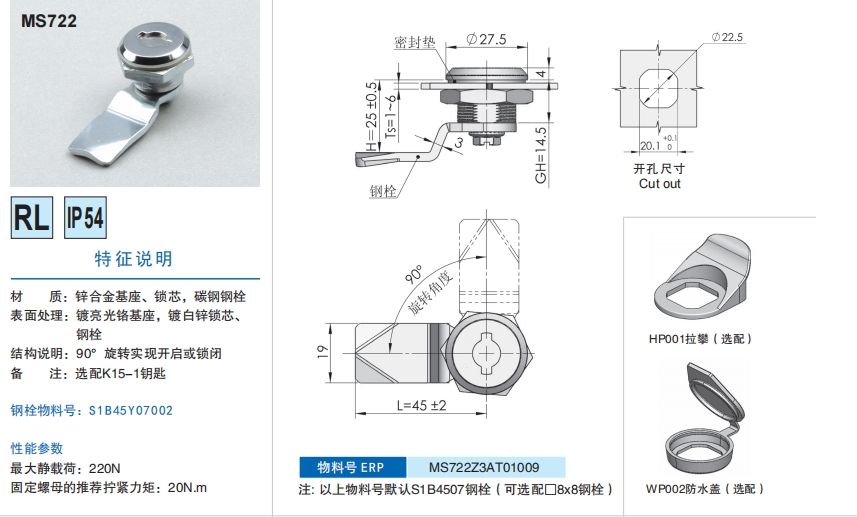

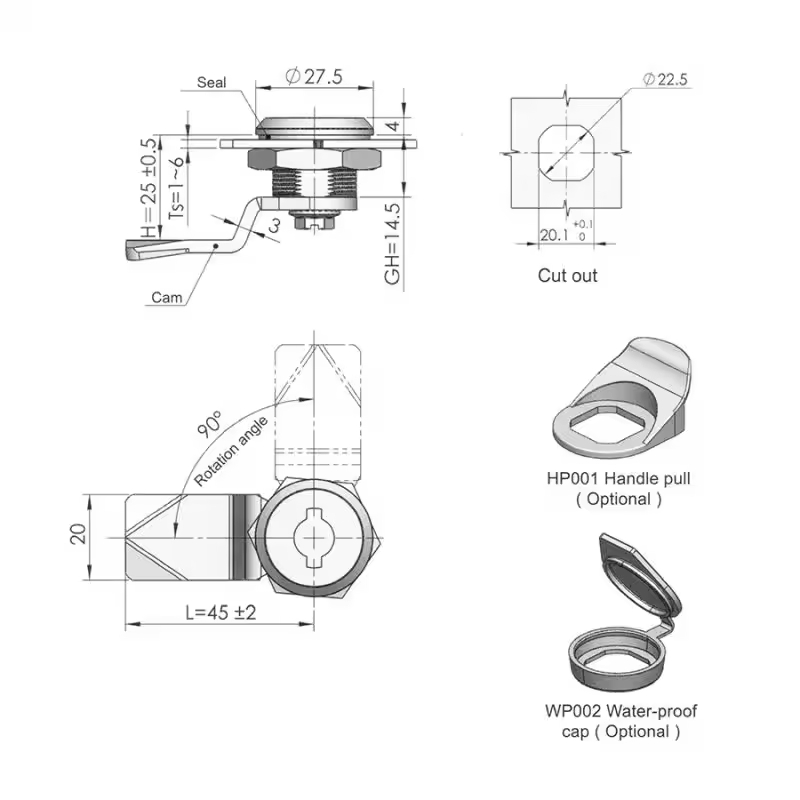

Technical Specifications

Cut-out Size: Ø22.5 mm (with positioning flat for anti-rotation)

Overall Length:45 ±2 mm (cam length)

General Height (GH):14.5 mm

Rotation Angle: 90°

Applications

The MS722 Cylinder Cam Lock is versatile and widely used in:

* Electrical cabinets and control panels

* Distribution boxes

* Toolboxes and storage lockers

* Network and telecom equipment

* Industrial machinery enclosures

Product Advantages

* Compact and easy to install in standard cut-out dimensions

* Smooth operation with reliable key control

* Dustproof and splash-resistant for extended service life

* Optional accessories enhance flexibility (pull tab for easier handling, waterproof cover for outdoor use)

With its robust structure, sleek finish, and reliable IP54 protection, the MS722 Cylinder Cam Lock is an excellent choice for industries requiring compact yet secure locking solutions.
