Flag Welding Hinge

Flag Welding Hinges – Durable and Versatile Weld-On Hinges for Metal Fabrication

Product Overview:

Flag Welding Hinges are robust, precision-engineered components designed to provide a secure and durable pivot point between two metal surfaces. Unlike traditional hinges, flag hinges offer a flat mounting plate (or "flag") on each side of the barrel, allowing for easy and strong welding installation onto gates, doors, machinery panels, and industrial enclosures. These hinges are particularly valued in heavy-duty applications where removable doors or panels are required.

Product Features:

Heavy-Duty Construction:

Made from high-strength carbon steel or stainless steel, these hinges are designed to withstand substantial loads and harsh environmental conditions.

Weld-On Mounting Plates:

The flag-style mounting plates provide a wide and stable surface area for welding, ensuring firm and permanent installation.

Fixed or Removable Pin Design:

Available with either fixed pins for added security or removable pins for ease of door removal and maintenance.

Smooth Operation:

Precision machining ensures smooth pivoting without excessive play, providing consistent and reliable performance over time.

Material Options:

Carbon Steel:

Ideal for general industrial use.

Can be surface-treated with black oxide, zinc plating, or powder coating for corrosion resistance.

Stainless Steel (304/316):

Excellent for outdoor or corrosive environments.

Provides long-lasting resistance to rust, ideal for marine or food-grade applications.

Manufacturing Process:

Material Preparation:

High-grade steel bars and plates are cut to precise dimensions.

CNC Machining & Drilling:

Barrels are machined and bored to tight tolerances to ensure accurate alignment.

Welding Assembly:

The plates and barrels are TIG/MIG welded together, maintaining structural integrity and strength.

Surface Finishing:

Options include grinding, polishing, sandblasting, and protective coatings depending on the use case.

Application Scenarios:

Industrial Equipment and Enclosures

Metal Gates and Doors

Truck Bodies and Toolboxes

Steel Cabinets and Access Panels

Construction Machinery and Agricultural Equipment

Custom Fabrication Projects

Product Functions:

Acts as a pivot point between two heavy-duty metal structures.

Enables secure and stable swinging motion for doors, lids, or gates.

In some models, the pin can be removed to detach doors or covers for maintenance or access.

Key Advantages:

Strong Load Capacity – Designed for high-stress environments.

Easy Welding Installation – Flat flags offer ample welding area.

Compact & Space-Efficient – Minimalist design fits in tight spaces.

Customizable Design – Available in various sizes, materials, and pin configurations.

Long Service Life – Built for durability and low maintenance.

Specifications (Typical Options):

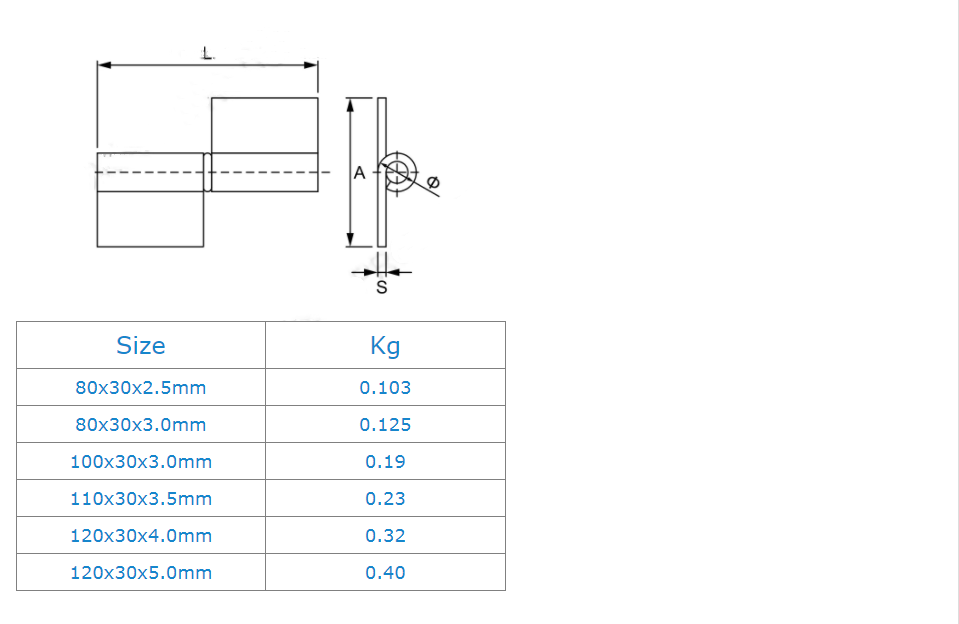

Sizes: Various lengths and barrel diameters from small (20mm) to large (150mm+)

Material Thickness: 3–10 mm plate depending on size

Pin Type: Fixed / Removable

Finish: Raw steel, galvanized, stainless polished

Grease Fitting: Optional (for maintenance-intensive applications)

Installation Recommendations:

Align hinge parts carefully before welding to ensure smooth operation.

Use full welds on both plate edges for maximum strength.

Apply anti-rust coating post-welding if using carbon steel in outdoor settings.

Lubricate moving parts periodically for optimal function.

Contact us today for custom orders, technical drawings, or bulk pricing. OEM services and private labeling are available upon request.
