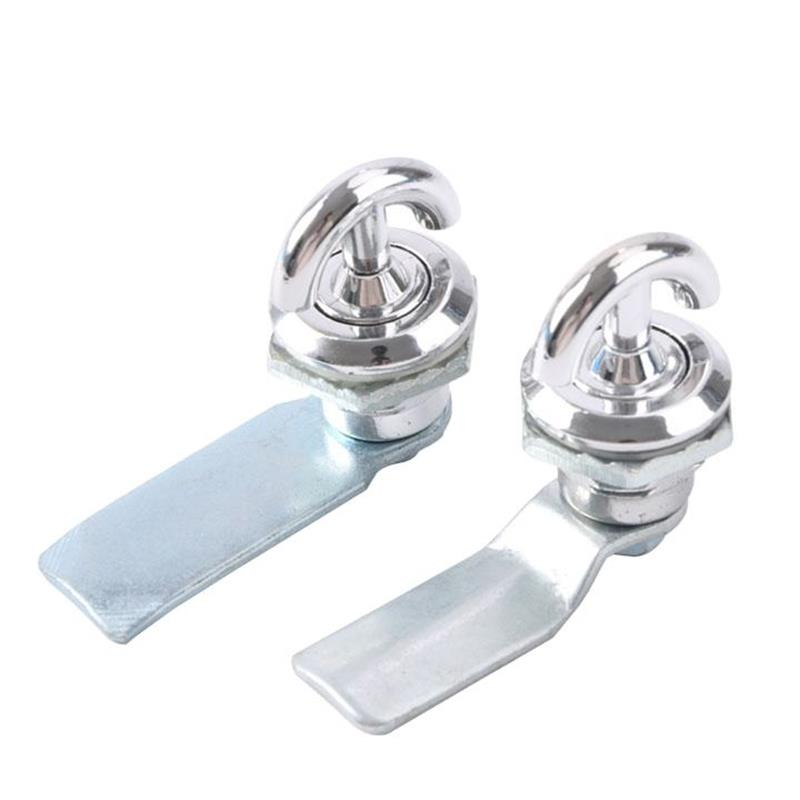

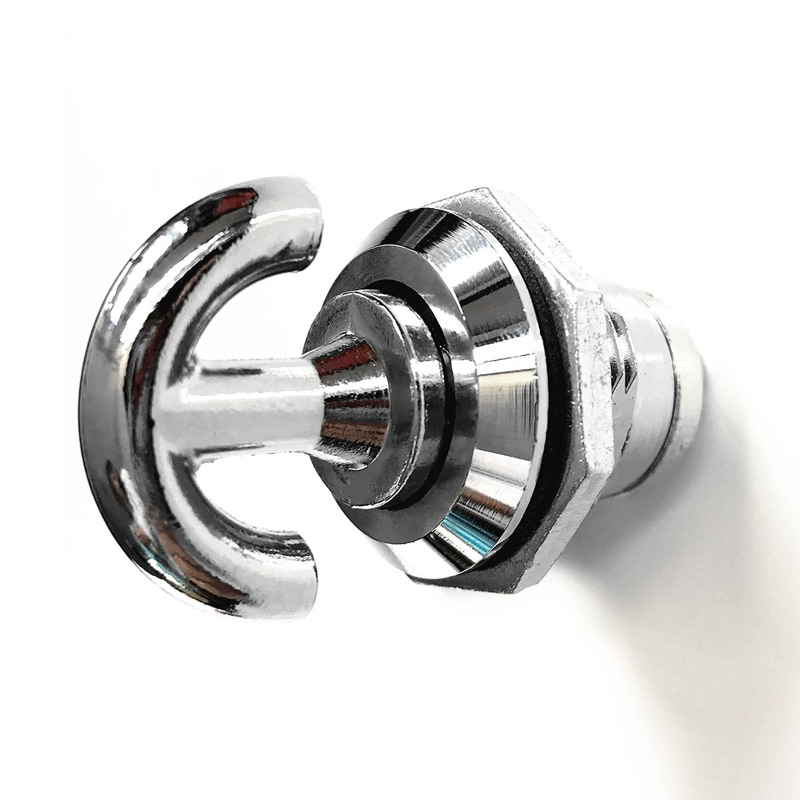

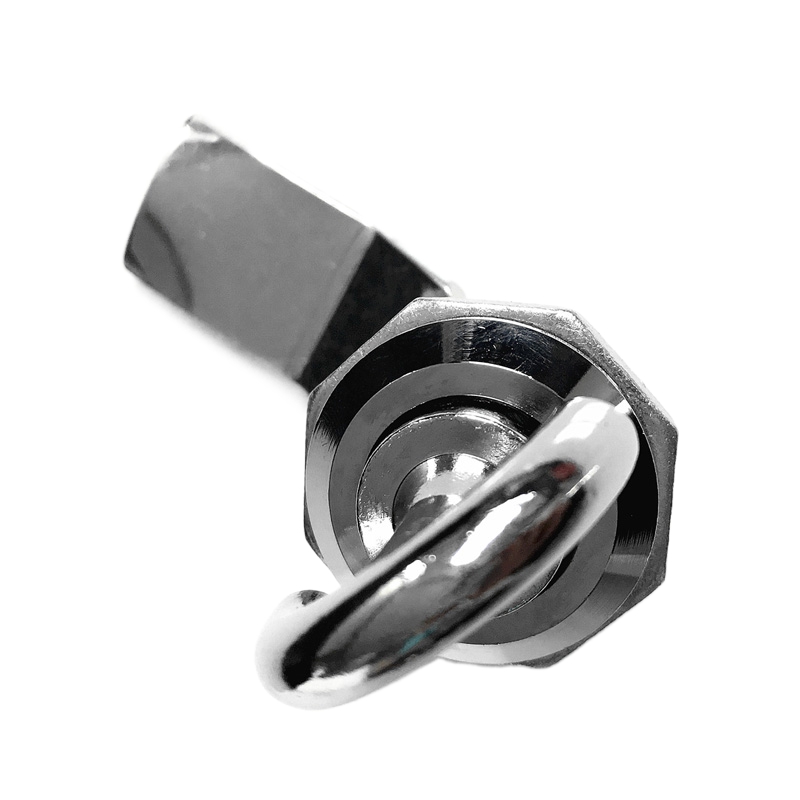

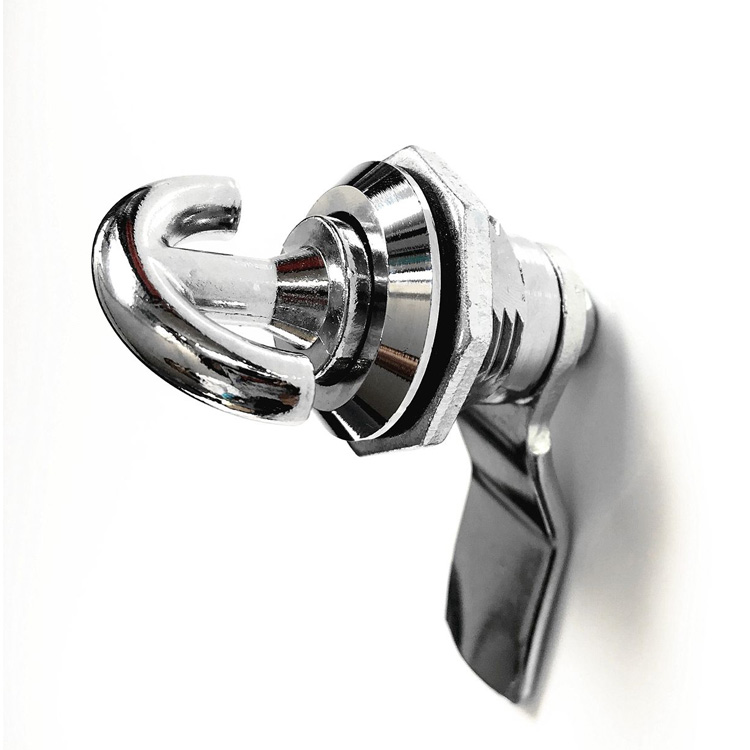

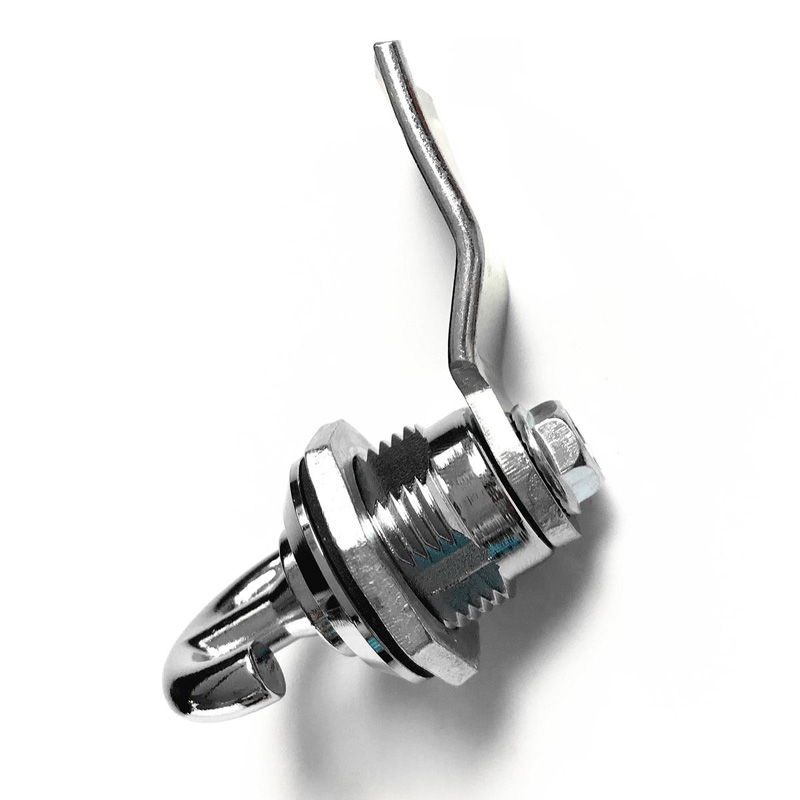

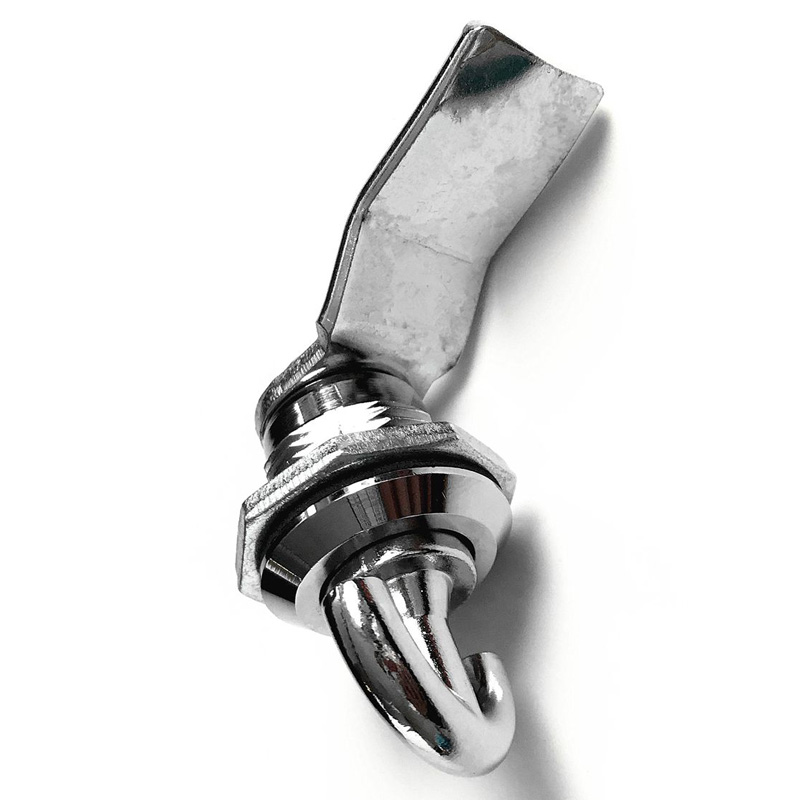

MS715 Cam Lock For Cabinet

Key Features

‌Material and Construction‌:

The MS715 Cam Lock For Cabinet is constructed with a zinc alloy base, bright chrome-plated for enhanced corrosion resistance and a sleek appearance.

The handle is available in either zinc alloy or PA base, providing options for different operational needs and environments.

The carbon steel bolt is white zinc-plated, ensuring strength and durability.

‌Design and Functionality‌:

The lock design allows for a 90° rotation of the handle, facilitating easy opening and closing of the cabinet.

The handle's ergonomic design ensures smooth operation and user comfort.

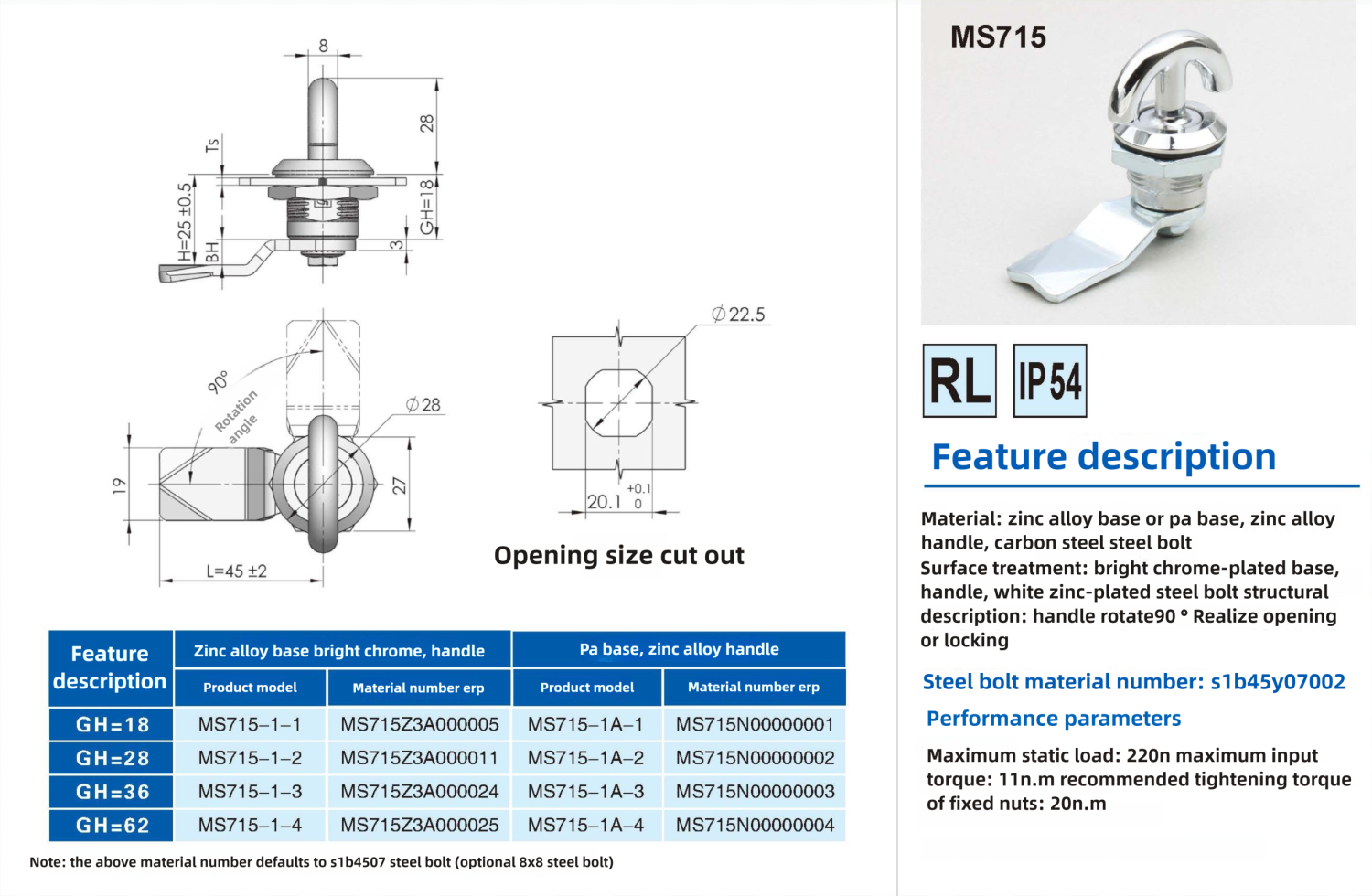

‌Performance Parameters‌:

The maximum static load capacity is 220N, making it suitable for various cabinet applications.

The recommended tightening torque for fixed nuts is 20N·m, ensuring secure installation and longevity.

‌

Options and Customization‌:

The Steel bolt material number is s1b45y07002, which is the default option. However, customers have the option to specify an 8x8 steel bolt if required.

Applications:

The MS715 Cam Lock For Cabinet is ideal for use in cabinets, enclosures, and other applications where secure and reliable locking is essential. Its robust construction and versatile design make it a preferred choice for industries that demand high performance and reliability from their locking solutions.

In summary, the MS715 Cam Lock For Cabinet is a high-quality, durable lock designed to meet the demands of various industrial and commercial applications. Its combination of strong materials, ergonomic design, and reliable performance makes it an excellent choice for securing cabinets and enclosures.
