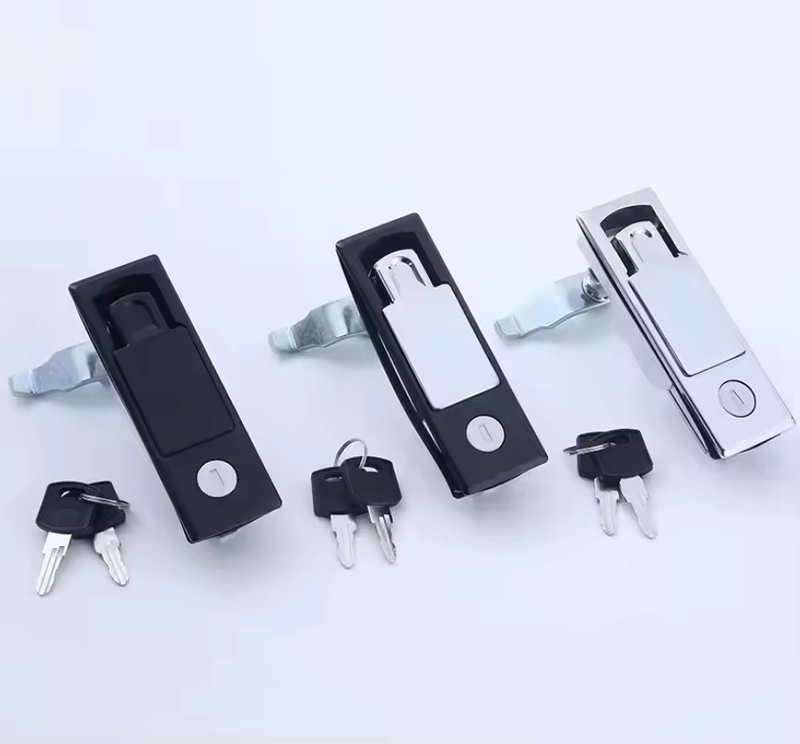

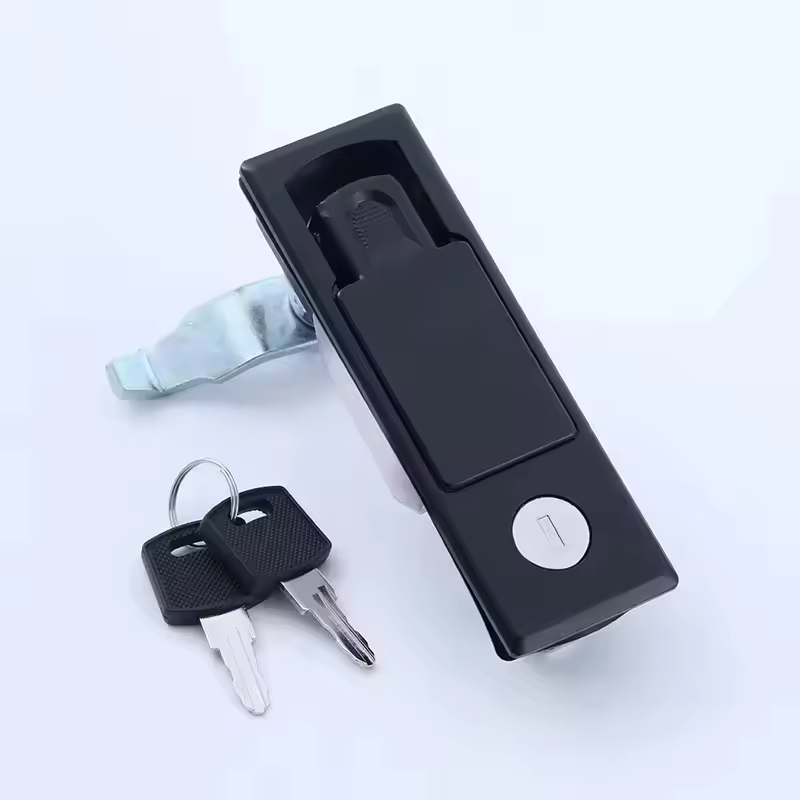

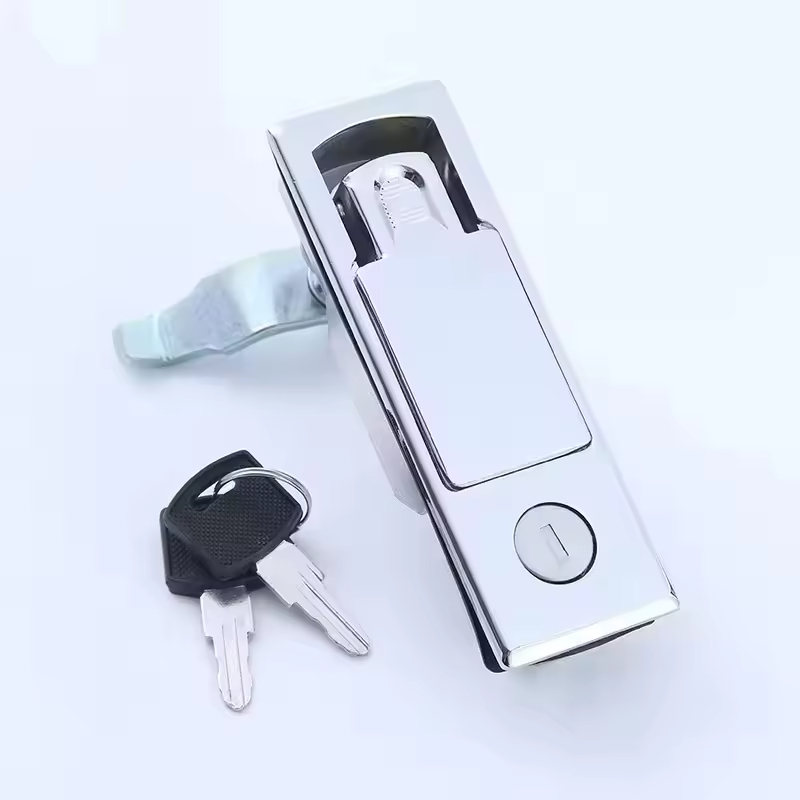

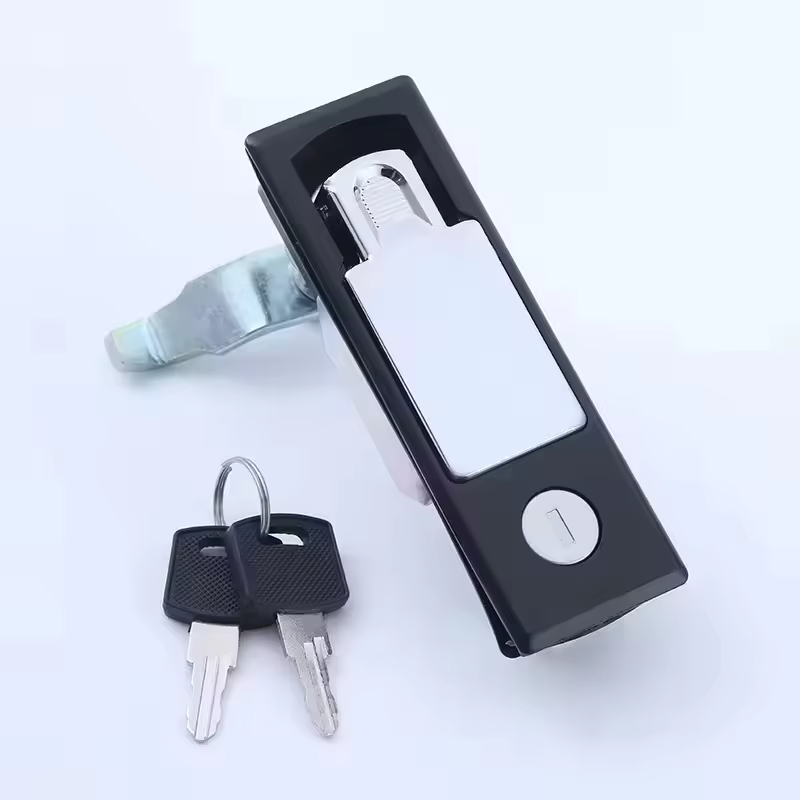

MS727 Push-type Industrial Equipment Plane Lock

The MS727 push-type plane lock is a high-performance locking mechanism designed for industrial and commercial equipment enclosures, control panels, and distribution boxes. It is constructed from a combination of zinc alloy for the base and handle, along with a steel core, carbon steel pressing plate, and steel bolt, providing a balance of strength, durability, and corrosion resistance. This combination of materials ensures long-lasting performance even under frequent use in demanding industrial environments.

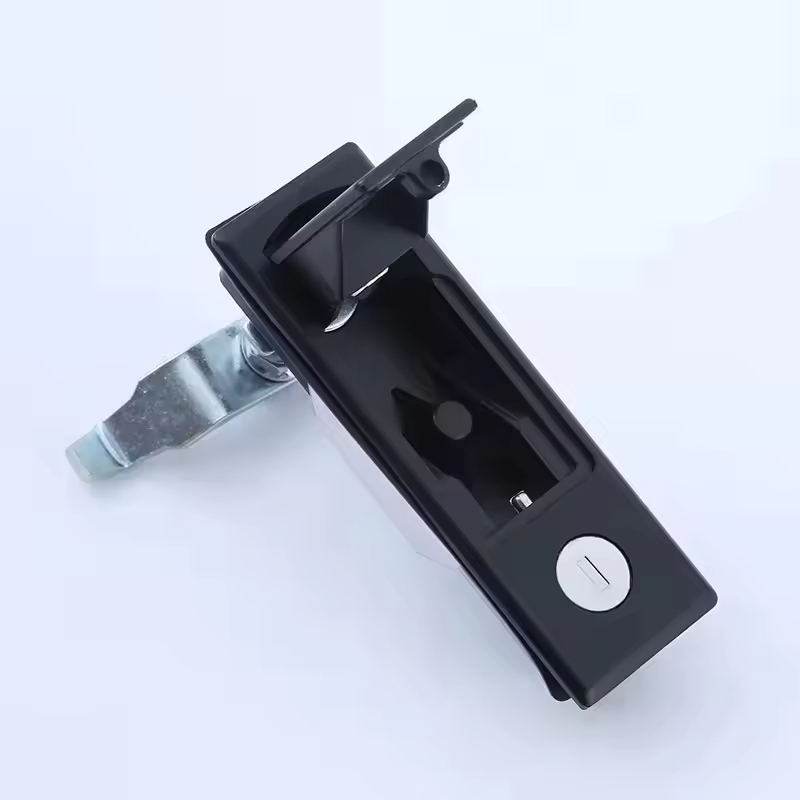

The lock’s surface treatment involves a matte black sprayed base, a handle with galvanized white zinc finish, and a steel bolt for smooth operation. This not only provides a visually appealing finish but also protects against corrosion, wear, and daily mechanical impact. The push-type handle mechanism allows the user to operate the lock easily by pressing down, which in turn rotates the internal bolt to secure or release the door. The handle can rotate a full 360°, while the bolt itself can swing 90° to engage the locking mechanism, ensuring reliable and precise closure.

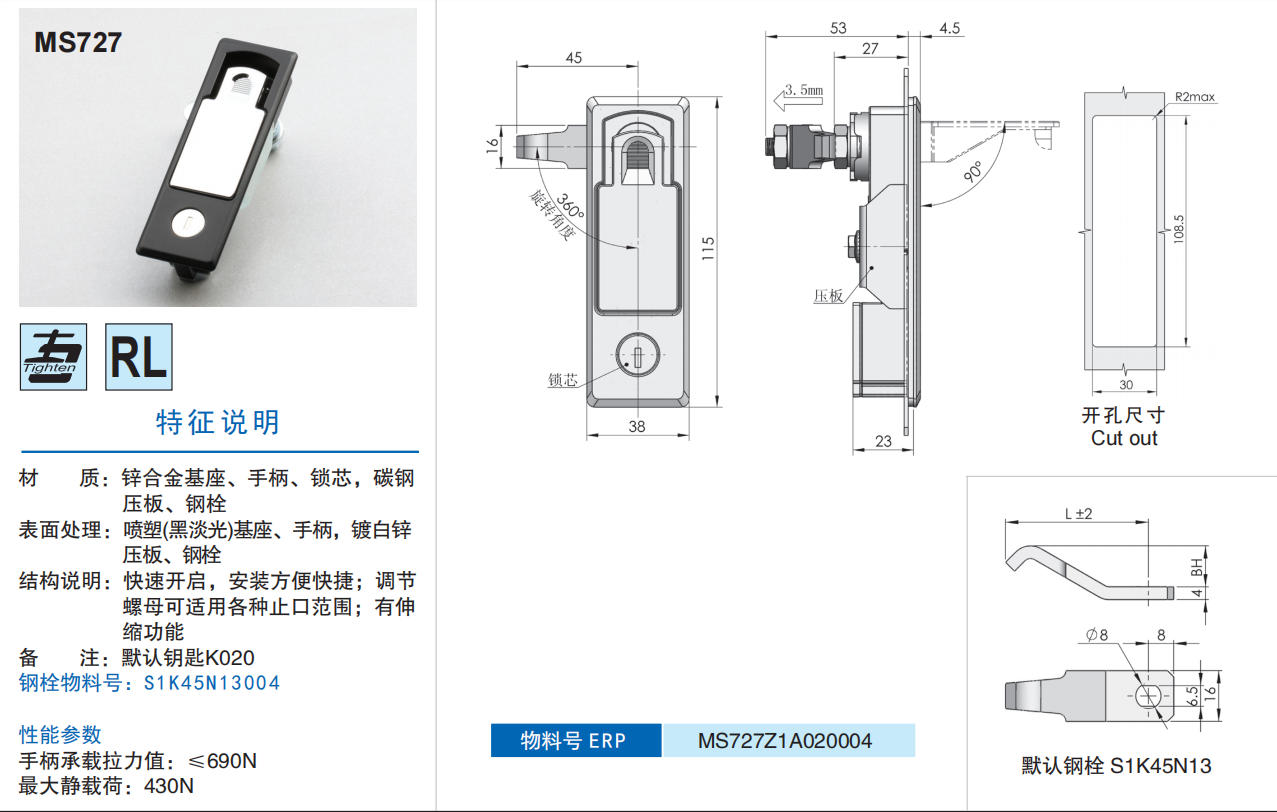

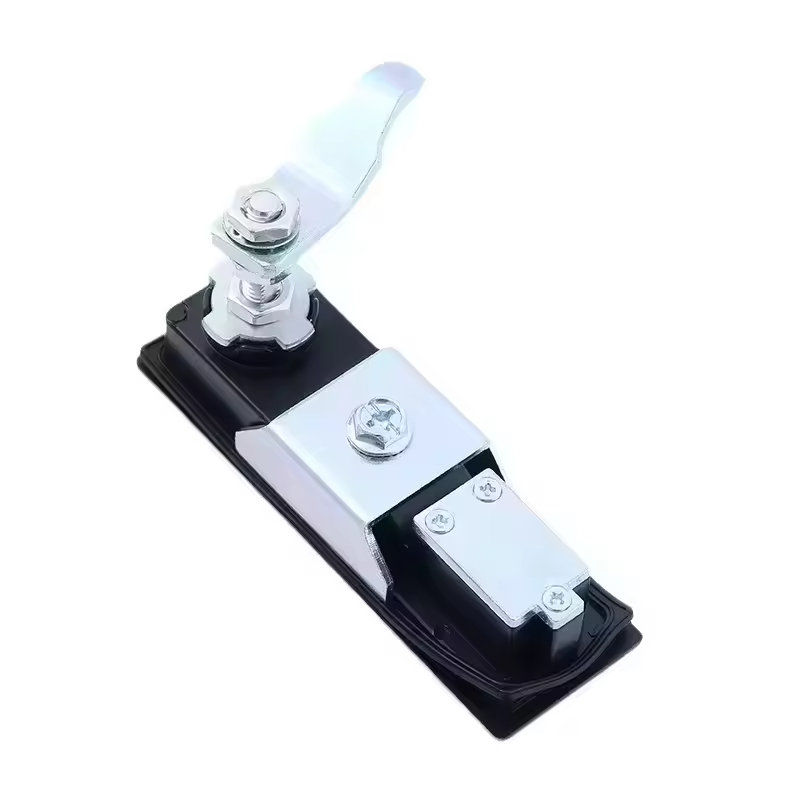

The MS727 lock supports adjustable installation to accommodate different door thicknesses and frame configurations, thanks to its adjustable nut and extendable steel bolt design. The cut-out dimensions for installation are 108.5 mm by 30 mm, with a depth of 23 mm, making it compatible with most standard industrial panels. The handle is ergonomically designed, capable of withstanding a manual pull force of up to 690N and a maximum static load of 430N, ensuring robust mechanical performance under repeated use.

This lock is particularly suitable for industrial equipment cabinets, electrical distribution boxes, automation control panels, and other enclosures requiring secure but quick access. Its quick-opening design enhances operational efficiency, allowing maintenance personnel to access equipment rapidly while maintaining secure closure when not in use. The combination of zinc alloy, carbon steel components, and high-quality surface treatment ensures it remains reliable in harsh industrial settings where vibration, mechanical stress, and environmental factors may otherwise compromise standard locks.

Overall, the MS727 push-type plane lock combines durability, flexibility, and user-friendly operation. Its robust construction, smooth push-type mechanism, and adaptable installation make it an ideal choice for industrial engineers, facility managers, and maintenance teams seeking a secure, efficient, and long-lasting locking solution for critical equipment enclosures.
