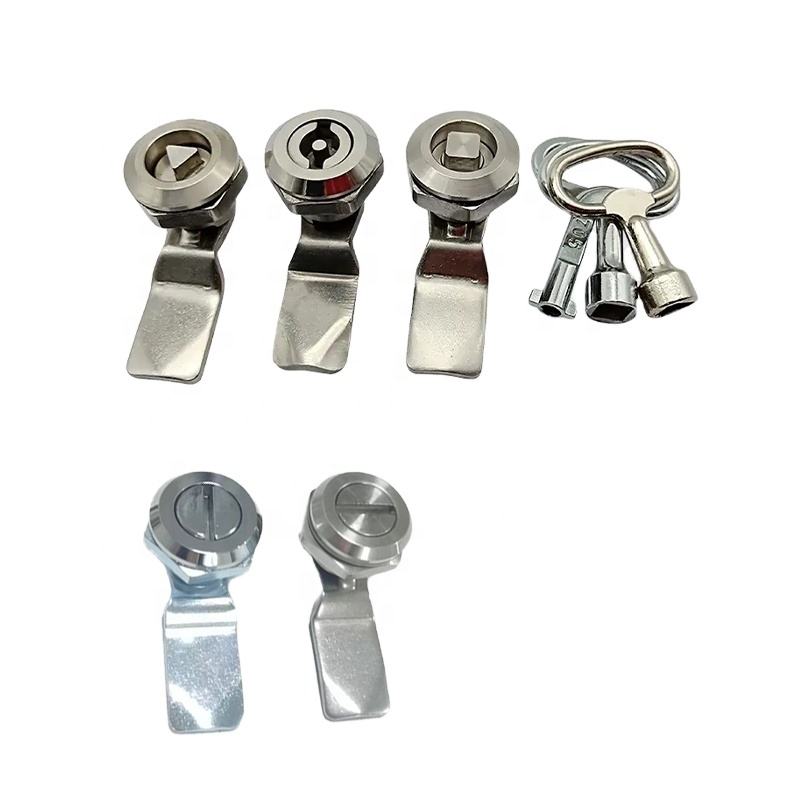

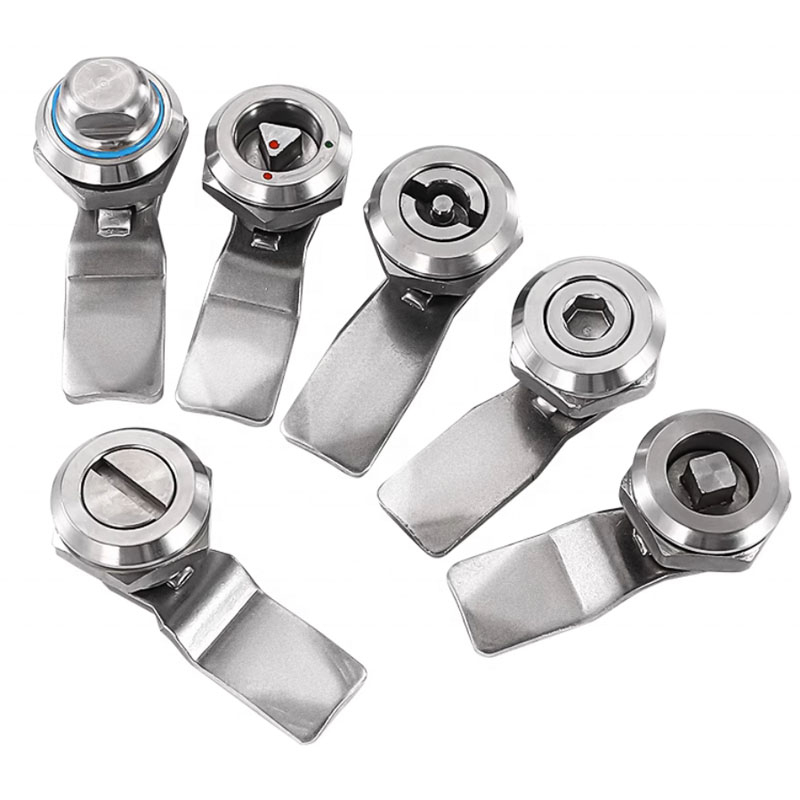

MS705 Cam Lock

Key Features

360° Rotatable Hook-Type Steel Bolt

Equipped with a 360° swivel hook mechanism (steel bolt) for seamless door operation, compatible with push-pull motion.

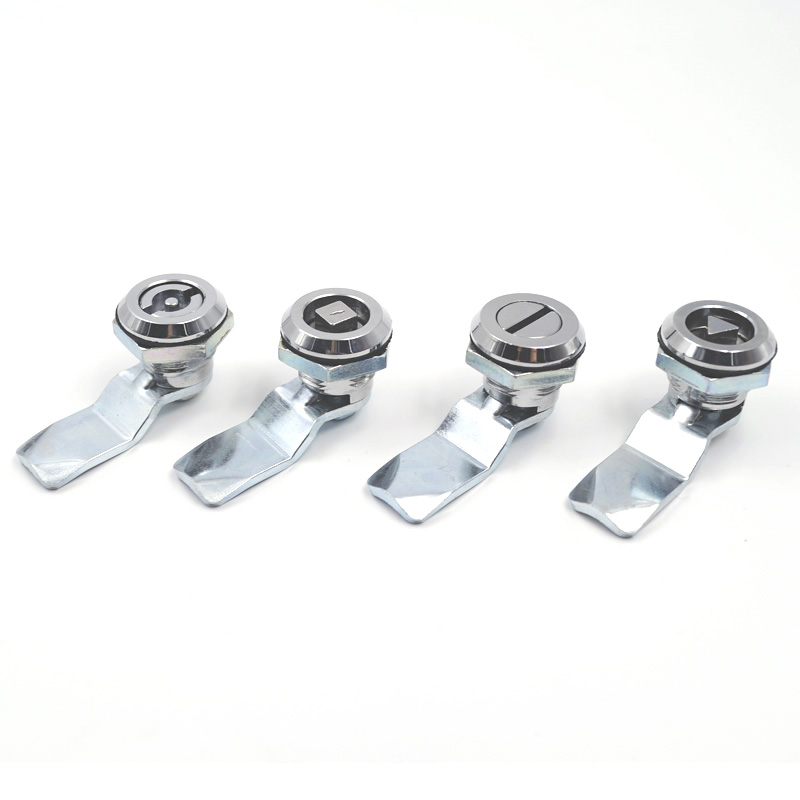

Two material options

Iron Phosphating + White Zinc Plating (S1845Y07002): Cost-effective, corrosion-resistant.

Stainless Steel (S1845Y07022): Premium durability for harsh conditions.

IP54 Rated Protection

Dust-tight (IP54) construction ensures resistance to airborne particles and water spray,  enhancing longevity in humid or dirty environments.

Precision Dimensions & Load Capacity

Diameter: 28 mm | Height: 45 ± 2 mm.

Maximum Static Load: 270 N | Maximum Input Torque: 9 N·m.

Recommended Tightening Torque: 20 N·m for fixing nuts.

Sealed for Weatherproofing

Includes seal pads, O-rings, and waterproof gaskets to prevent moisture infiltration,  ideal for outdoor or high-humidity applications.

Easy Installation

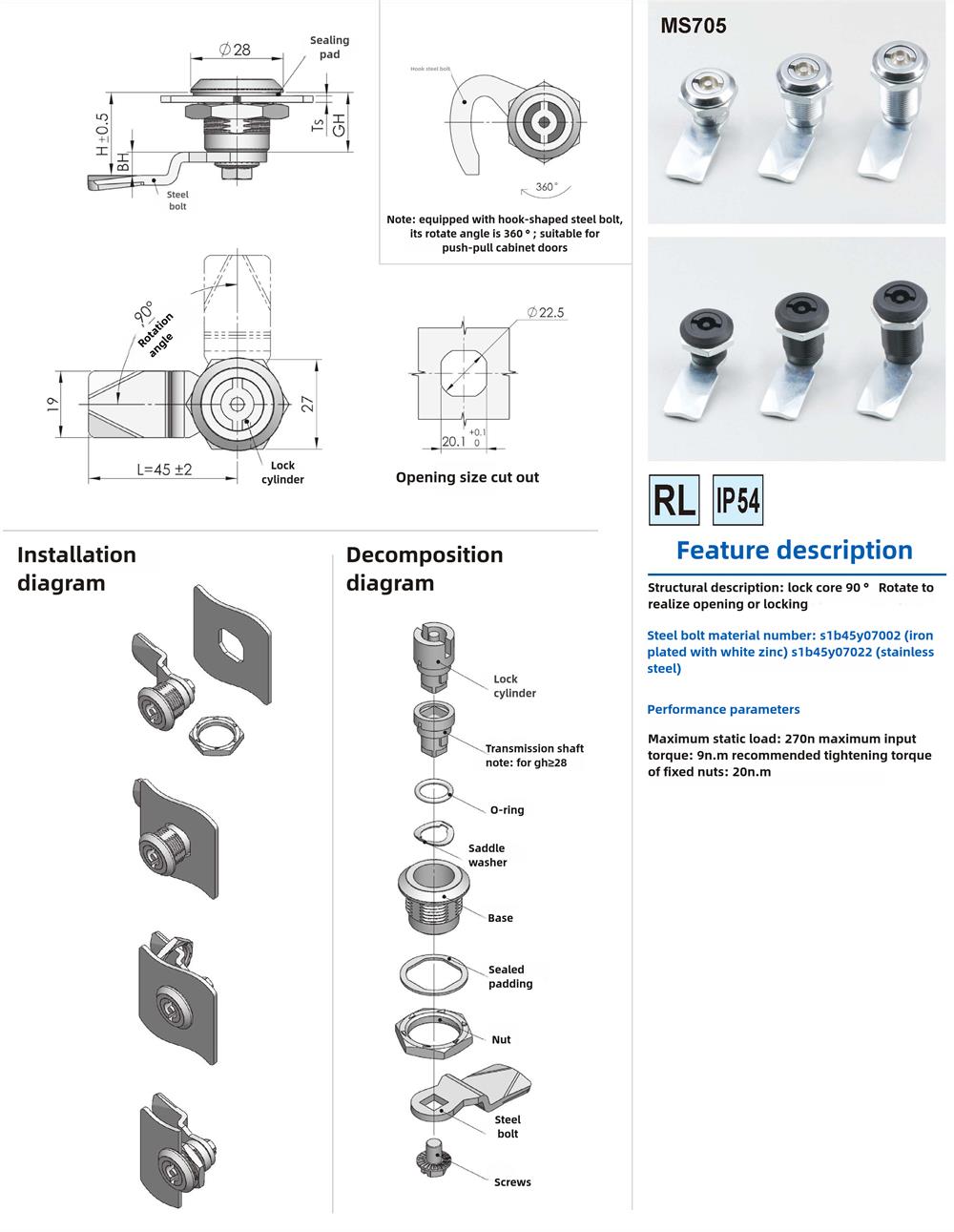

Comprehensive installation diagrams, exploded views, and dimensional guidelines (e.g., cut-out size:  Φ 22.5mm) simplify setup.

Compatible with GHz28-inch doors and requires 90° rotation of the cam core for locking/unlocking.

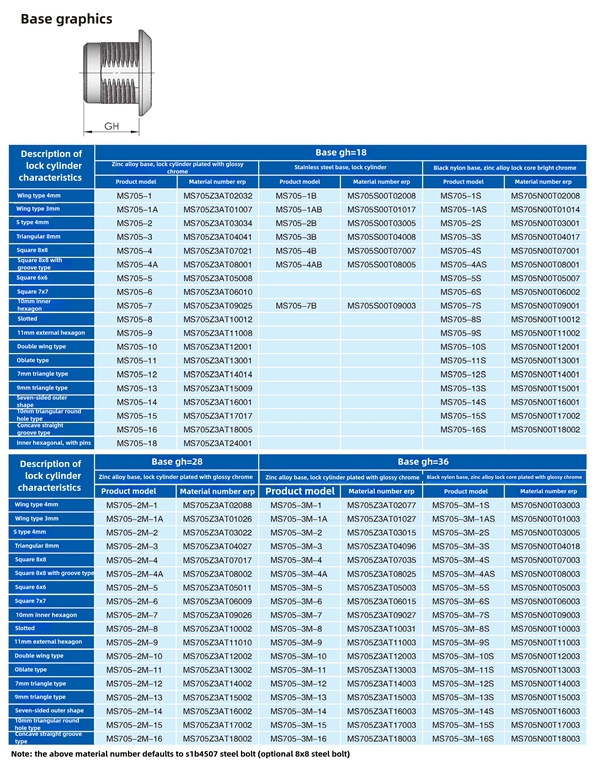

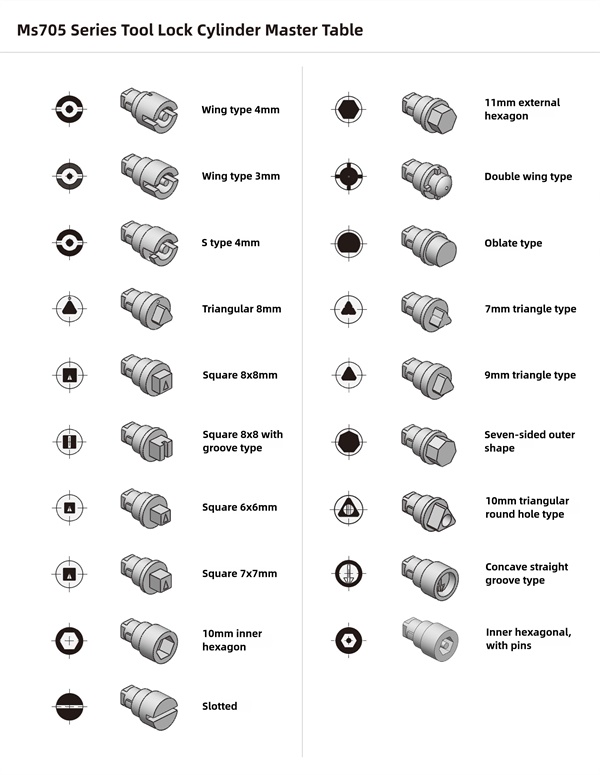

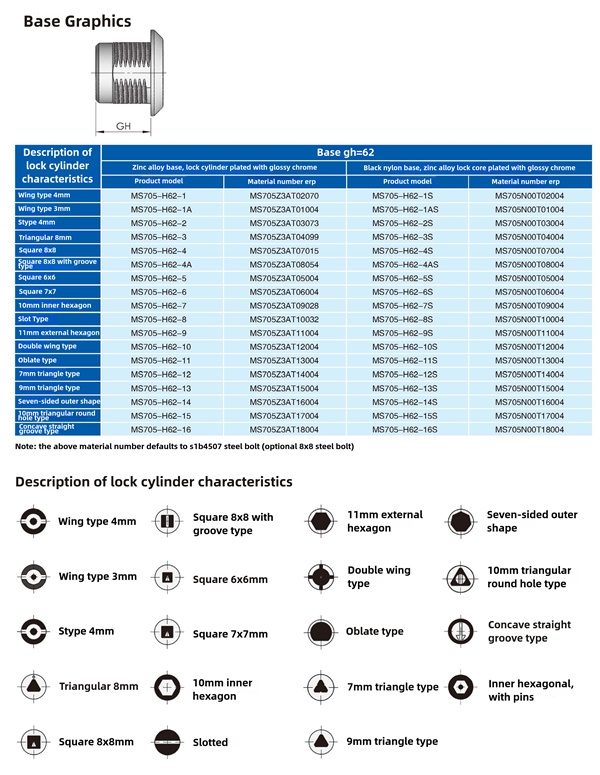

Technical Specifications

Diameter: 28 mm

Height: 45 ± 2 mm

Rotation Angle (Hook): 360°

Maximum Static Load: 270 N

Input Torque (Cam Core): 9 N·m

Recommended Nut Torque: 20 N·m

Protection class: IP54

Compatibility: Push-pull cabinet doors

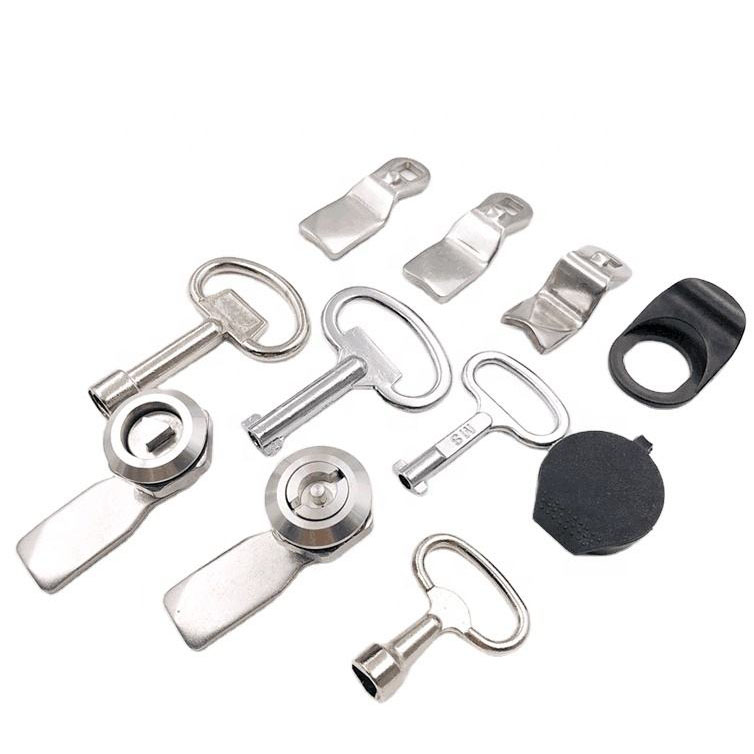

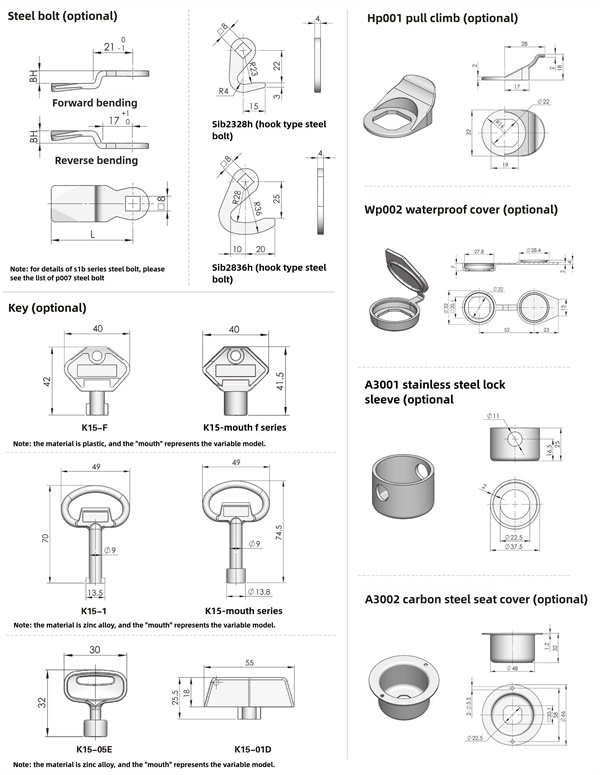

Components Included

Base Plate: Provides stable anchoring.

Cam Core: 90° rotating mechanism for secure locking.

Steel Bolt: Hook-type design with adjustable rotation.

Seal Pads & O-Rings: Waterproof sealing system.

Screws & Nuts: Pre-assembled for quick installation.

Drive Shaft: Ensures smooth cam operation.

Applications

Suitable for industrial cabinets, storage units, commercial furniture, and any application requiring a reliable,  low-maintenance locking solution. Its compact size and high load-bearing capacity make it ideal for heavy-duty use  cases.

Design Notes

Aesthetic Integration: Minimalist design with customizable finishes to match cabinet aesthetics.

Longevity: Stainless steel option extends service life in corrosive environments (e.g., kitchens, warehouses).

Compliance: Meets international standards for torque and load specifications.

The MS705 cam lock combines engineering precision with user-friendly design, offering a cost-effective,  durable solution for secure and efficient door fastening. Refer to the attached diagrams for optimal installation  alignment and component positioning.
