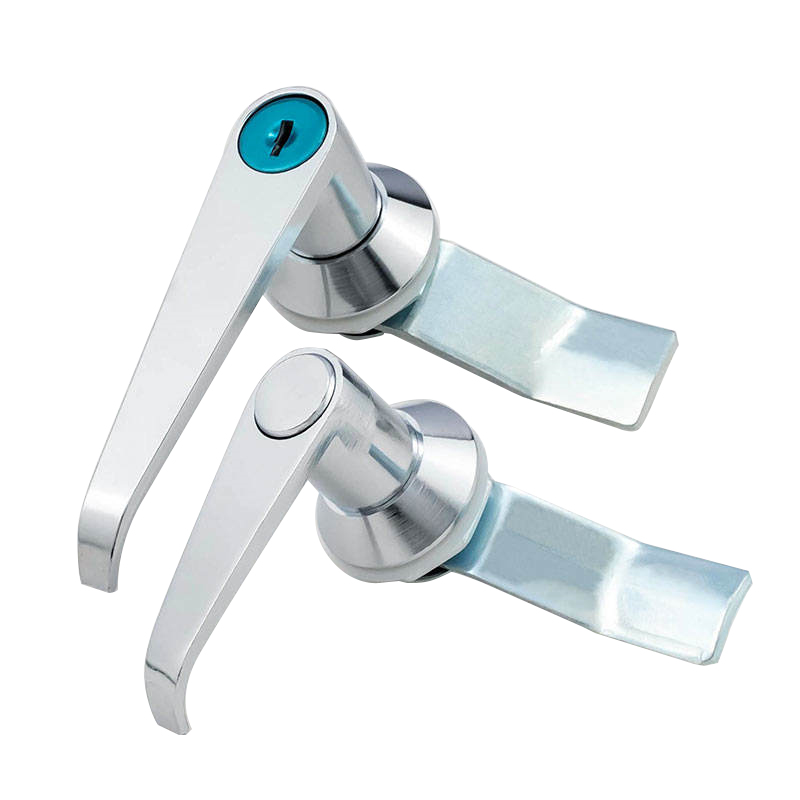

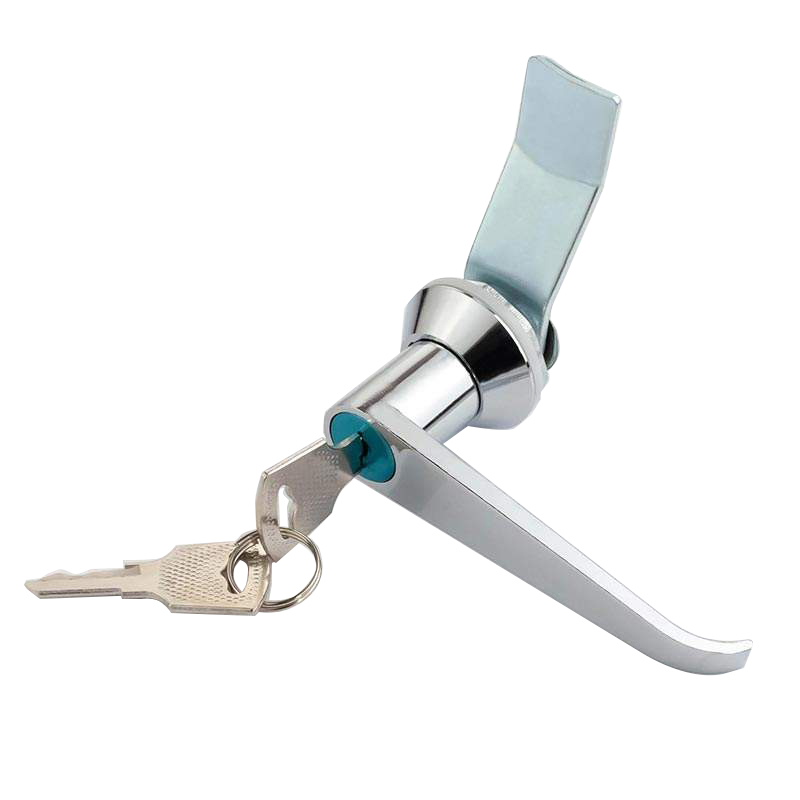

Key Features

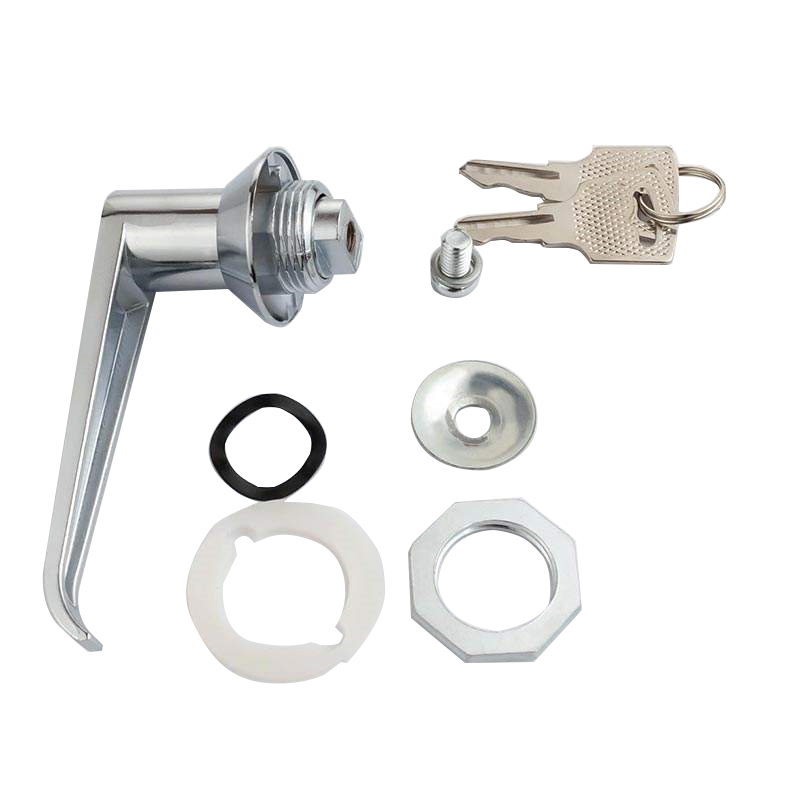

Material: Zinc alloy lock body and handle, carbon steel cam, stainless steel components, optional ABS handle
Surface Finish: Chrome-plated lock body, polished handle, zinc-plated carbon steel cam
Rotary Handle Mechanism: The lock features a 90° rotating handle, providing a smooth and efficient locking mechanism for secure closure

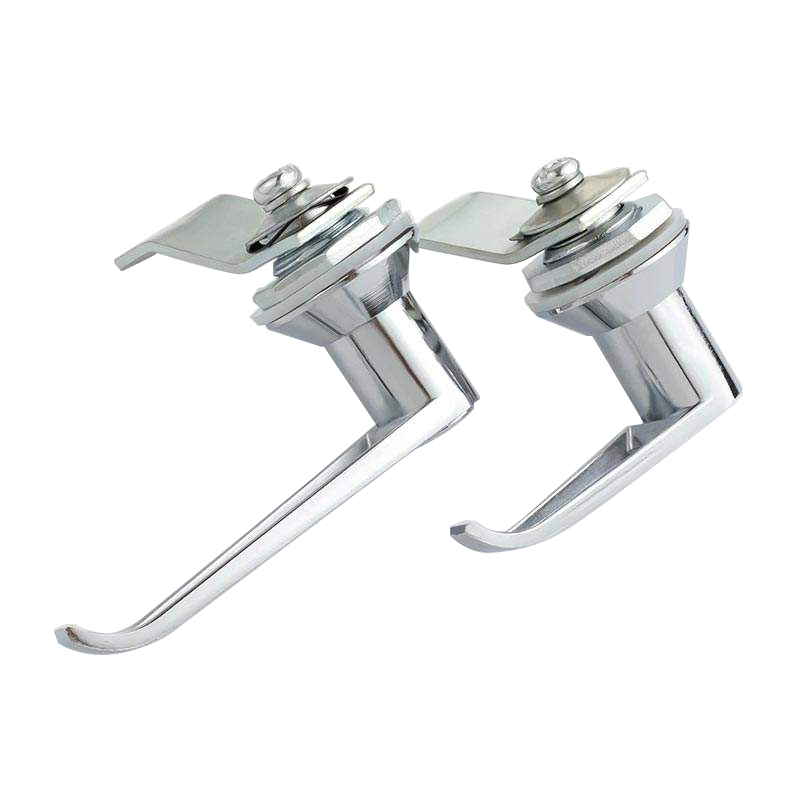

Cam Adjustment: Compatible with S1H4819 steel cam, allowing for customized installation and enhanced locking functionality
Performance Parameters
Handle Load Capacity: 220N
Rotary Handle Operating Torque: 20N·m
Maximum Insert Torque: 15N·m
Model Variants

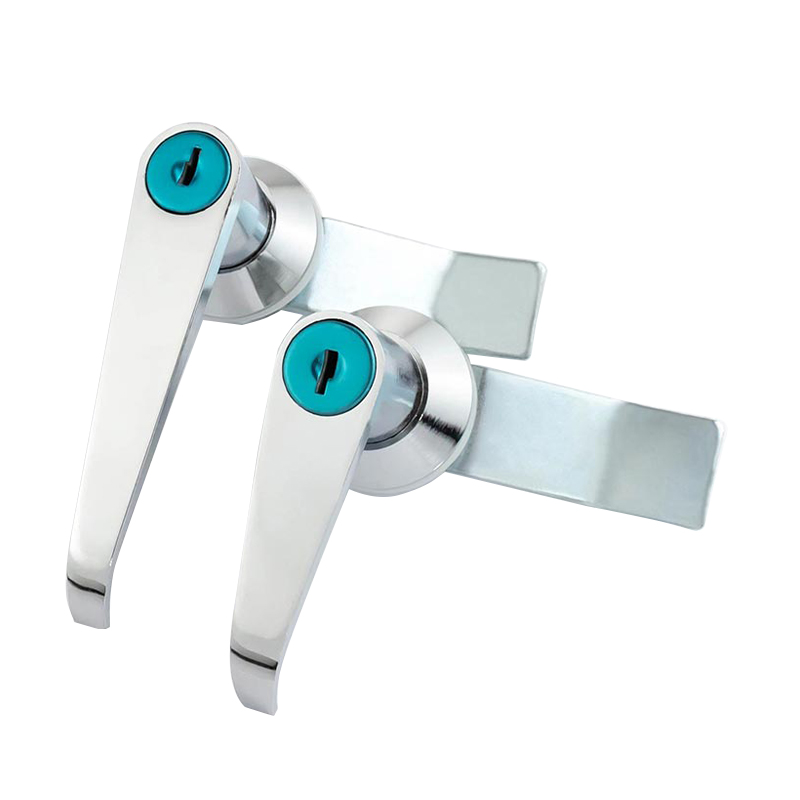

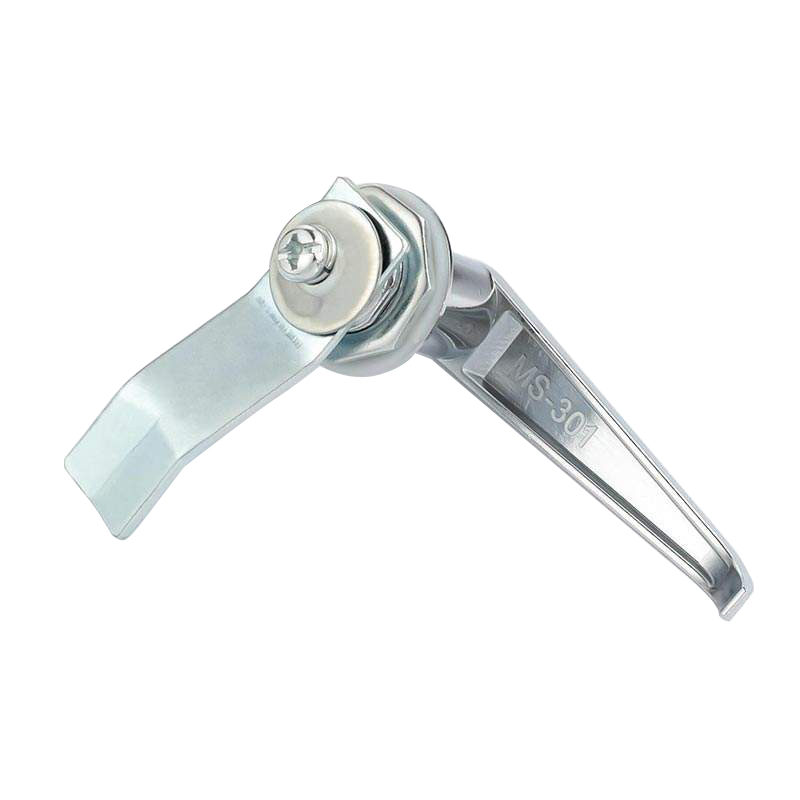

The MS301 Handle Lock is available in different configurations based on the lock core type and cam connection:
| Feature | Model Number | ERP Material Code |
| Without Lock Core | MS301-1 | MS301Z3A050008 |
| Without Lock Core | MS301-2 | MS301Z3A000001 |
| With Lock Core (Cam Connection) | MS302-1 | MS302Z3A000001 |
| With Lock Core (Cam Connection) | MS302-2 | MS302Z3A000003 |
Technical Drawings & Cut-Out Dimensions
The MS301 Handle Lock has detailed technical specifications, including precise cut-out dimensions for seamless integration into various enclosures. The optional S1H4819 steel cam allows for enhanced locking performance and greater adaptability to different installation needs.

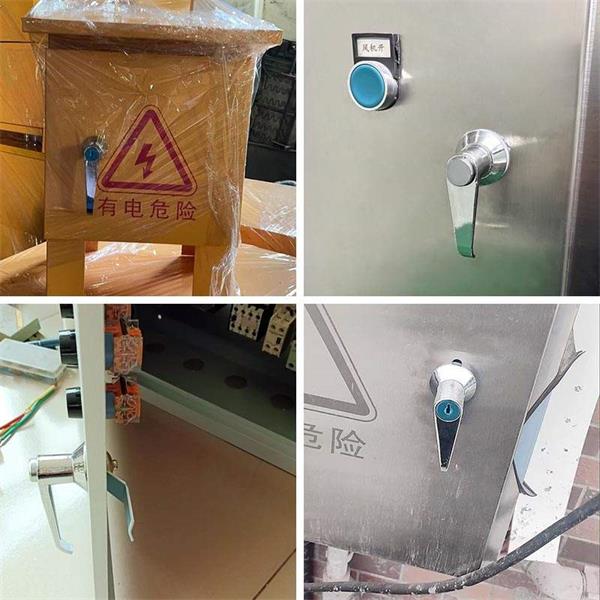

Applications
This handle lock is widely used in:
Electrical enclosures
Industrial control cabinets
Distribution boxes
Network and telecommunications equipment
Machinery and automation systems
With its robust design, ergonomic handle, and secure locking mechanism, the MS301 Handle Lock offers reliability and ease of use, making it an excellent choice for industrial and commercial applications.
