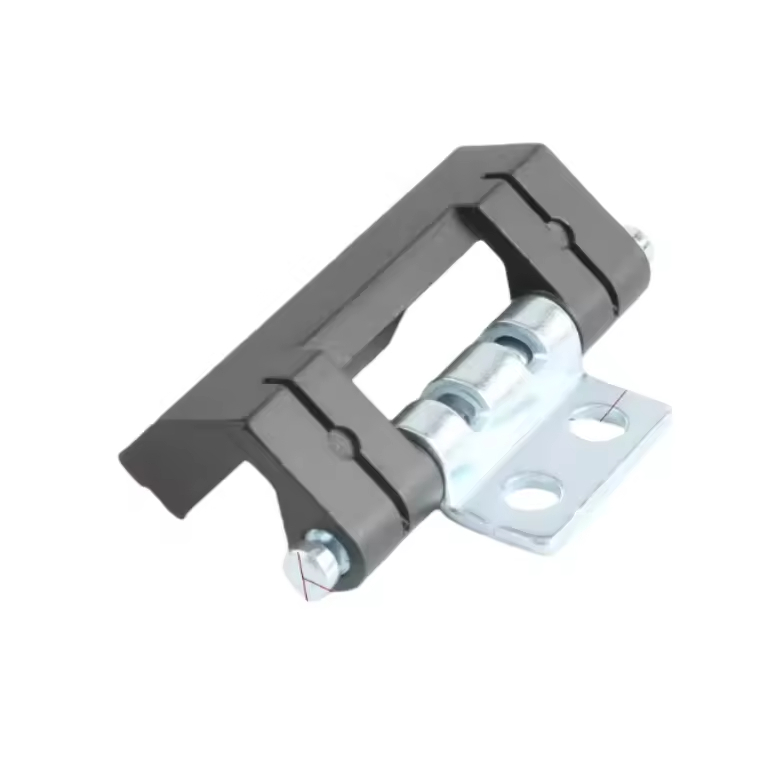

In industrial power distribution and electrical enclosure systems, hinges are far more than simple mechanical connectors—they are critical components that ensure door stability, long-term reliability, and seamless operation in demanding environments. The CL201 Series Adjustable Zinc Alloy Industrial Door Hinges (including models CL201-1 through CL201-8) are purpose-built to meet the diverse needs of distribution cabinets, energy enclosures, and industrial equipment doors. Combining precision engineering, durable materials, and modular design, these hinges offer unmatched adaptability, strength, and corrosion resistance, making them a staple choice for electrical cabinet manufacturers and facility managers worldwide.

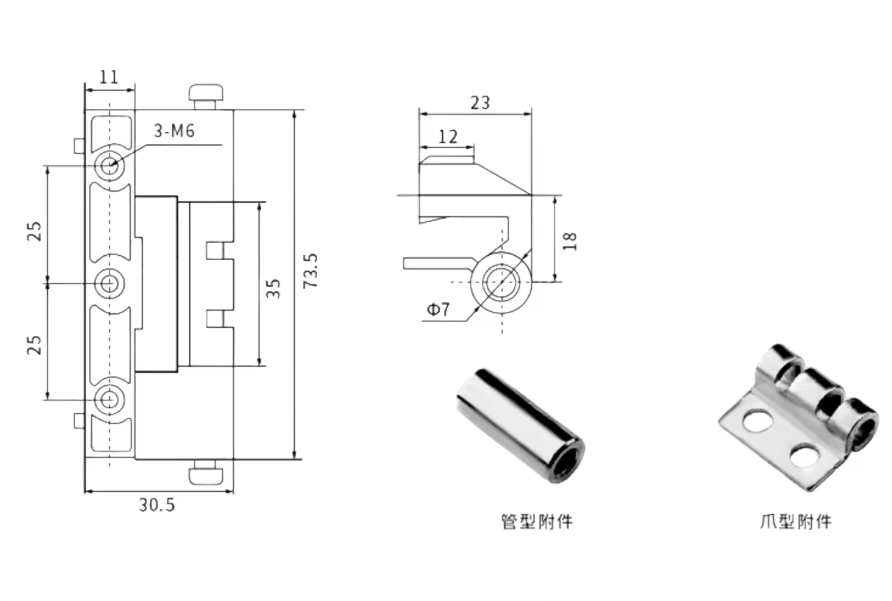

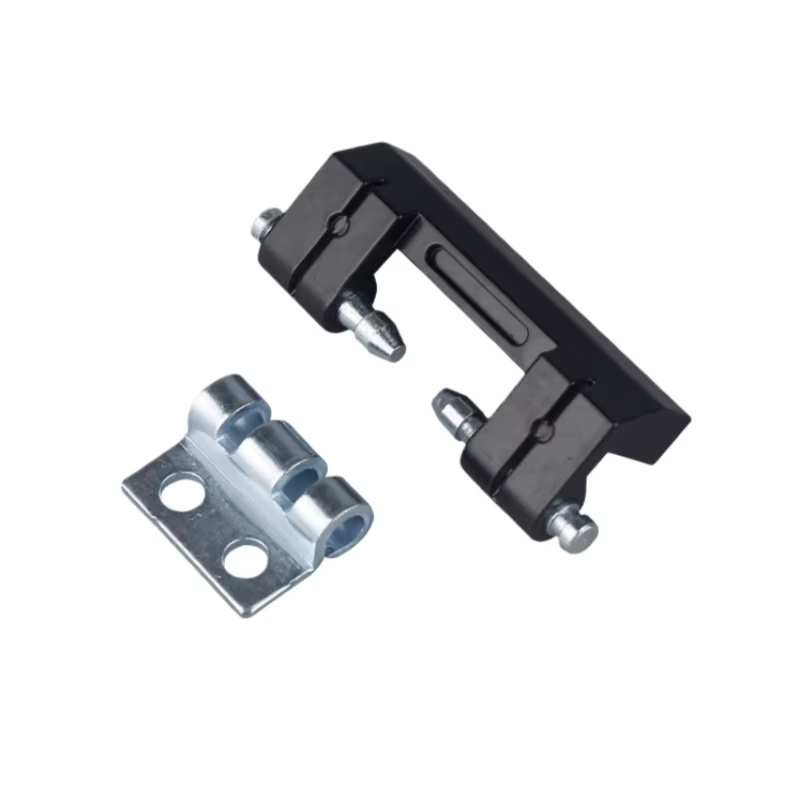

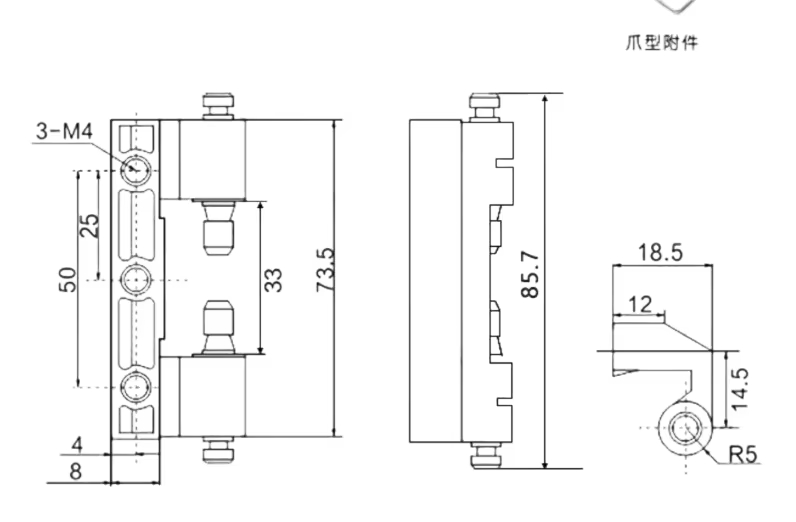

The CL201 series hinges are engineered with a modular, adjustable structure to accommodate varying cabinet sizes and installation requirements. As reflected in the technical drawings, the hinges feature standardized dimensions across the series, with key parameters tailored for versatility. The base model has a height of 73.5 mm (or 85.7 mm for extended versions), with a 50 mm vertical span for mounting holes. Two primary mounting configurations are available: one with three M4 threaded holes spaced 25 mm apart, and another with three M6 threaded holes for heavier load applications. The hinge’s core mechanism includes a precision-machined barrel with an R5 radius (or Ø7 pin diameter) for smooth rotation, paired with specialized attachments: claw-type fittings (18.5 mm × 14.5 mm) and pipe-type fittings, which enable quick, secure installation on both flat and framed cabinet doors. The adjustable design allows for minor alignment corrections during installation, eliminating the need for custom machining and ensuring a perfect fit on standard and non-standard enclosures alike.

While the core hinge body is crafted from high-grade zinc alloy, renowned for its excellent castability, dimensional stability, and impact resistance, critical components like the hinge pin and mounting brackets are constructed from 304 stainless steel. This hybrid design leverages the best properties of both materials: zinc alloy provides structural rigidity and cost-effectiveness, while 304 stainless steel delivers superior corrosion resistance for moving parts, preventing rust and wear in high-humidity or outdoor environments. The manufacturing process combines precision die-casting for zinc alloy housings and investment casting (lost-wax casting) for stainless steel components, ensuring tight tolerances, smooth surfaces, and consistent quality across every unit. Die-casting allows for the creation of complex, lightweight zinc alloy structures with uniform wall thickness, while investment casting produces dense, durable stainless steel parts with minimal secondary machining. The result is a hinge that balances strength, weight, and cost, with a long service life even under frequent use.

The CL201 series hinges are designed for universal use in distribution cabinets, energy storage enclosures, control panels, and industrial equipment doors. Their adjustable design makes them suitable for both light-duty control cabinets and heavy-duty power distribution enclosures, supporting door weights ranging from 5 kg to 30 kg depending on the model. The claw-type attachments allow for quick installation on sheet metal doors without welding, while the pipe-type fittings are ideal for tubular frame enclosures. In power distribution applications, these hinges ensure that cabinet doors remain securely closed, protecting sensitive electrical components from dust, moisture, and physical damage. For outdoor energy cabinets, the combination of zinc alloy and 304 stainless steel provides excellent resistance to UV exposure, temperature fluctuations, and corrosive atmospheres, reducing maintenance needs and extending the enclosure’s service life. The hinges’ smooth rotation also ensures easy access to internal components during maintenance, improving serviceability and reducing downtime.

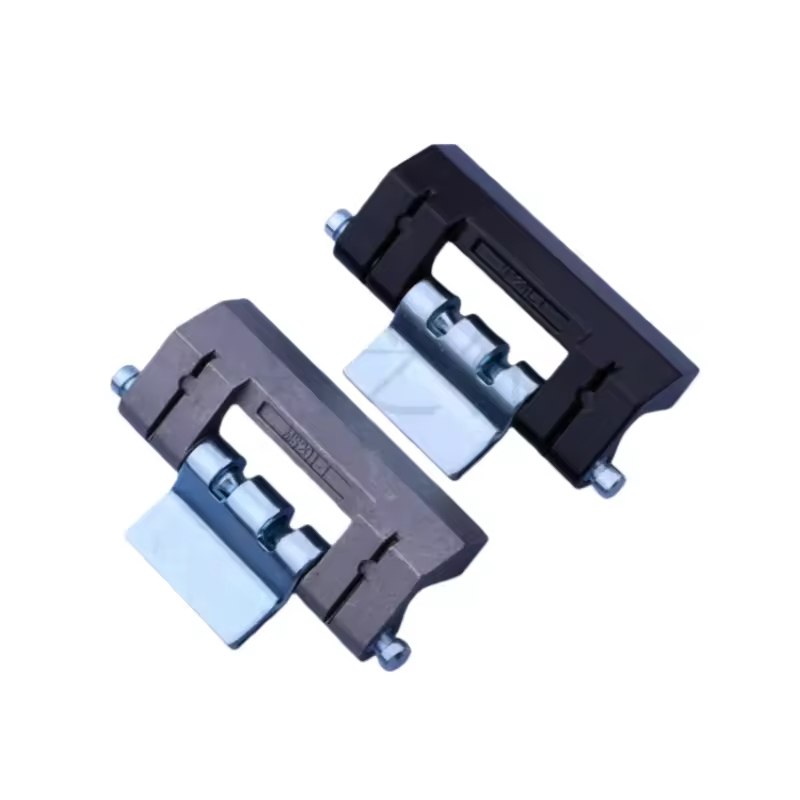

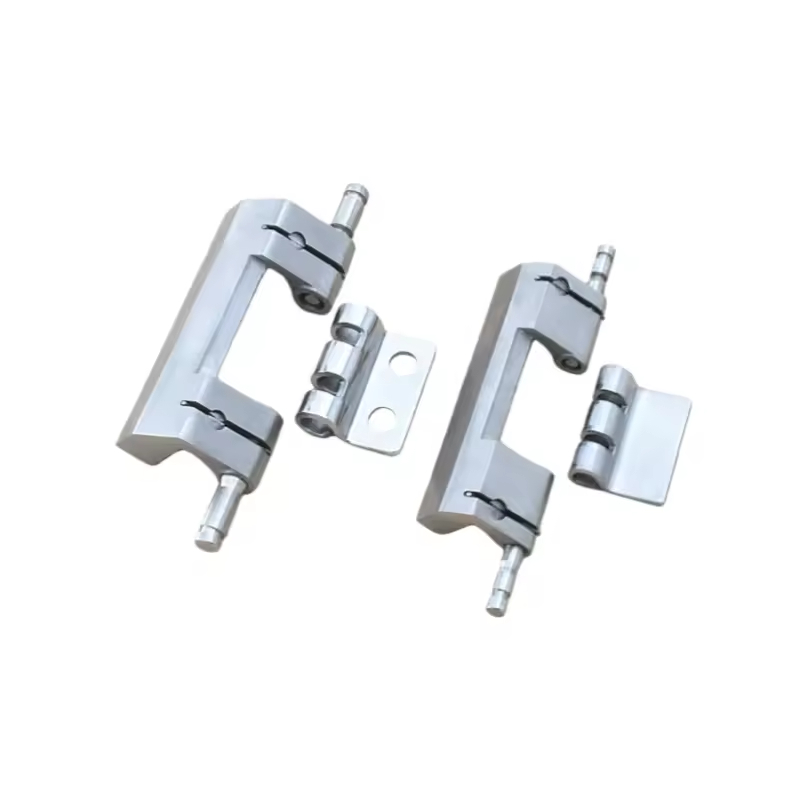

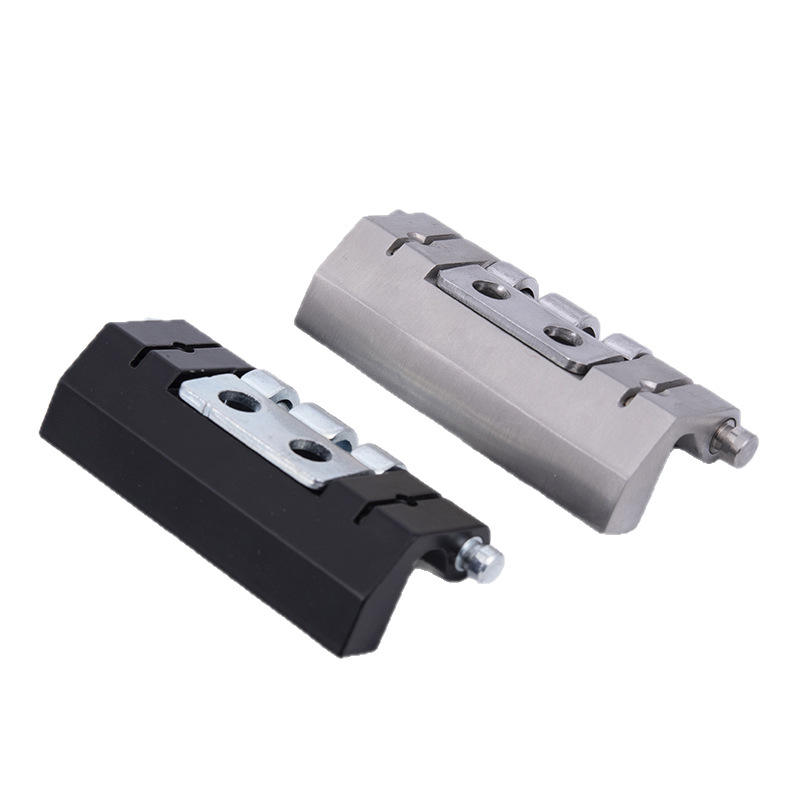

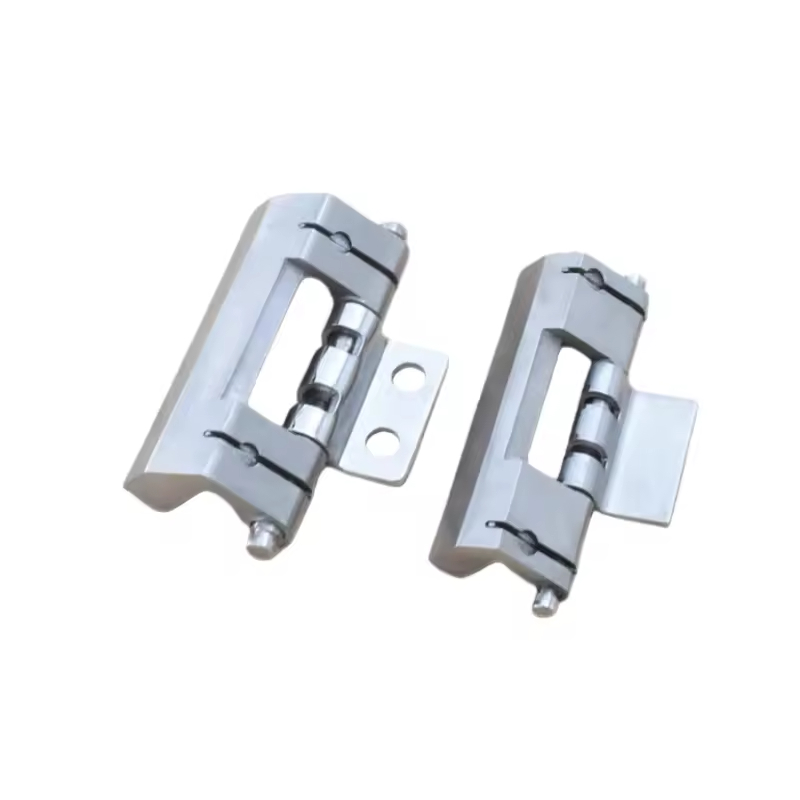

Unlike fixed-size hinges that require custom fitting for each enclosure, the CL201 series offers multiple models (1 through 8) to match different door thicknesses, load capacities, and installation requirements. The hybrid material construction eliminates the common weaknesses of all-zinc or all-steel hinges: zinc alloy housings prevent the rust-related swelling that plagues carbon steel hinges, while stainless steel pins resist the wear and galling that can occur with all-zinc moving parts. The precision die-cast zinc alloy body also provides better vibration resistance, making these hinges ideal for enclosures in industrial facilities with heavy machinery. Additionally, the series is available in multiple finishes, including black powder coating and polished stainless steel, to match the aesthetic requirements of different enclosure designs while providing an extra layer of corrosion protection.

The CL201 Series Adjustable Zinc Alloy Industrial Door Hinges represent a versatile, high-performance solution for modern electrical and industrial enclosures. Their modular design, hybrid material construction, and precision manufacturing make them suitable for a wide range of applications, from standard distribution cabinets to specialized energy storage enclosures. By combining the cost-effectiveness of zinc alloy with the durability of 304 stainless steel, these hinges deliver reliable, long-lasting performance in demanding environments. For engineers and manufacturers seeking a flexible, dependable hinge solution that balances performance, cost, and adaptability, the CL201 series stands out as a top-tier choice, ensuring the functionality and longevity of critical electrical equipment enclosures.
