MS734 Panel Zinc Alloy Cabinet Cam Lock

MS734 Cam Lock: Precision, Security, and Convenience Combined

The MS734 cam lock represents a robust and versatile solution for secure access in cabinets, lockers, enclosures, and various industrial applications. Designed with both durability and ease of use in mind, this lock provides an ideal balance between mechanical strength, aesthetics, and operational convenience.

Material and Build Quality
Constructed from a zinc alloy base with a steel lock core, the MS734 cam lock ensures a high level of security while maintaining resistance to wear and corrosion. The steel spindle adds additional strength, providing reliable torque transmission during operation. The surface of the lock and handle is polished, giving it a sleek, flat appearance that is visually appealing while also being resistant to scratches and environmental factors. This combination of materials makes the MS734 suitable for both industrial and commercial environments.

Design and Mechanism

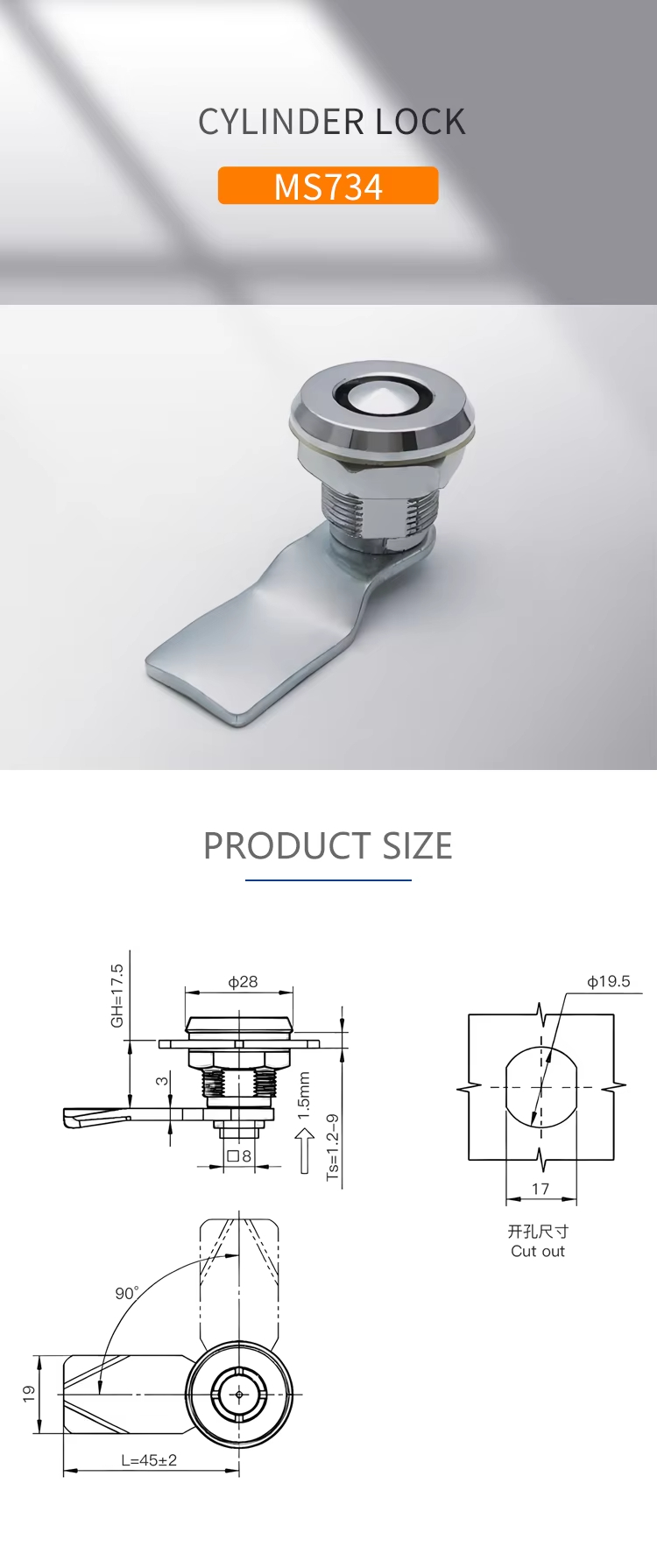

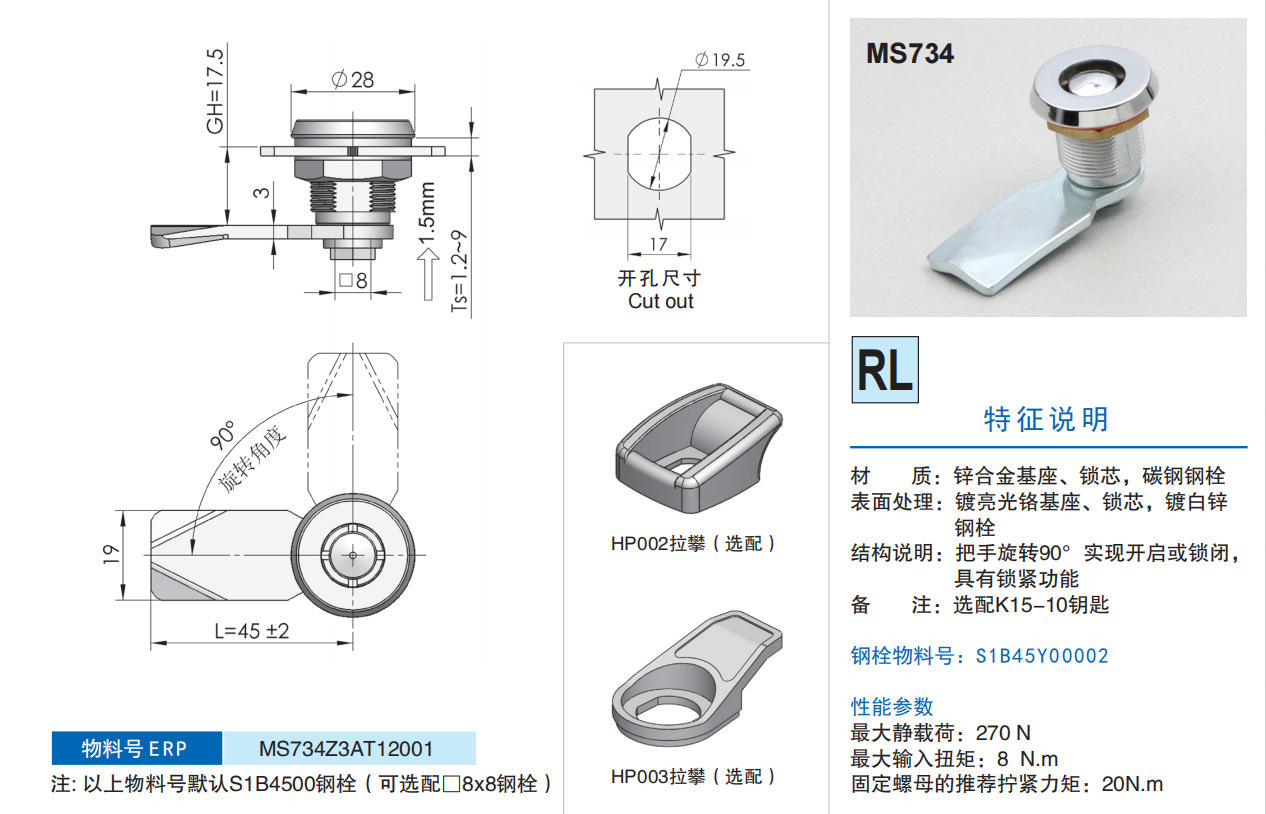

The MS734 cam lock features a 90-degree rotational handle mechanism, which allows for easy opening and closing with a simple turn. This design ensures smooth and precise operation while preventing accidental rotation. The lock comes with a cylinder that is compatible with the optional K15-10 key system, providing controlled access and enhanced security. Its dimensions are compact yet versatile, with a cylinder diameter of 19.5 mm, an overall length of 45 mm for the cam, and a cutout size of 17 x 19.5 mm, making it compatible with standard panel and cabinet designs.

Performance and Reliability
One of the key advantages of the MS734 cam lock is its performance under load. It has a maximum static load capacity of 270 N and a maximum input torque of 8 N·m, ensuring the lock can withstand significant mechanical stress without failure. The recommended tightening torque for the fixing nut is 20 N·m, which secures the lock firmly in place, preventing loosening over time. This high-performance rating makes the MS734 particularly suitable for applications where security and durability are critical.

Optional Accessories and Flexibility
The MS734 cam lock can be equipped with optional handles, such as HP002 and HP003, to accommodate different operational needs. These handles provide ergonomic operation while allowing customization for different panel configurations. The lock can be installed quickly and easily, thanks to its simple screw-fastening mechanism, reducing setup time and ensuring reliable performance immediately after installation.

Aesthetic and Functional Advantages

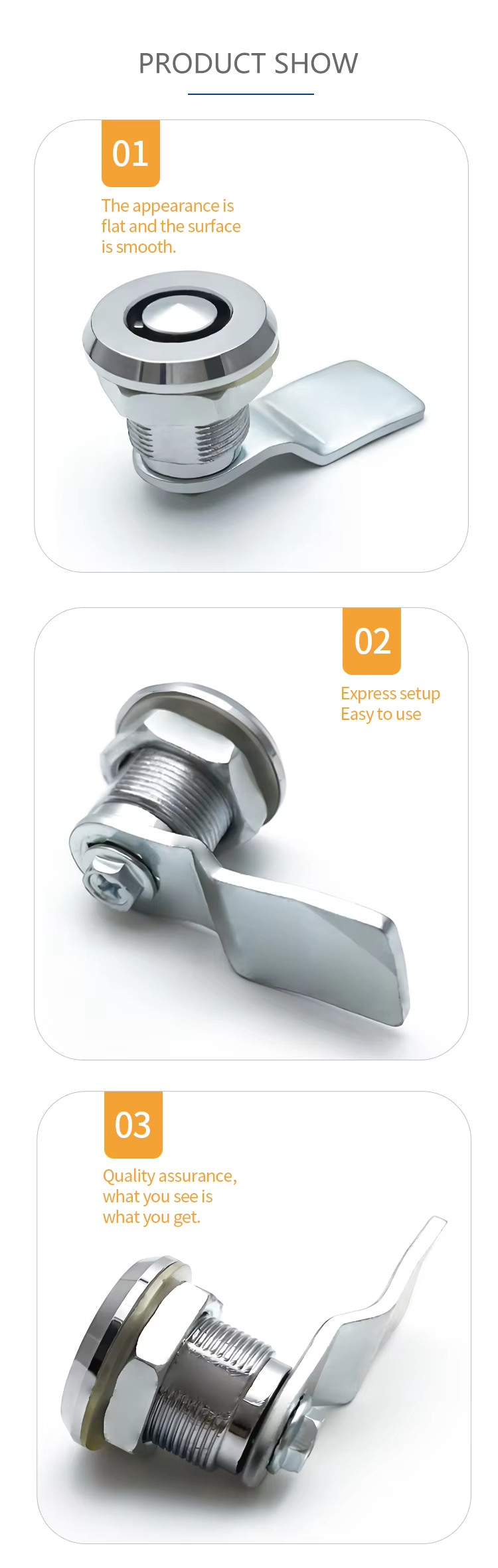

In addition to its mechanical reliability, the MS734 cam lock features a polished, flat surface that integrates seamlessly with modern cabinetry or enclosures. Its sleek design not only enhances appearance but also reduces the risk of snagging or injury. Users benefit from an intuitive and responsive locking mechanism, ensuring both security and convenience. High-quality assurance guarantees that the product performs exactly as expected, providing peace of mind for both manufacturers and end-users.

Applications
The MS734 cam lock is widely applicable in industrial cabinets, vending machines, office furniture, electrical enclosures, and other secure storage systems. Its combination of robust materials, precise mechanical operation, and aesthetic design makes it an ideal choice for both professional and commercial environments.

Conclusion
Overall, the MS734 cam lock is a premium locking solution that balances strength, security, and ease of use. Its compact yet durable design, combined with optional handles and high load capacity, ensures it meets the needs of demanding applications. With its polished finish, reliable 90-degree rotational mechanism, and versatile installation options, the MS734 stands out as a trusted choice for anyone seeking a high-quality cam lock solution.
