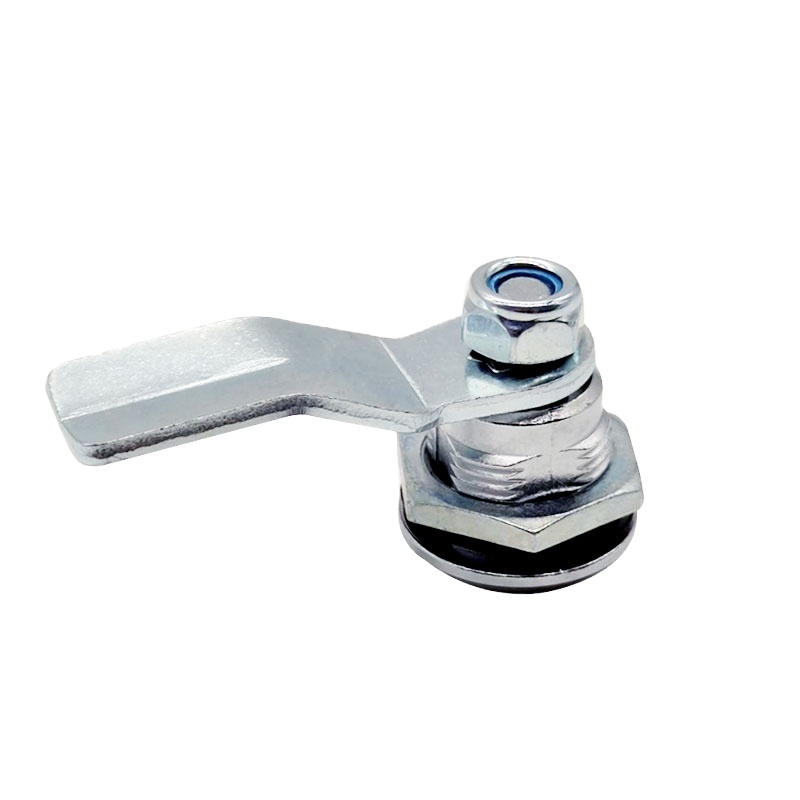

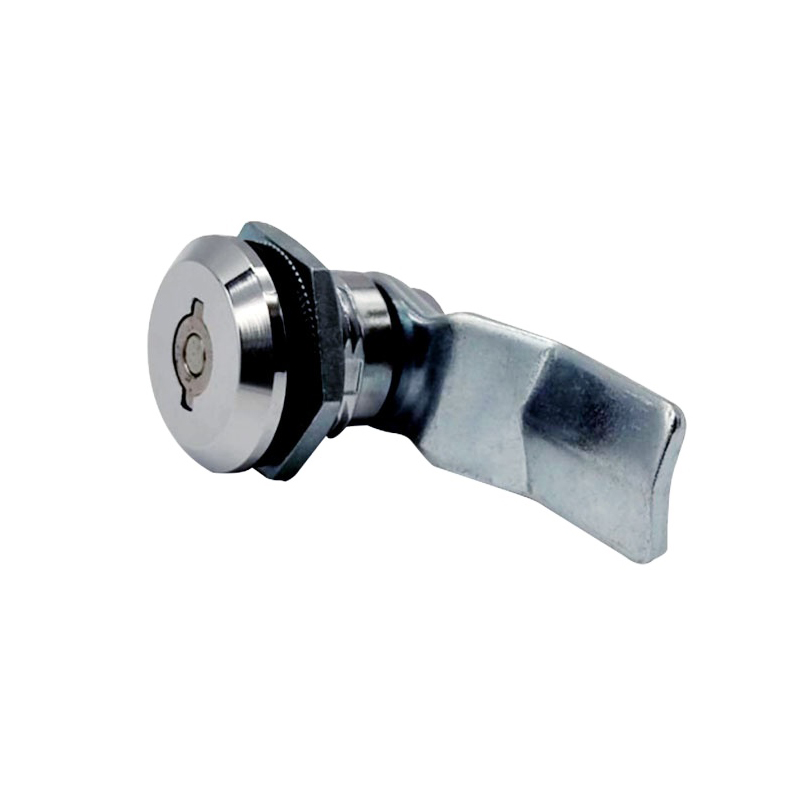

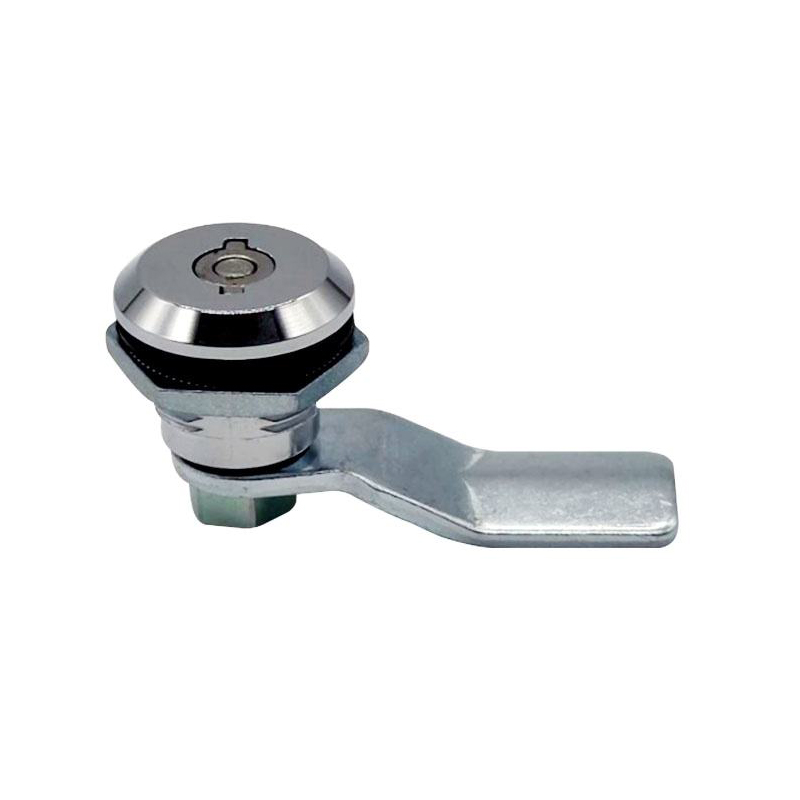

MS706 Stainless Steel Cam Lock

Key Features

Material Composition:

Lock Base: Zinc alloy

Lock Cylinder: Zinc alloy

Bolt: Carbon steel (Steel bolt material code: s1b33y06002, default s1b3306)

Surface Finish:

Base: Bright chrome-plated

Bolt: White zinc-plated

Operation:

180° rotation angle for opening/closing

Standard key: k130

Performance:

Maximum static load: 100N

Recommended torque for nut tightening: 20 N·m

Dimensions:

Lock cylinder diameter: Ø22 mm

Panel cutout: Ø19.5 mm x 16.5 mm

Cam length: L = 33 ±1 mm

Cam tongue width: 8 mm

Total height: 25 mm (body) + 7.5 mm (head)

Installation:

The lock is designed for easy installation with a standard panel cutout. Its compact design and precise fit allow seamless integration into metal or plastic panels. A 180° rotation engages or releases the locking mechanism, providing a reliable and user-friendly operation.

Accessory Compatibility:

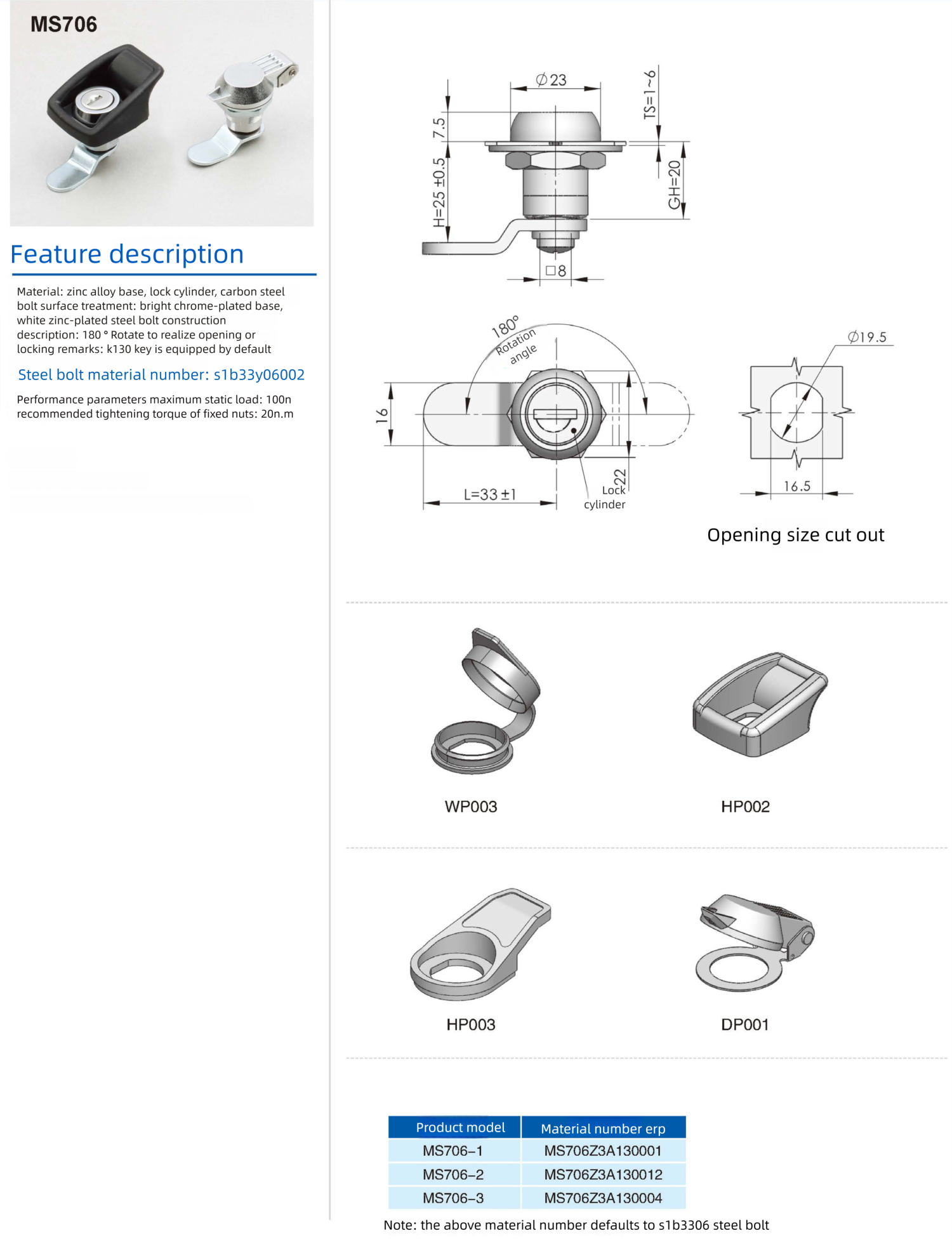

The MS706 series supports various handle and protective cap accessories to enhance functionality and aesthetics:

WP003 – Flip-top protective cap

HP002 / HP003 – Handle designs for enhanced grip

DP001 – Decorative and protective ring set

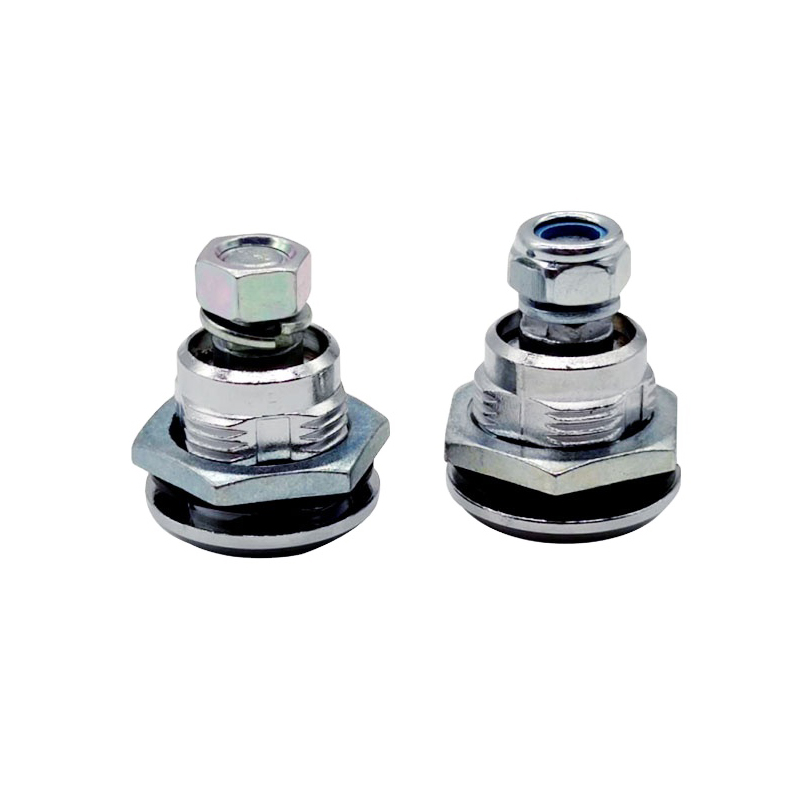

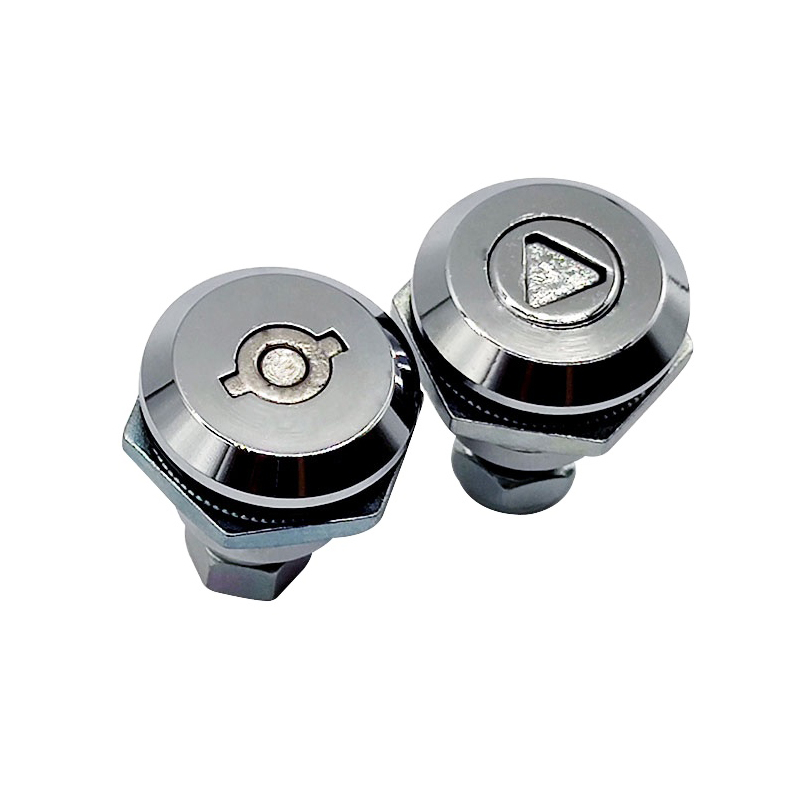

Variants & Part Numbers:

Each variant is tailored for different mounting or handle configurations while maintaining the core locking mechanism.

Applications:

The MS706 Stainless Steel Cam Lock is ideal for industries such as electrical, telecommunications, machinery, and transportation. It ensures long-lasting performance, user-friendly operation, and is designed to meet both functional and aesthetic requirements.
