MS857 T Handle Panel Lock

Key Features:

‌Material and Construction‌:

The MS857 utilizes a zinc alloy for the dust cover, handle, and bushing, providing robust protection against environmental factors.

The stainless steel panel and rotating shaft ensure longevity and resistance to corrosion.

The handle has a torque value of ≤14n.m, and the steel bolt bearing capacity is ≤510n, making it suitable for various locking mechanisms.

‌

Design and Dimensions‌:

The lock has a default key type of k130 and includes a waterproof cover as an optional accessory.

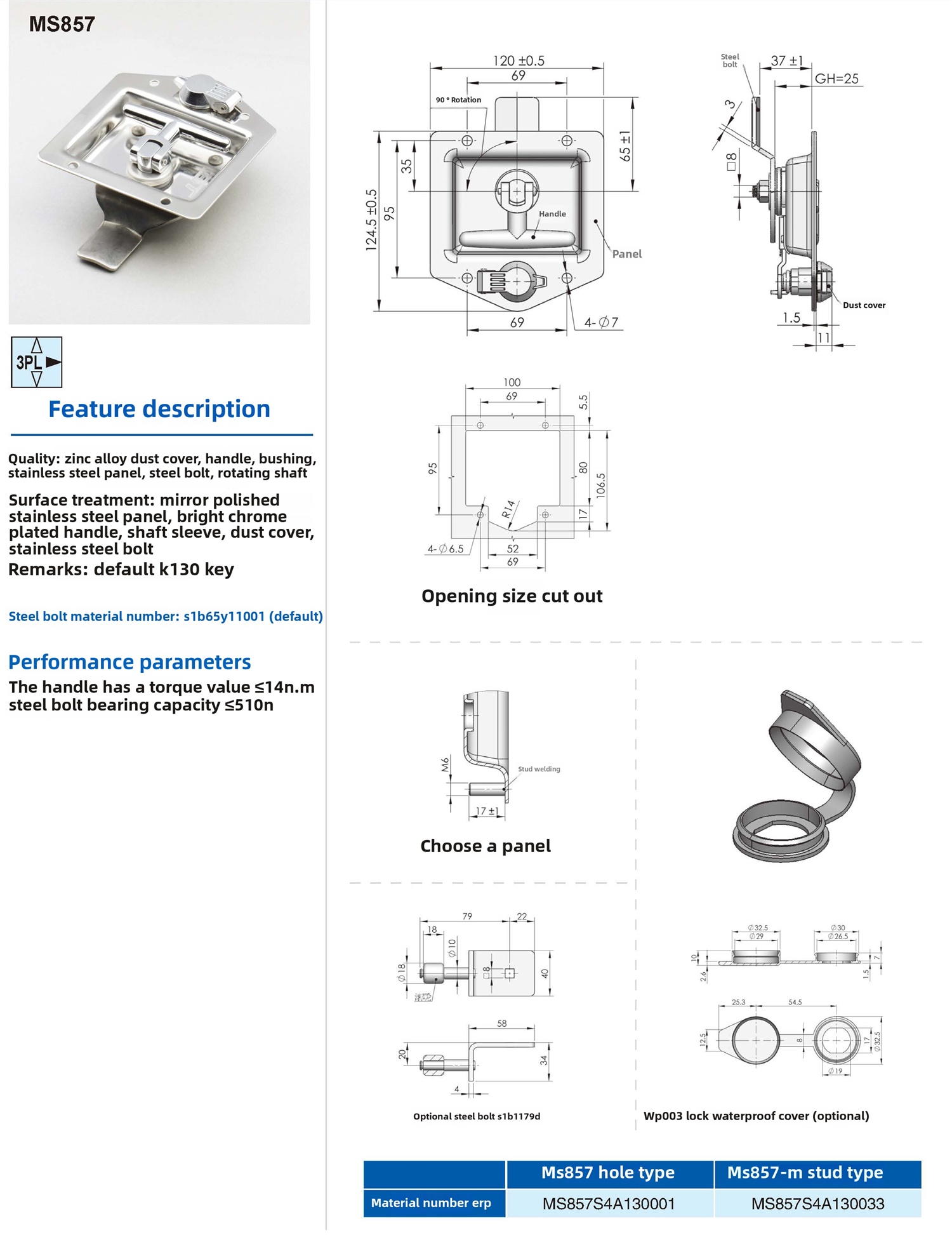

The opening size is precisely cut out to 120±0.5 mm, with a 69 mm panel and a 4-7 mm thickness.

The steel bolt material number is s1b65y11001, ensuring high standards of quality and performance.

‌

Performance Parameters‌:

The handle's torque value ensures smooth operation, while the steel bolt's bearing capacity guarantees reliable locking.

The optional waterproof cover (Wp003) provides additional protection against moisture, making it ideal for outdoor or high-humidity environments.

Applications:

The MS857 T Handle Panel Lock is versatile and can be used in various settings, including residential doors, office cabinets, and industrial equipment. Its robust construction and sleek design make it an excellent choice for both functional and aesthetic purposes.

Additional Information:

Based on online reviews and specifications, the MS857 T Handle Panel Lock receives high marks for its build quality and ease of installation. Users appreciate its sturdy construction and the smooth operation of the handle, which provides reliable locking without excessive effort. The option to customize with a waterproof cover further enhances its utility in diverse environments.

In summary, the MS857 T Handle Panel Lock is a reliable and versatile locking solution designed with high-quality materials and precise engineering. Its combination of durability, aesthetic appeal, and customizable options makes it a top choice for various locking applications.
