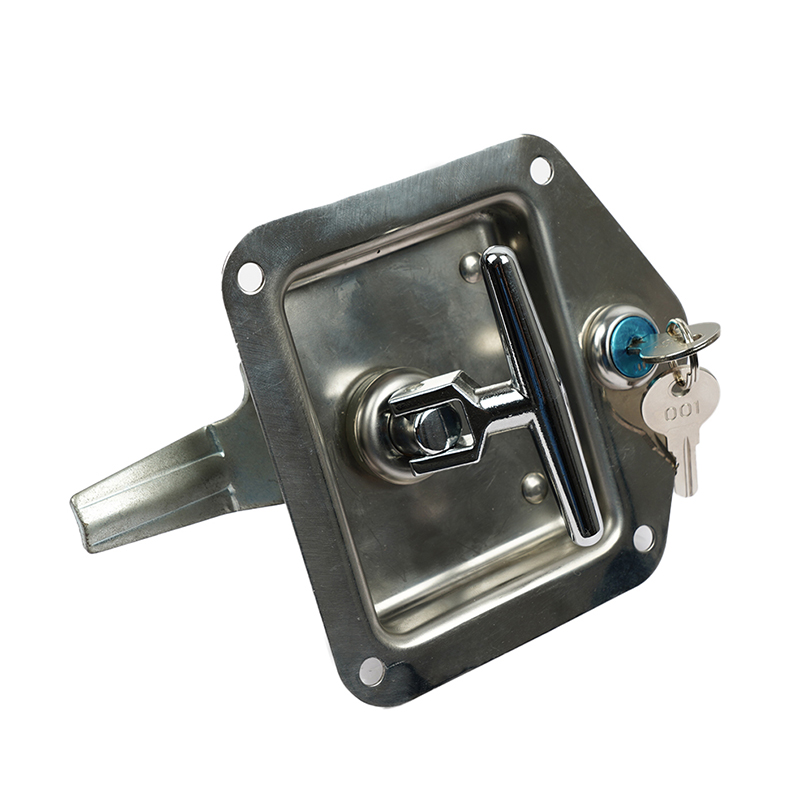

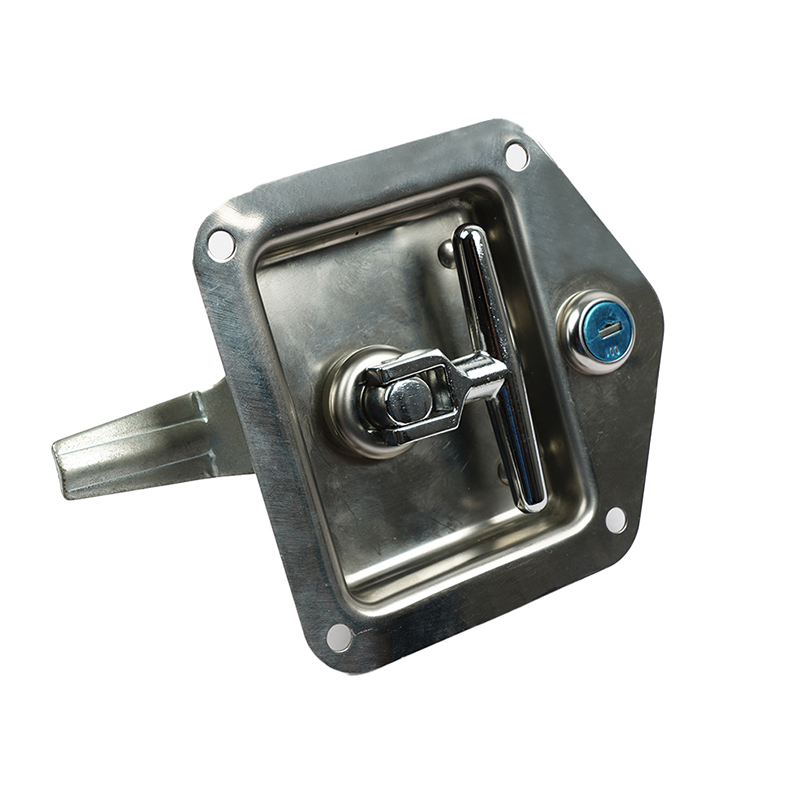

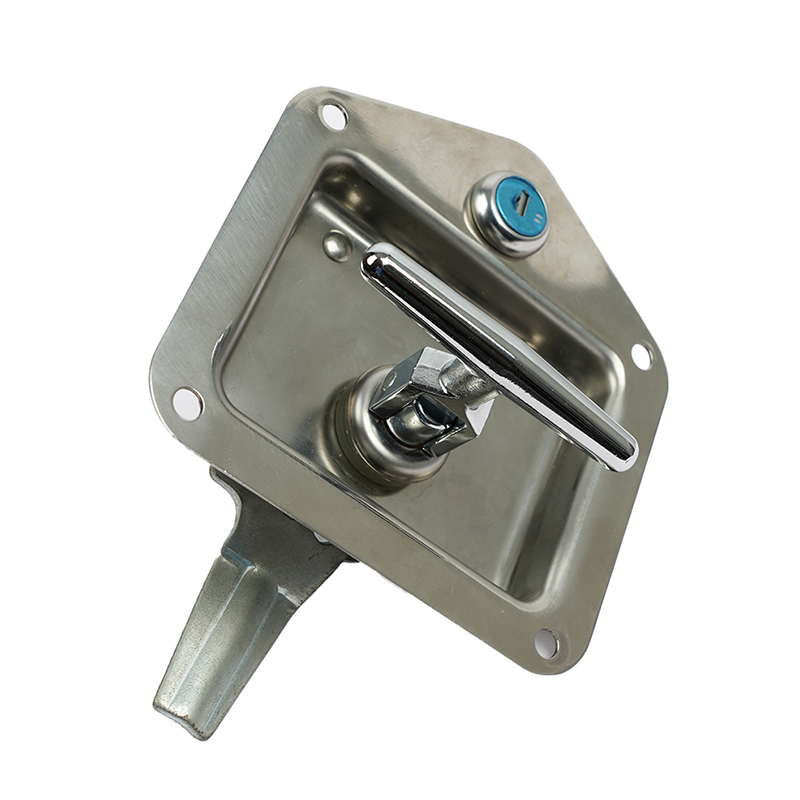

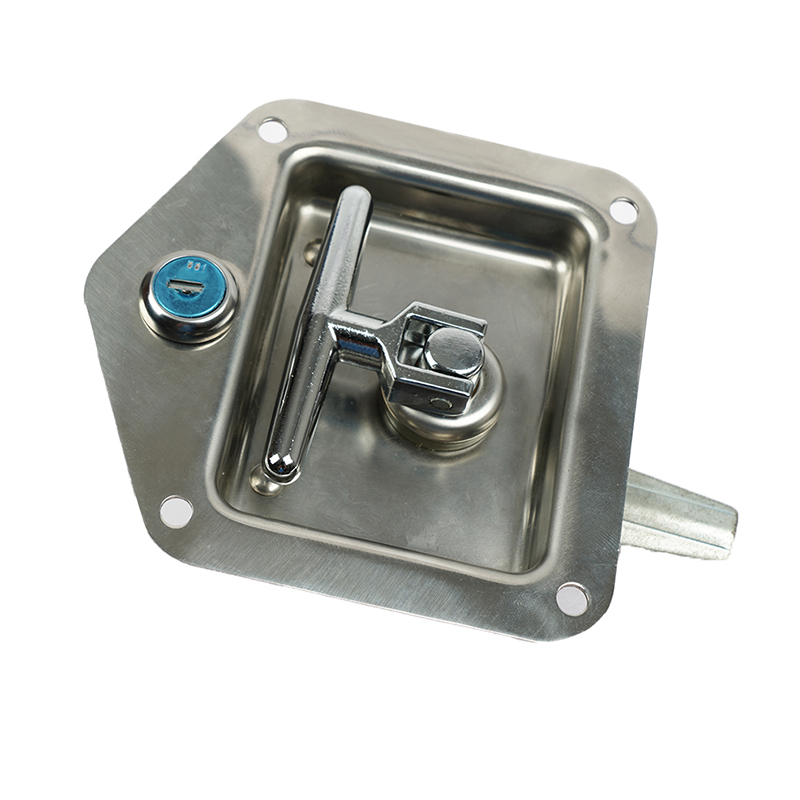

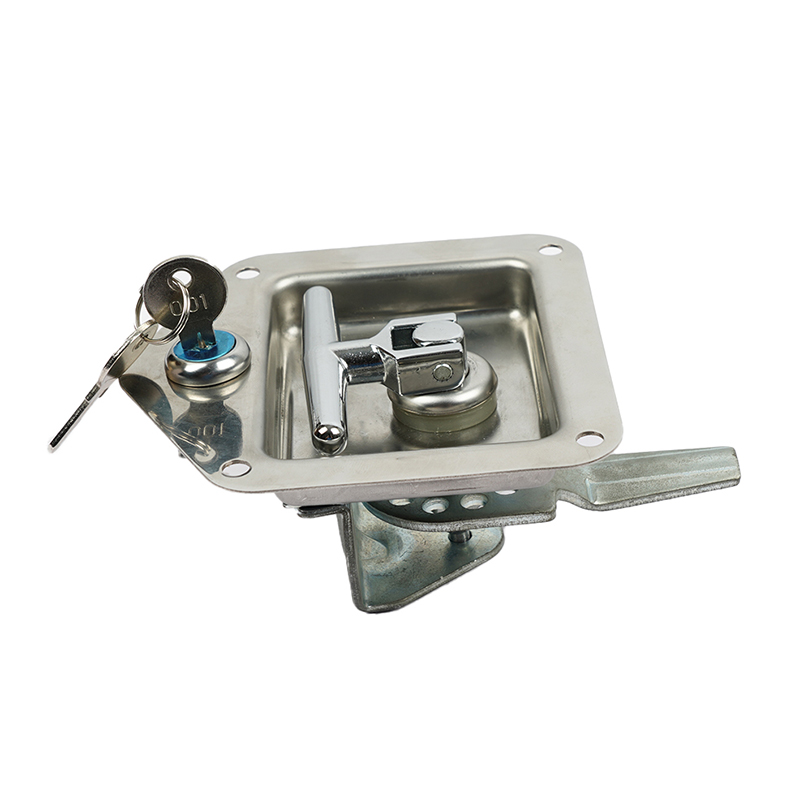

MS856 Panel Lock

Key Features

Material: Zinc alloy support frame, stainless steel handle, carbon steel cam, reinforced steel shaft

Surface Finish: Chrome-plated stainless steel panel, polished handle, zinc-plated carbon steel components

Integrated Handle Mechanism: Flush-mounted T-handle design for easy operation and a sleek appearance

High Security: Equipped with lock cylinder, keys, and anti-dust cap for added security and durability

Multiple Installation Options: Available in standard and screw-mounted (M-type) versions for different panel configurations

Performance Parameters

Handle Load Bearing Capacity: ≤24N·m

Model Variants

The MS856 Panel Lock is available in two versions based on installation type:

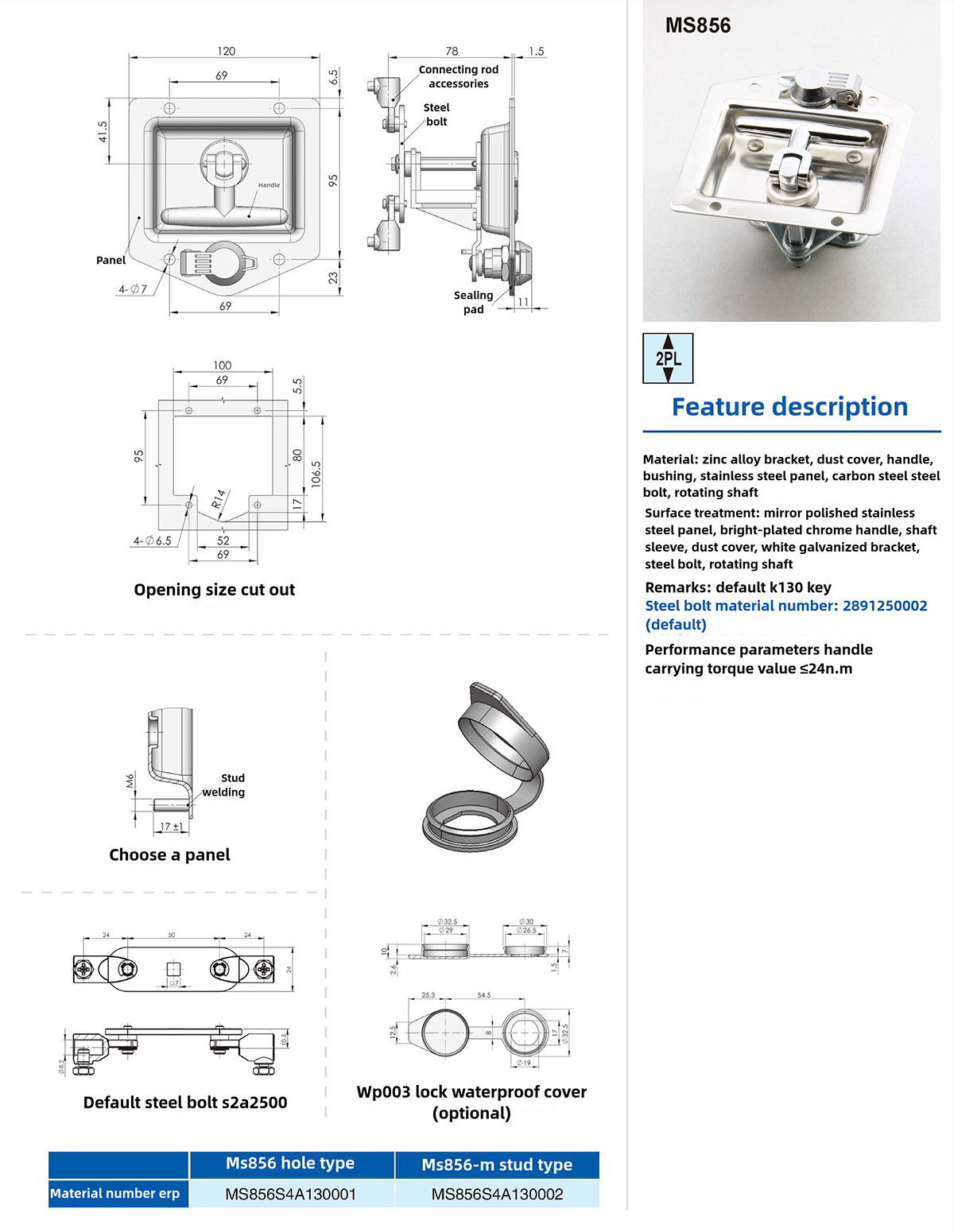

Technical Drawings & Cut-Out Dimensions

The MS856 Panel Lock features precise engineering specifications to ensure compatibility with various enclosure panels. The standard cut-out dimensions make it suitable for a range of applications, while the optional WP003 waterproof cap provides added protection in outdoor or harsh environments.

Applications

The MS856 Panel Lock is ideal for:

Industrial enclosures and electrical control cabinets

Toolboxes and heavy-duty storage compartments

Vehicle compartments and truck toolboxes

Outdoor equipment enclosures

With its heavy-duty construction, ergonomic T-handle design, and secure locking system, the MS856 Panel Lock offers a reliable and user-friendly solution for both indoor and outdoor industrial applications.
