1. Material and Construction

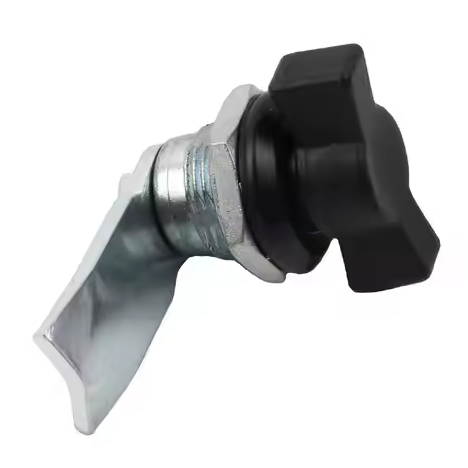

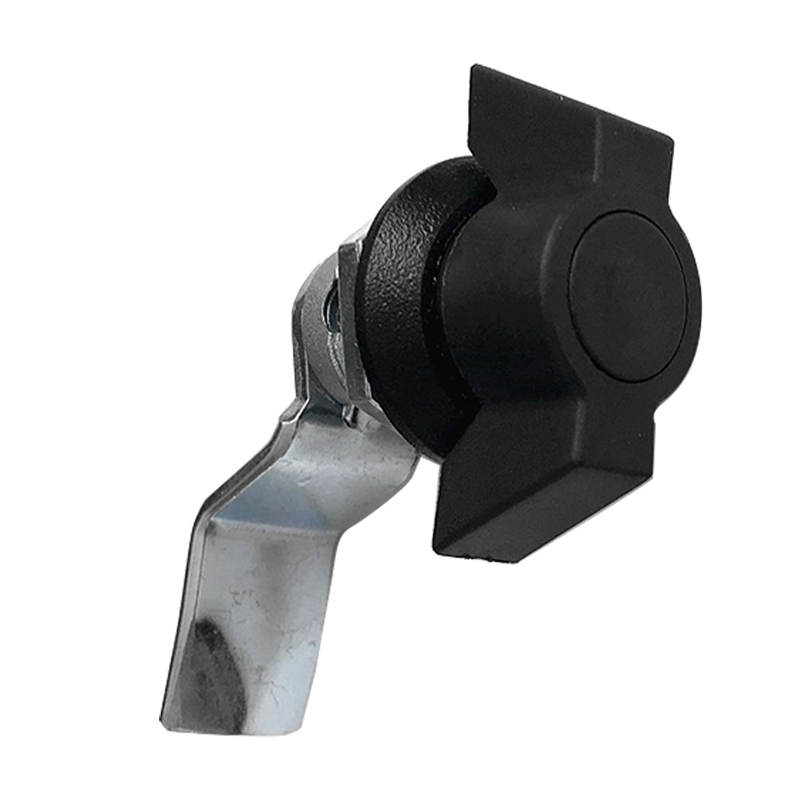

Base and Handle: The MS748 Cabinet Cam Lock features a zinc alloy base with two finish options: spray plastic (black light) for a matte aesthetic or bright chrome plating for enhanced corrosion resistance. The handle is crafted from zinc alloy, ensuring durability in demanding environments.

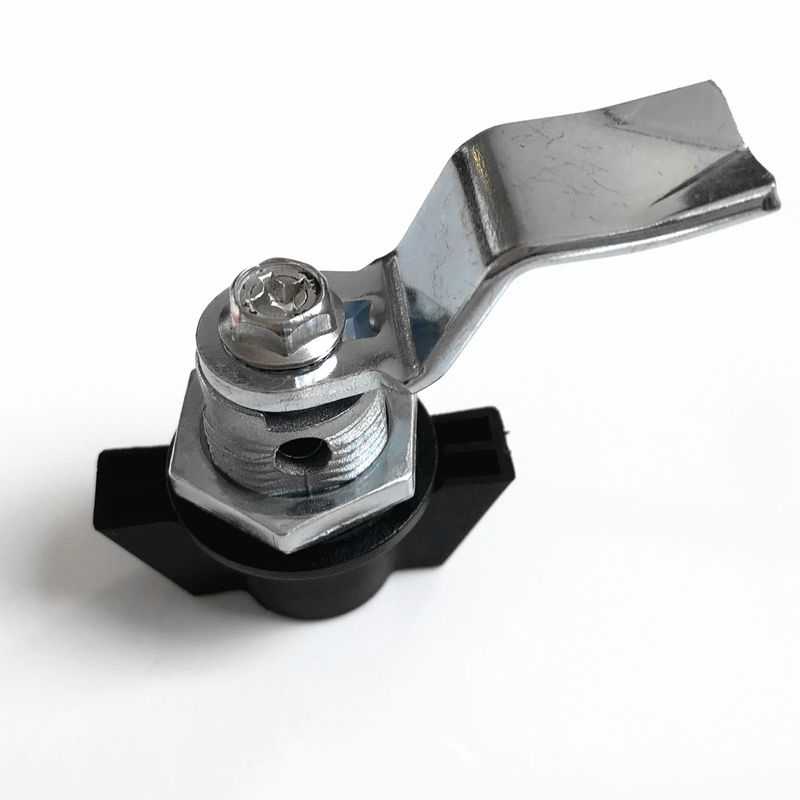

Bolt Design: A carbon steel bolt, treated with white zinc plating, provides exceptional resistance to wear, rust, and harsh conditions, extending the lock’s operational lifespan.
2. Functional Design
90° Rotation Mechanism: The handle rotates smoothly through a 90° arc, enabling quick and secure locking/unlocking while minimizing user effort. This design ensures a tight seal for cabinets and enclosures.

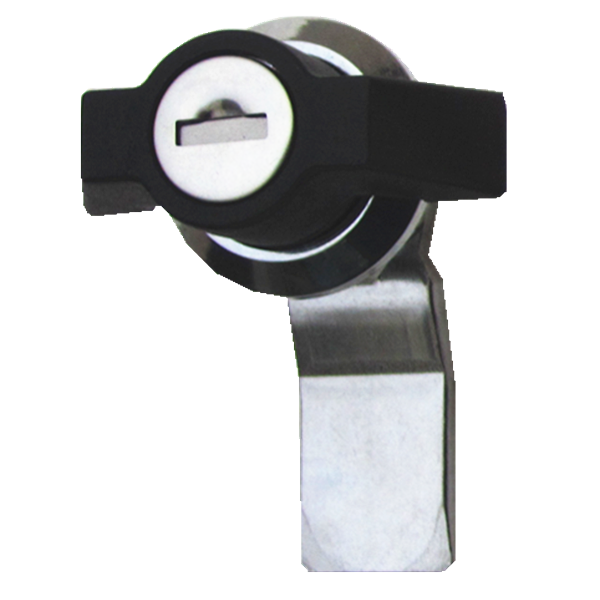

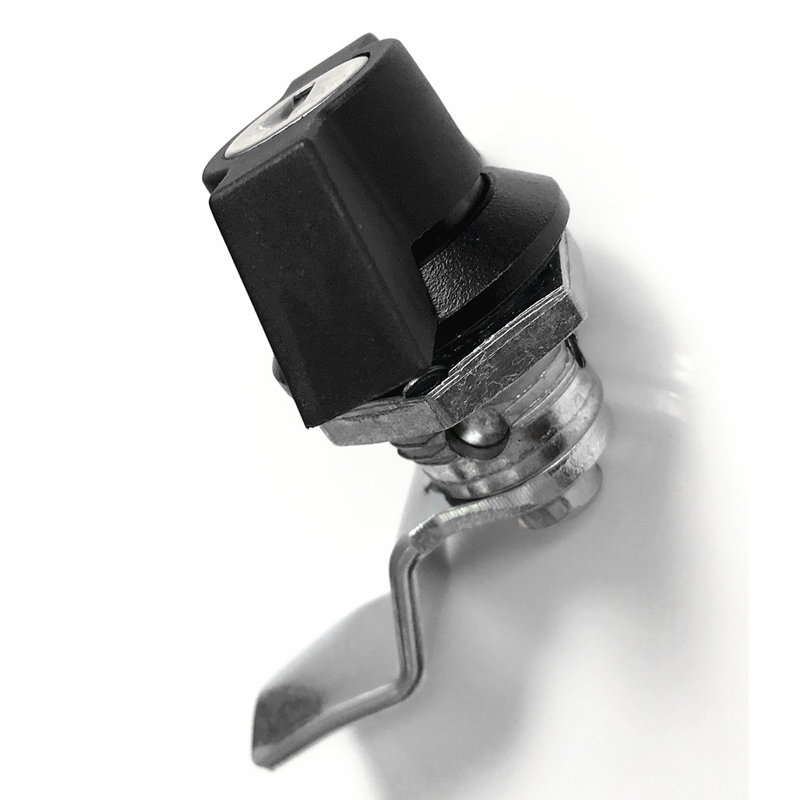

Integrated Security: The lock includes a K160 key as standard, offering reliable access control and tamper resistance.

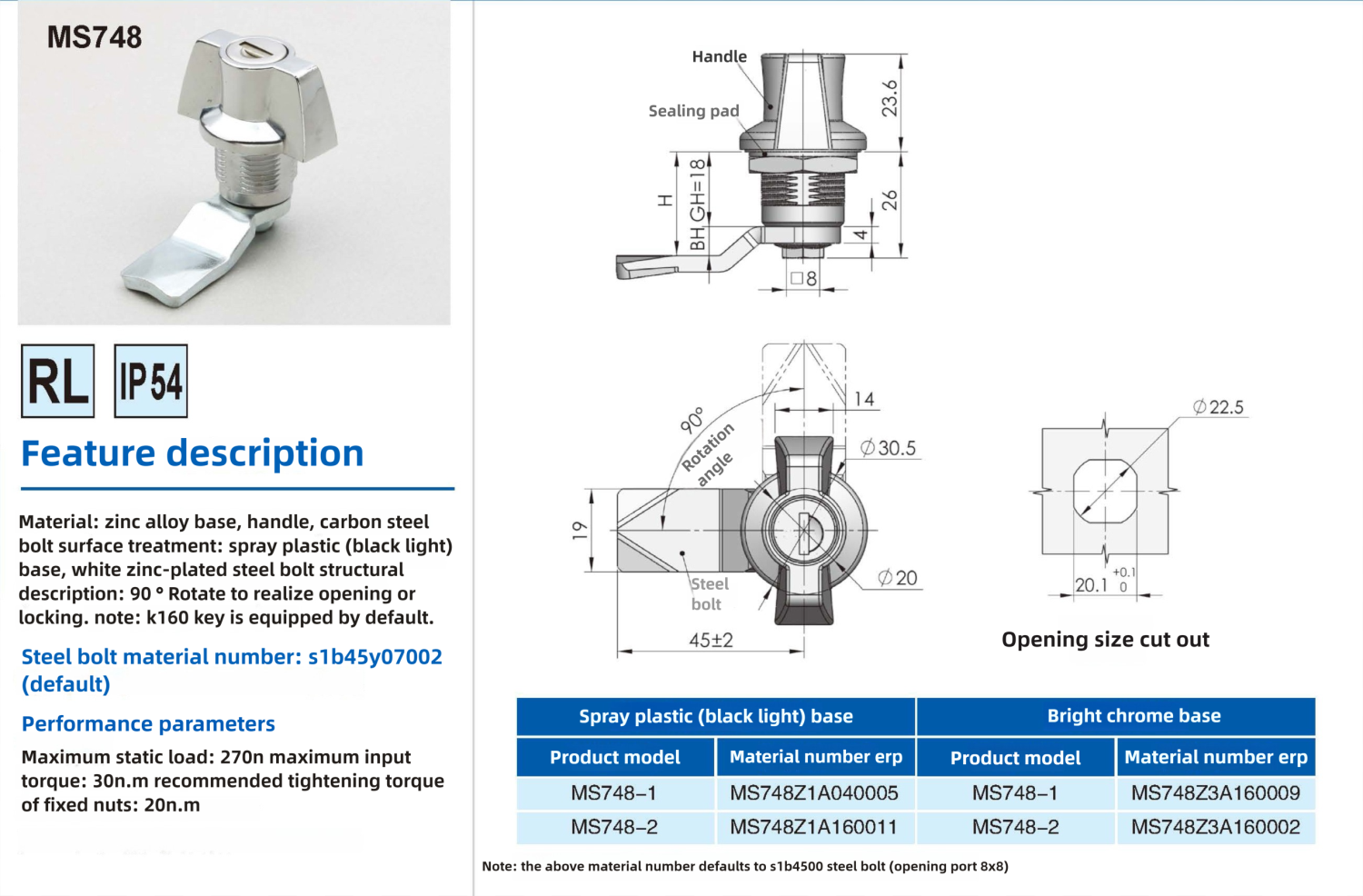

3. Technical Specifications
Load Capacity: With a maximum static load of 270N, the MS748 Cabinet Cam Lock withstands high-force applications, making it ideal for heavy-duty industrial cabinets or telecommunications enclosures.
Installation Stability: The recommended tightening torque of 30N·m for fixed nuts ensures secure mounting without compromising structural integrity.
Customization: The default bolt (material number: s1b45y07002) can be tailored to specific requirements, such as alternative bolt sizes or finishes.
4. Applications
The MS748 Cabinet Cam Lock is widely used in:
Industrial Cabinets: Protects machinery controls and sensitive equipment.
Outdoor Enclosures: Resists moisture, UV exposure, and temperature fluctuations.
Office and Commercial Storage: Secures filing cabinets and server racks with a sleek, professional appearance.
5. Compliance and Traceability

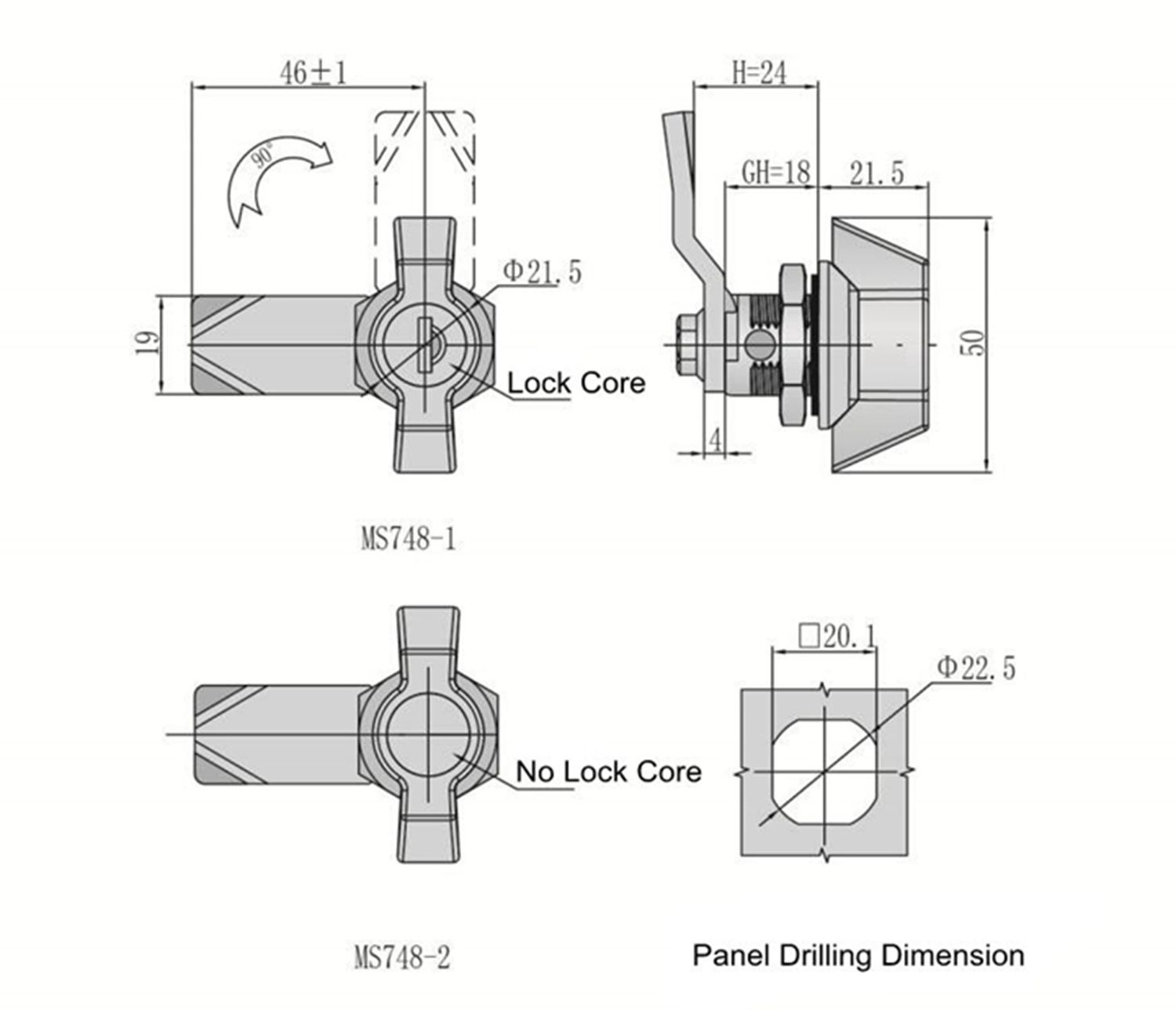

The lock adheres to stringent quality standards, with material compliance (RoHS) and ERP-specific model codes (MS748-1 and MS748-2) for easy traceability and integration into supply chains.
Why Choose the MS748 Cabinet Cam Lock?
Balancing strength, adaptability, and ease of use, the MS748 Cabinet Cam Lock is a cost-effective solution for industries prioritizing security and durability. Its dual finish options, high load capacity, and compliance with industrial standards make it a trusted choice for engineers and facility managers worldwide.
For technical drawings, bulk orders, or customization inquiries, contact our team to learn how the MS748 Cabinet Cam Lock can enhance your security systems.
