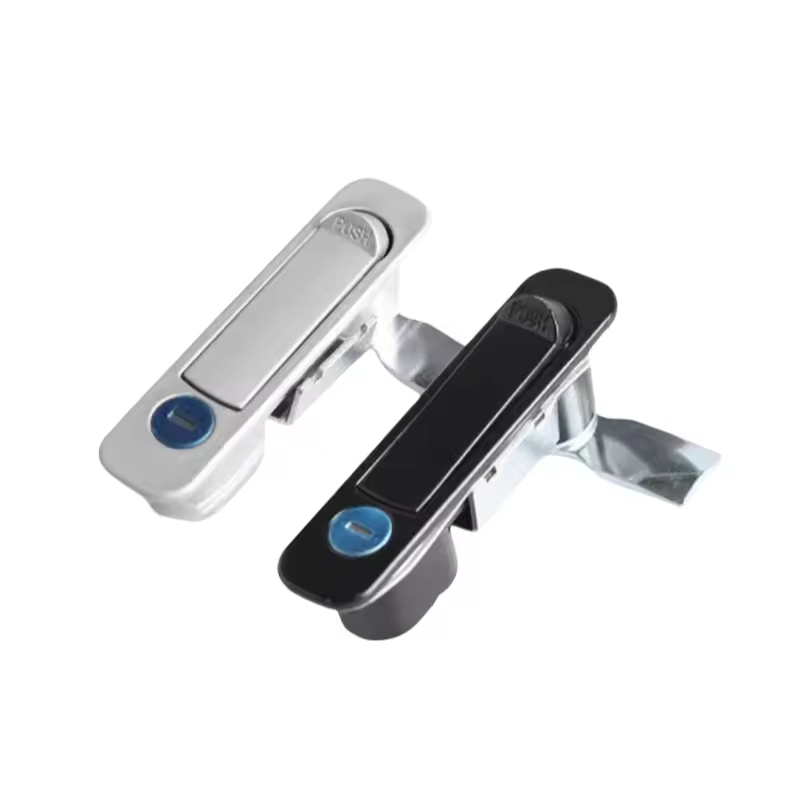

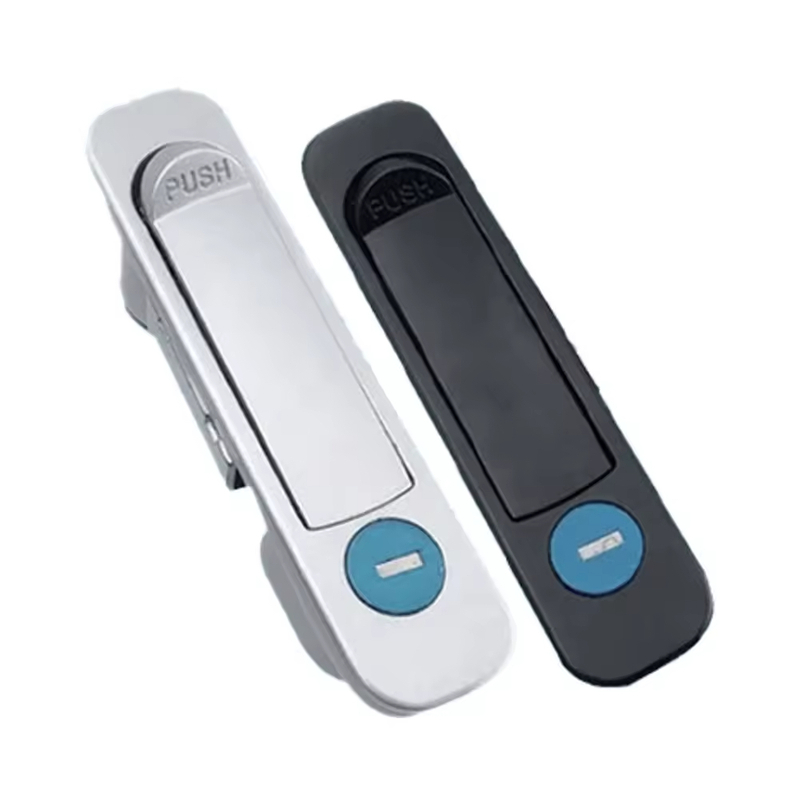

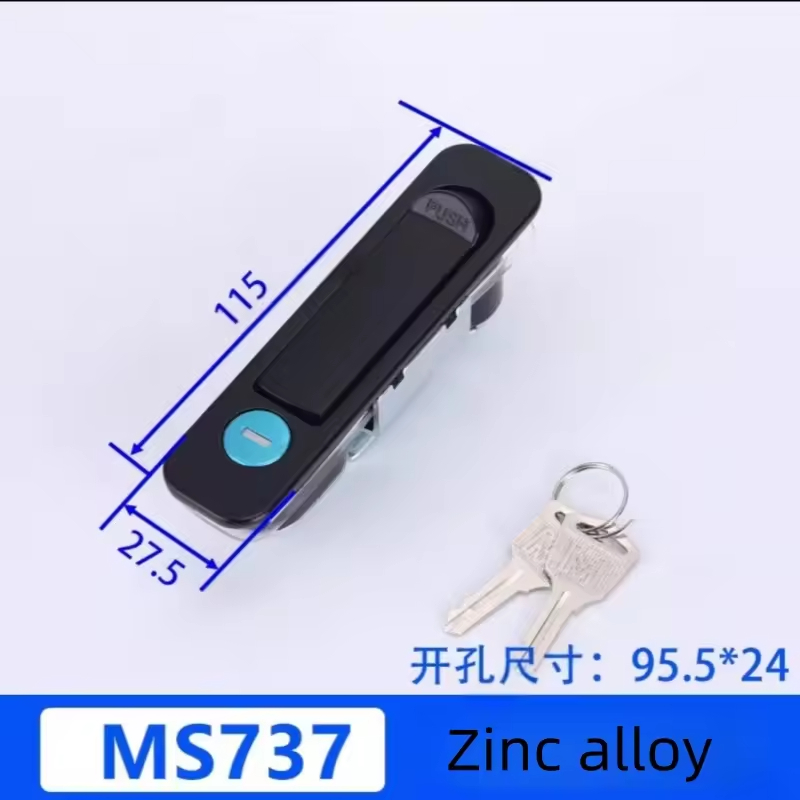

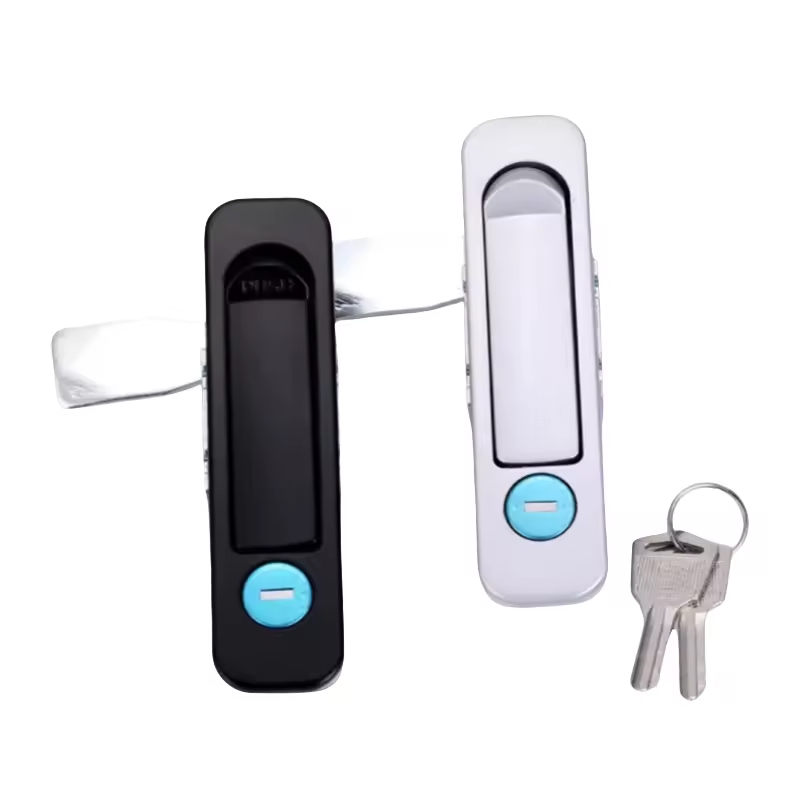

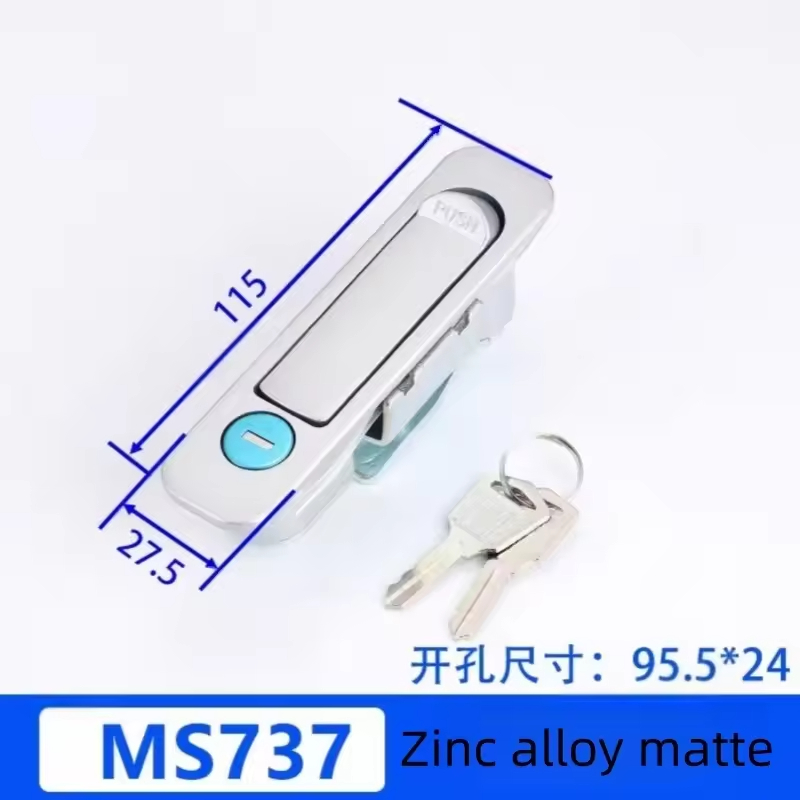

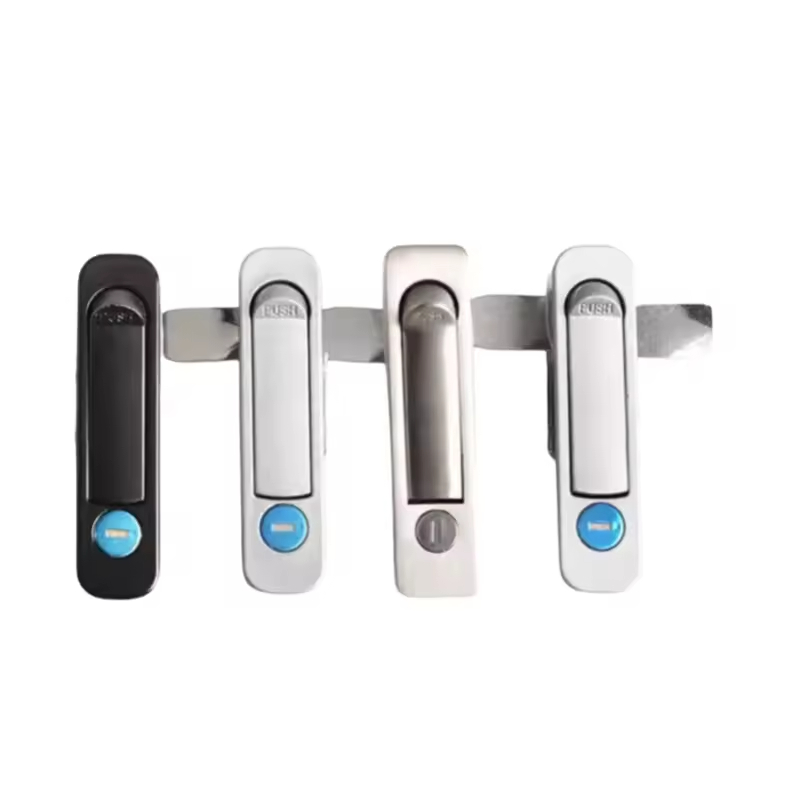

MS737 Zinc Alloy Push Button Plane Lock

The MS737 Zinc Alloy Push Button Plane Lock is a high-performance locking solution engineered for distribution boxes, electrical cabinets, and other industrial enclosures, combining durable construction with user-friendly functionality to meet the rigorous demands of modern industrial environments.

Core Functions & Operational Advantages

This lock features a quick-release push-button mechanism that enables rapid locking and unlocking, significantly streamlining access for routine maintenance and inspections. Its most versatile attribute is the interchangeable bolt system: by simply replacing the bolt, it can switch between single-point and three-point locking functions, adapting to a wide range of enclosure security requirements. The bolt also supports bending to accommodate different stop heights, ensuring a perfect fit for various distribution box models. With a 180° rotatable bolt, it can be configured for both left and right-opening enclosures, making it compatible with diverse installation scenarios.

Robust Construction & Material Excellence

Constructed from premium materials, the MS737 ensures long-term reliability in demanding environments:

The base, handle, and lock core are made of zinc alloy, providing excellent corrosion resistance and structural integrity, while the pressure plate and bolt are crafted from carbon steel, further enhancing durability.

The surface treatment is meticulously designed: the base and handle feature a nano-matte finish that resists fingerprints and wear, while the pressure plate and bolt are treated with white zinc plating to protect against moisture and oxidation.

It can withstand a handle tensile force of up to 340N, a handle torque of 11N.m, and a maximum static load of 270N, ensuring stable performance under heavy-duty use.

Market Demand & Application Value

In the expanding electrical and industrial sectors, the demand for secure, adaptable, and easy-to-maintain enclosure locks is continuously growing. The MS737 addresses key industry needs:

‌Security Flexibility‌: The interchangeable bolt system allows facilities to adjust locking modes based on the sensitivity of the equipment inside, preventing unauthorized access and reducing the risk of accidents and equipment tampering.

‌Operational Efficiency‌: The quick-operating push-button and adaptable installation design minimize downtime during maintenance, boosting productivity for facility managers and technicians.

‌Cost-Effectiveness‌: Its durable construction and universal compatibility reduce the need for frequent replacements and custom fittings, lowering long-term maintenance costs.

Ideal for use in data centers, industrial plants, commercial buildings, and outdoor electrical enclosures, the MS737 Zinc Alloy Push Button Plane Lock is a trusted choice for professionals who prioritize safety, adaptability, and ease of use in their electrical infrastructure management.

For more information or to request a quote, please contact our sales team today.
