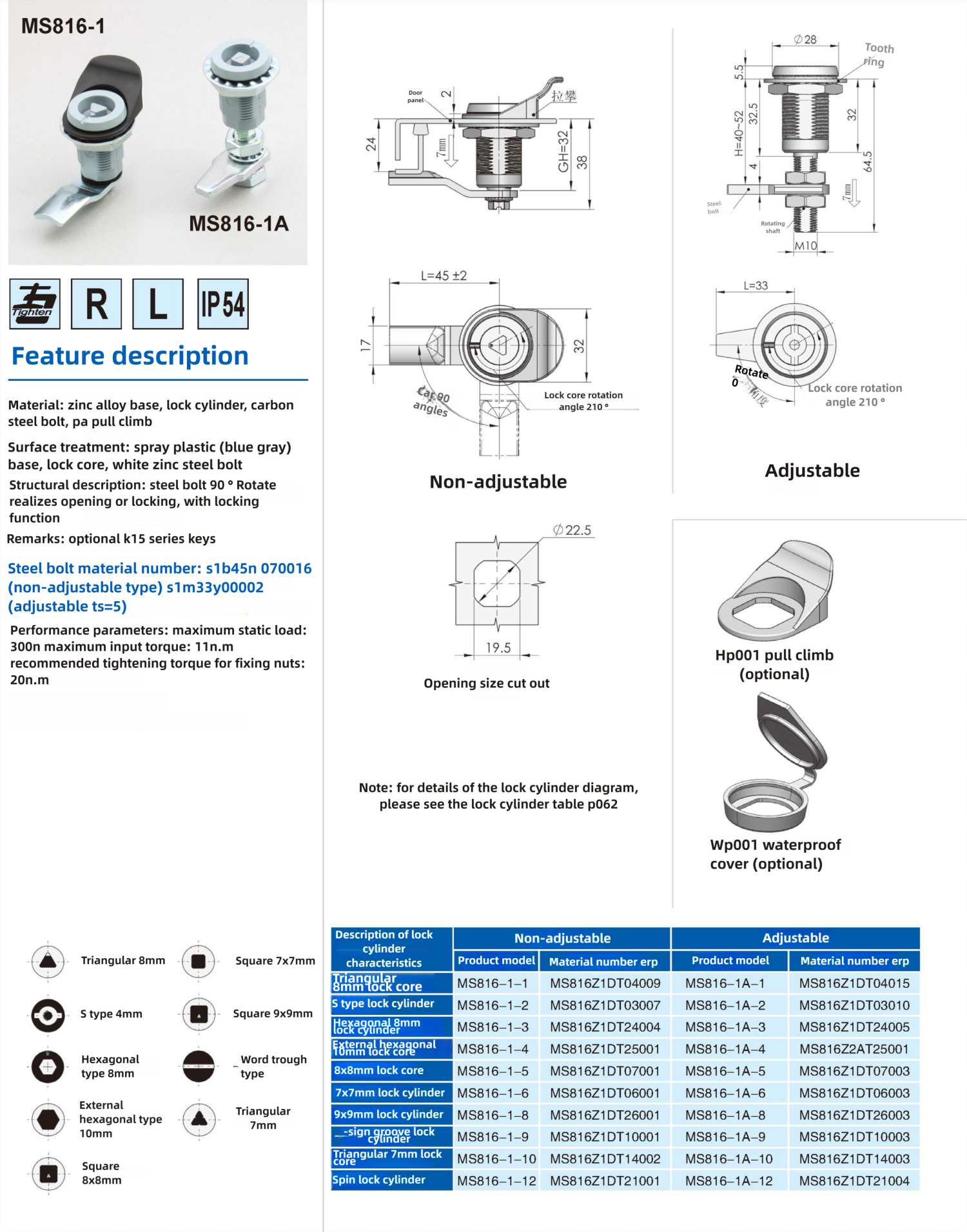

The non-adjustable type features a 90° rotating shaft with a steel bolt material number S1B45N 070016, while the adjustable type, with a steel bolt material number S1M33Y00002, allows for an adjustable throw of 5mm. This adjustability ensures precise fitting and operation in various installations.
Below is an enhanced and structured summary of their features, specifications, and applications:
1. Core Design & Material Excellence
Zinc Alloy Construction: The base and critical components of the MS816 Cam Lock Fittings are crafted from high-grade zinc alloy, providing exceptional resistance to corrosion, wear, and mechanical stress.
Lock Cylinder & Core: Reinforced with hardened steel, the lock cylinder supports a maximum static load of 300N and input torque up to 11Nm, ensuring long-term reliability under demanding conditions.
Bolt Options: Available in adjustable and non-adjustable variants:
Non-Adjustable: 90° rotating shaft with steel bolt (Material No. S1B45N 070016).
Adjustable: 5mm adjustable throw for flexible installation (Material No. S1M33Y00002).
2. Technical Specifications
IP54 Protection: The MS816 Cam Lock Fittings are rated IP54, offering dust and water-splash resistance, ideal for outdoor or high-humidity environments.
Torque Stability: Recommended tightening torque for fixing nuts is 20N·m, ensuring secure mounting without deformation.
Optional Accessories:
Waterproof Cover (WP001): Enhances moisture protection for extended outdoor use.
Pull-Up Clamp (HP001): Simplifies installation and removal in confined spaces.

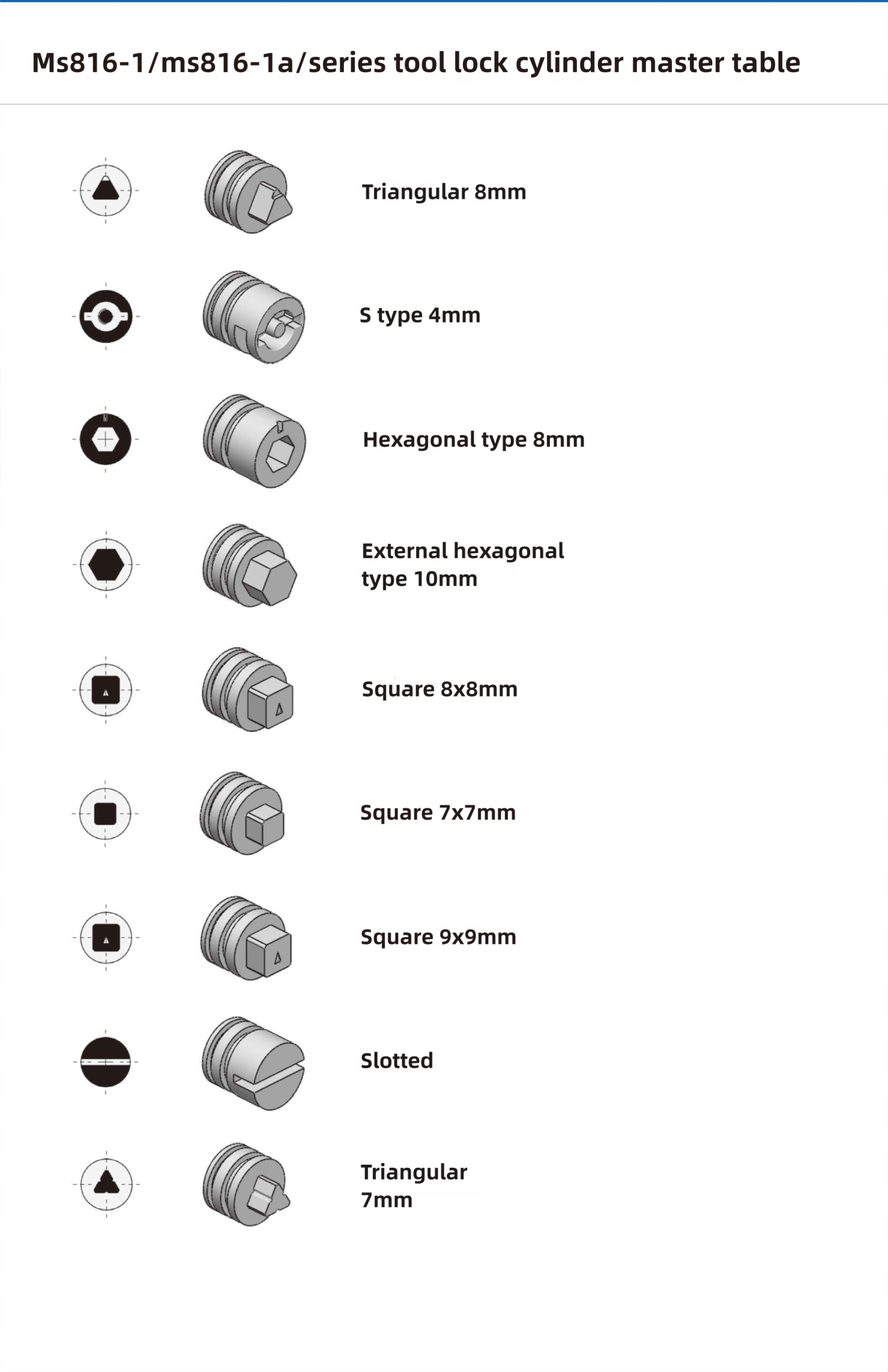

3. Versatile Lock Cylinder Types
The MS816 Cam Lock Fittings support multiple key and tool configurations, including:
Triangular (7mm/8mm): Compact design for lightweight cabinets and panels.
Square (7x7mm, 8x8mm, 9x9mm): High-torque compatibility for industrial equipment.
Hexagonal (8mm): Universal fit for standard applications.
S-Type & Slot-Type: Specialized profiles for anti-tamper and niche mechanisms.
4. Compliance & Applications
Certifications: Compliant with RoHS and ISO standards, ensuring environmental and safety adherence.
Ideal Use Cases:
Industrial Machinery: Secures control panels, tool cabinets, and access points.
Telecom/Data Enclosures: IP54 rating protects against dust and humidity in server racks.

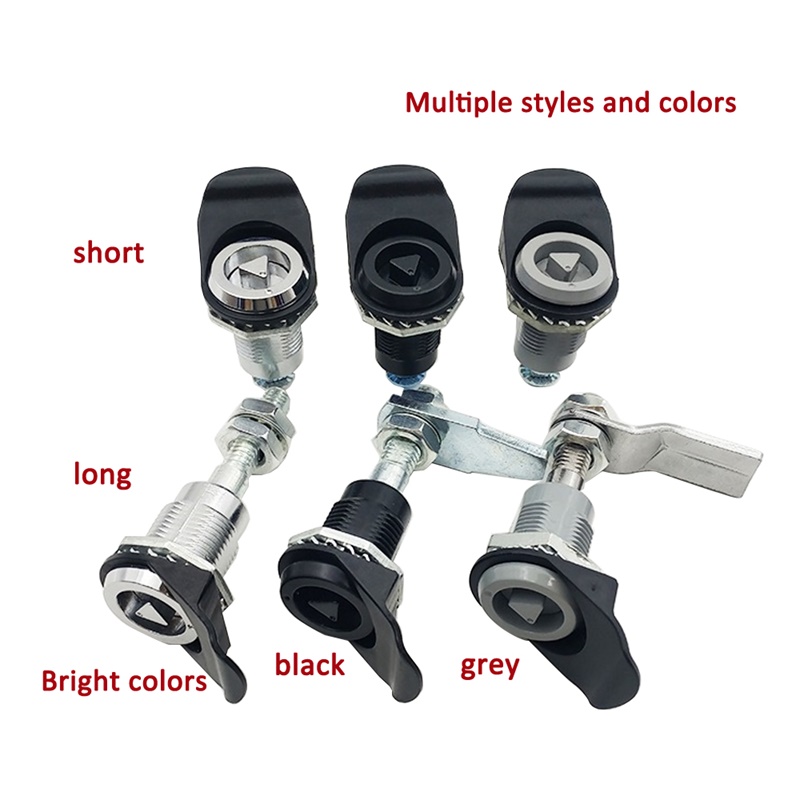

Commercial Furniture: Sleek finishes (e.g., chrome or black plastic) blend with modern interiors.
5. Why Choose MS816 Cam Lock Fittings?
Durability: Zinc alloy and hardened steel components withstand harsh conditions.
Customization: Multiple cylinder types and adjustable throws adapt to unique requirements.
Ease of Installation: Pre-drilled holes and ergonomic clamps simplify integration.
For technical drawings, bulk orders, or customization inquiries, contact our team to learn how the Cam Lock can enhance your security systems.
