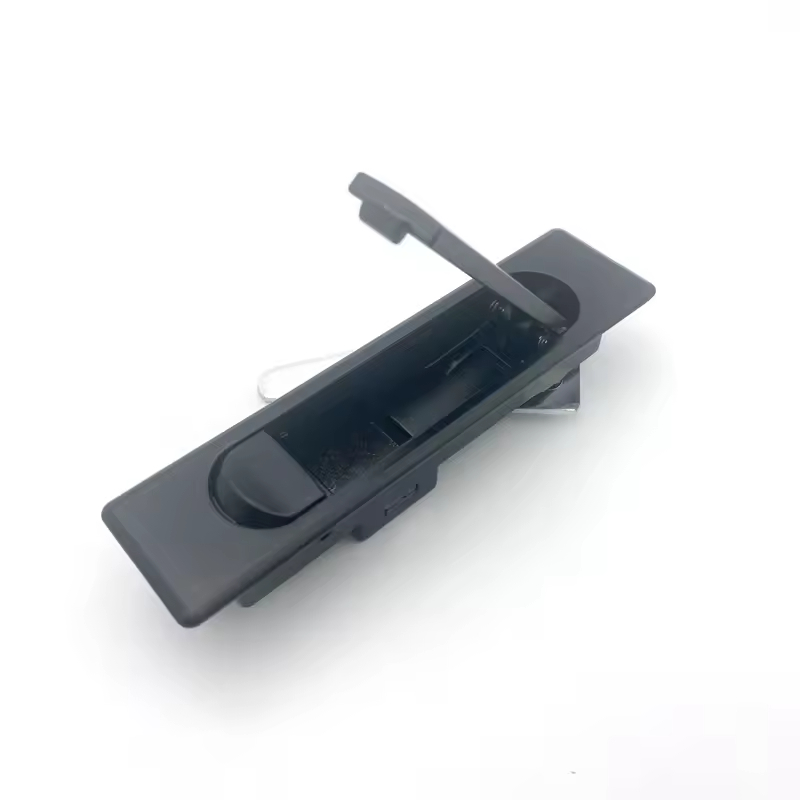

MS730 Electrical Plane Lock for Distribution Box: A Reliable Security Solution for Electrical Enclosures
Product Overview

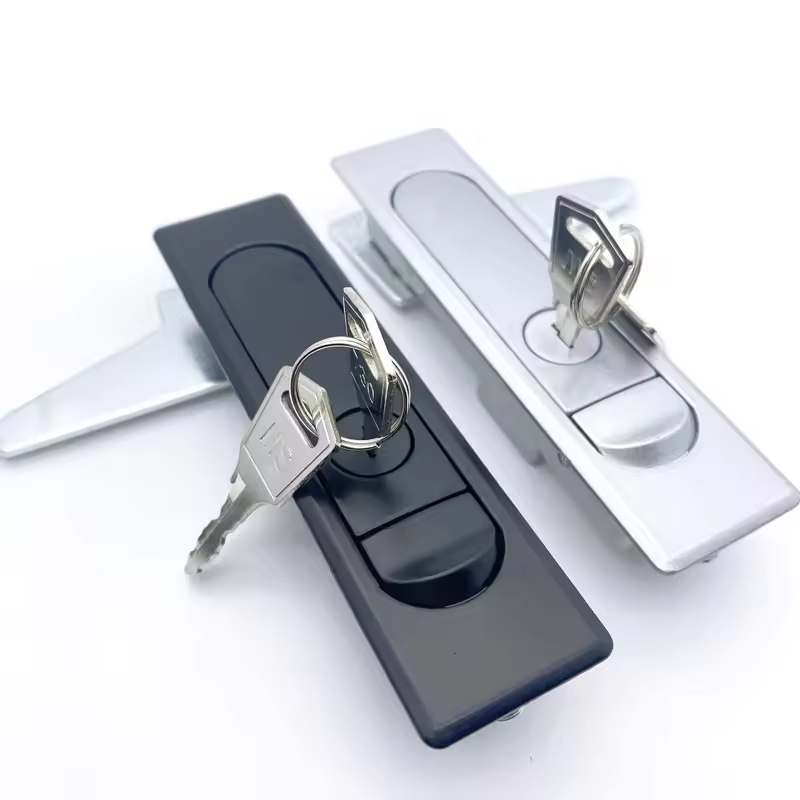

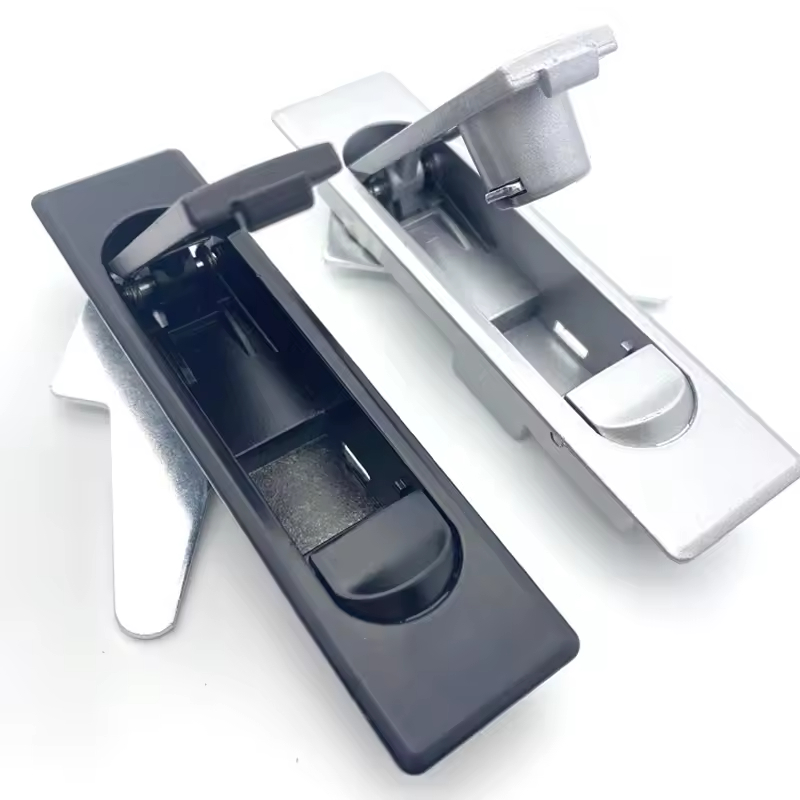

The MS730 Electrical Plane Lock is a high-performance locking system specifically engineered for distribution boxes, electrical cabinets, and other industrial enclosures. It is available in two finish options: a durable black painted version and a sophisticated nano-matte finish, catering to diverse aesthetic and functional requirements in industrial environments.
Core Features & Functions
1. Versatile Installation & Operation

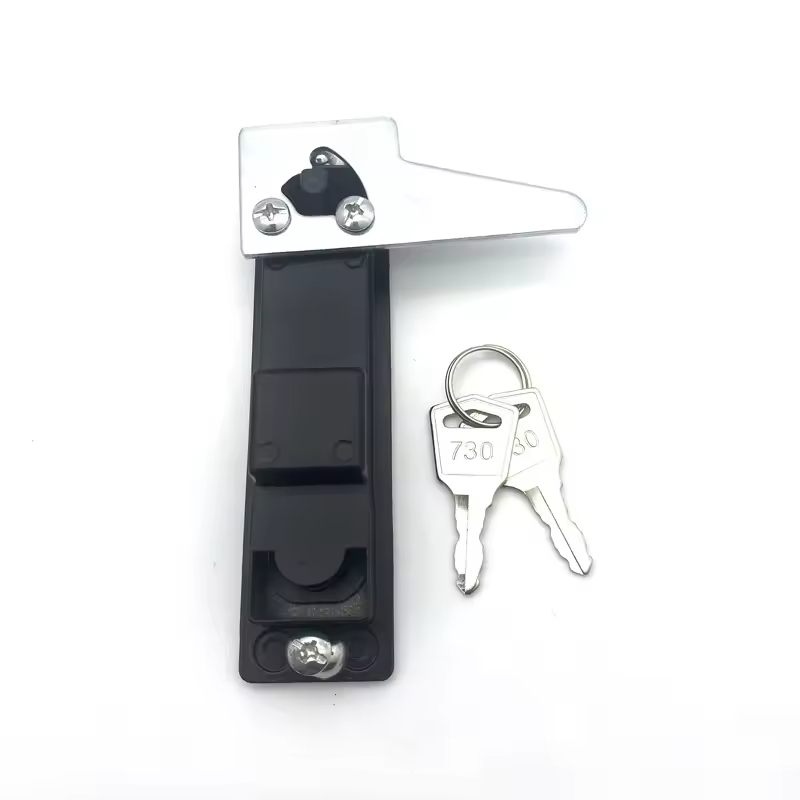

The lock's standout feature is its 180° rotatable steel bolt, which supports both left and right-opening configurations, making it compatible with a wide range of enclosure designs. It also allows for bolt bending to accommodate different stop heights, ensuring a perfect fit for various distribution box models. The quick-release lever mechanism enables rapid locking and unlocking, streamlining access for maintenance and inspections.
2. Robust Construction
Materials: The base, lock body, and button are made of zinc alloy, offering excellent corrosion resistance and structural integrity. The steel bolt is constructed from carbon steel and treated with a white zinc plating process, further enhancing its durability against moisture and wear.
Performance: It can withstand a handle tensile force of up to 600N and a maximum static load of 350N, ensuring reliable performance under heavy-duty use.
3. User-Friendly Design

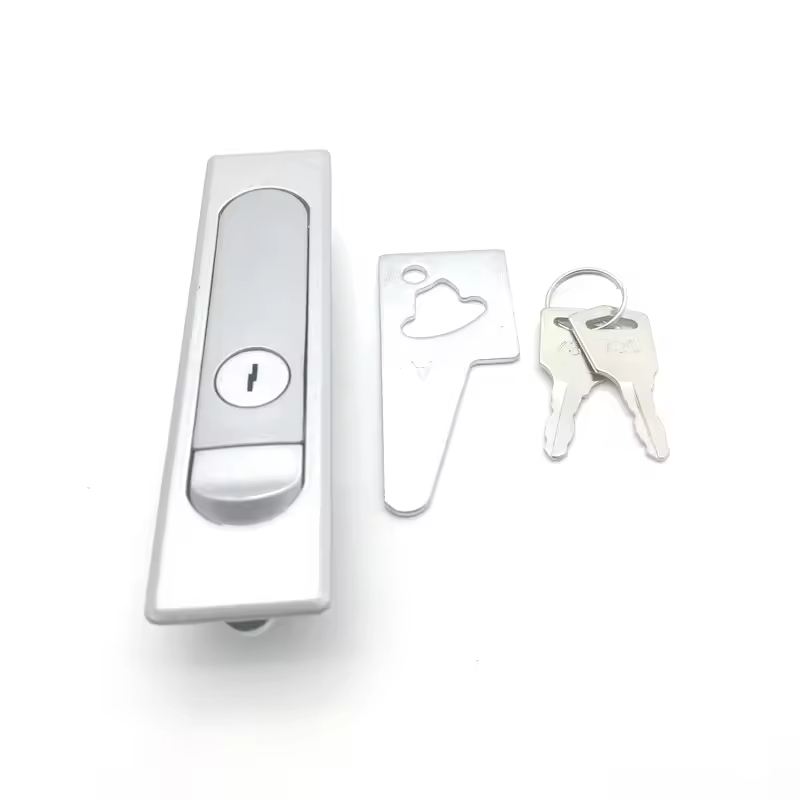

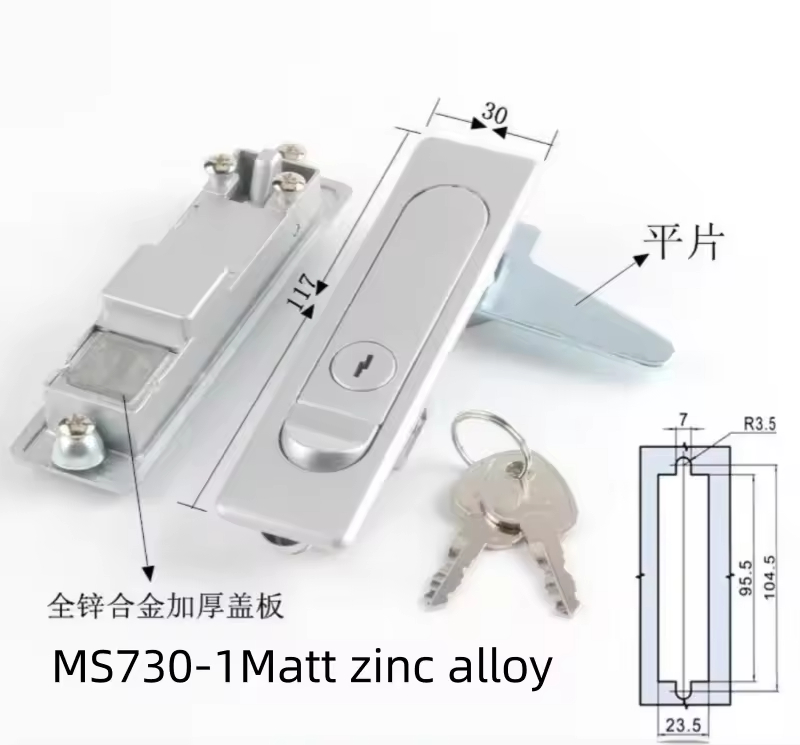

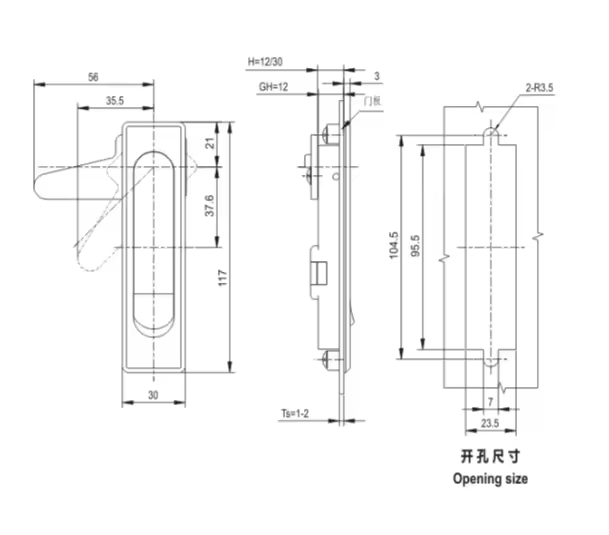

The lock comes with a default K200 key, providing a secure and standardized access solution. Its compact dimensions (overall length 117mm, base width 30mm) allow for seamless integration into most standard distribution boxes without compromising internal space.
Market Demand & Application Value
In the growing electrical and industrial sectors, the demand for secure, reliable, and easy-to-maintain enclosure locks is continuously rising. The MS730 Electrical Plane Lock addresses key industry needs:
Security Enhancement: It prevents unauthorized access to electrical distribution systems, reducing the risk of accidents, equipment tampering, and data breaches in critical infrastructure.
Efficiency Improvement: The quick-operating lever and adaptable installation design minimize downtime during maintenance, boosting operational efficiency for facility managers and technicians.
Cost-Effectiveness: Its durable construction and universal compatibility reduce the need for frequent replacements and custom fittings, lowering long-term maintenance costs.
Ideal for use in data centers, industrial plants, commercial buildings, and outdoor electrical enclosures, the MS730 Electrical Plane Lock is a trusted choice for professionals who prioritize safety, reliability, and ease of use in their electrical infrastructure management.
For more information or to request a quote, please contact our sales team today.
